1. Introduction of self loading concrete mixer

Self-loading concrete mixer is a multi-function concrete production equipment. It can load, mix materials and then deliver concrete to the job site. It combines the function of wheel loader, concrete batching plant and concrete transit mixer. It is very suitable for projects that we need to change the job sites from time to time.

Currently, we have 1.8m3, 2.6m3, 3.2m3, 4m3 and 6.5 m3 self-loading concrete mixer. Welcome to contact us for details and quotations.

2. Specification of self loading concrete mixer

Model

SLM1.2

SLM2

SLM2.6

SLM3.5

SLM4

Drum volume (L)

2680

3000

3580

4740

6000

Capacity (m3/batch)

1.2

2

2.6

3.5

4

Productivity (m3/h)

7.2

8

10.4

14

16

Diesel Engine Brand

Yuchai

Yuchai

Yuchai

Yuchai

Yuchai

Diesel Engine Power (kw)

55

78

78

85

85

Drum rotating angle (°)

270

180

270

270

290

Max. Travelling Speed (km/h)

30

30

30

30

35

Max. Grade ability (°)

30

30

30

30

45

Air conditioner

1 set

1 set

1 set

1 set

1 set

Aggregate weighing system

1 set

1 set

1 set

1 set

1 set

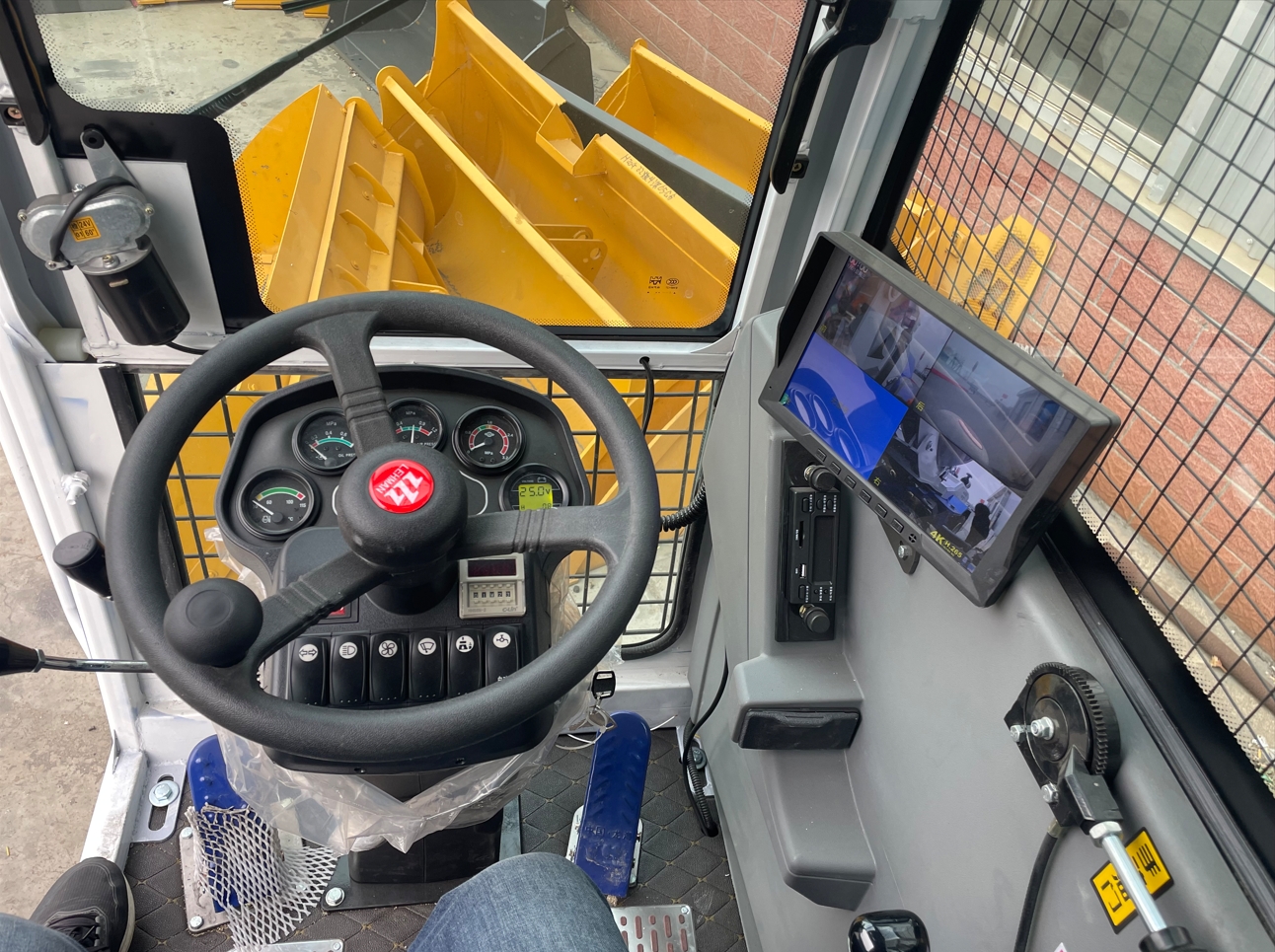

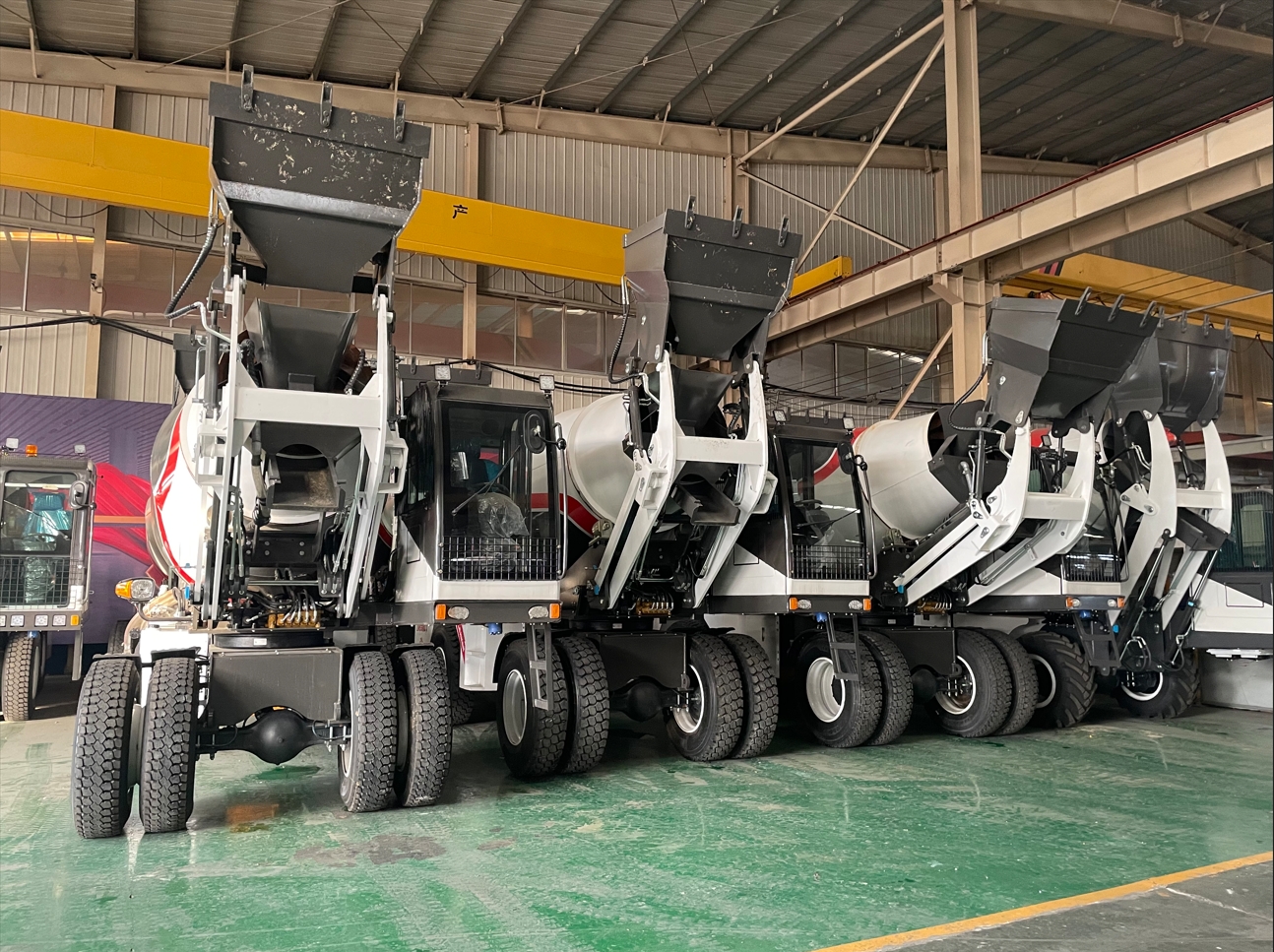

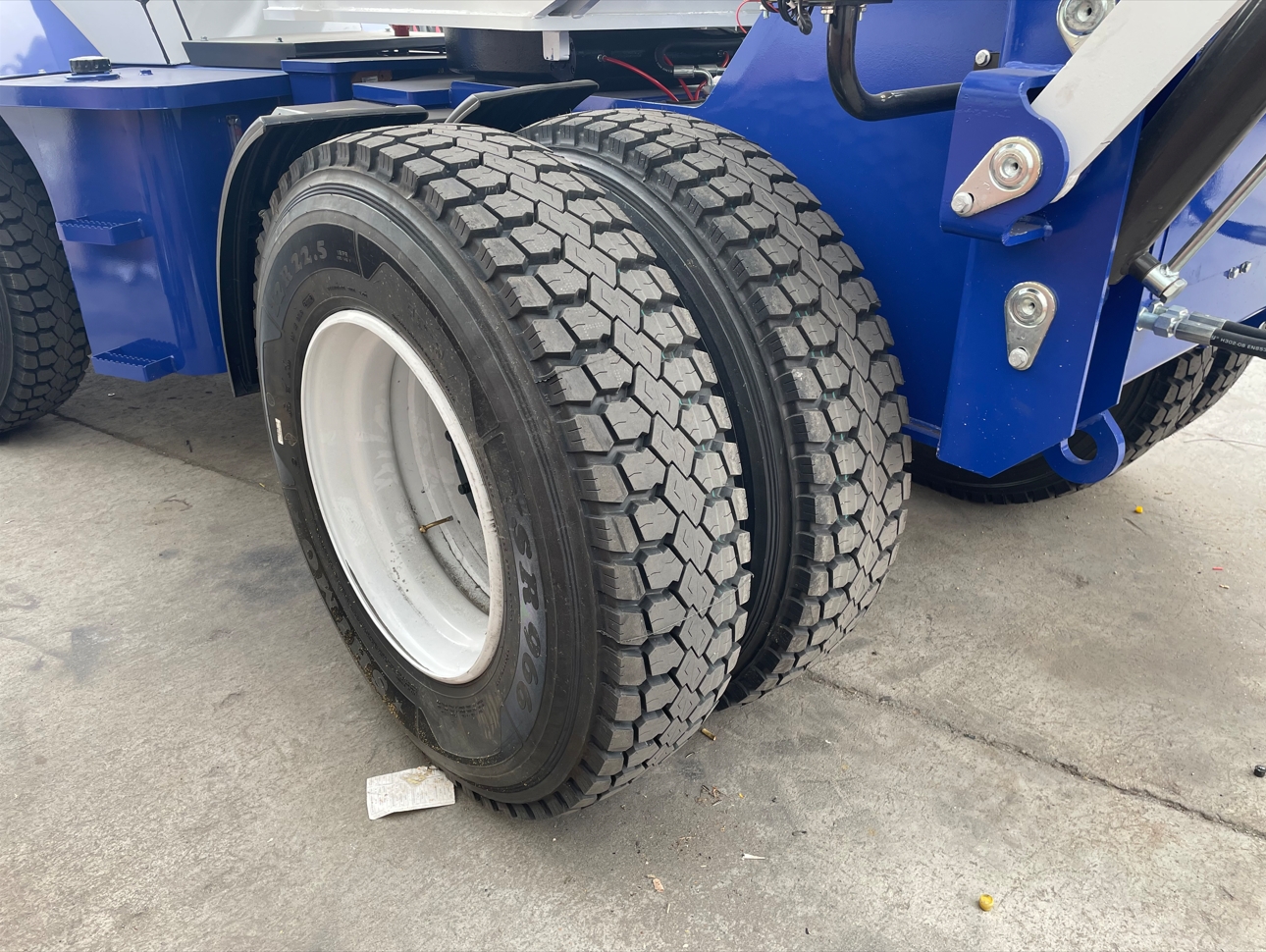

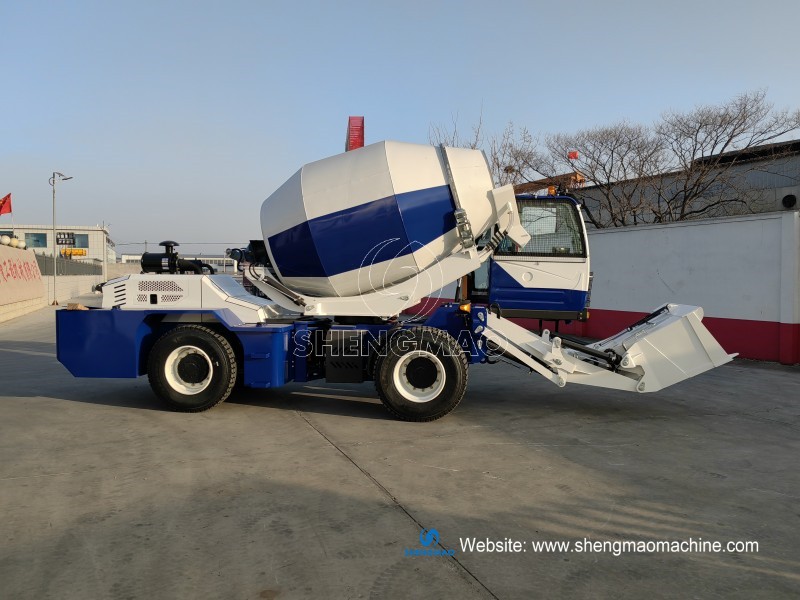

3. Pictures of self loading concrete mixer


4. International cases

1) 4m3 self loading mixer truck to Russia

5. Working video of our self loading concrete mixer
