1. Features of NYHZS mobile concrete batching plant :

1) It's no need to make concrete founcation, easy to install and move to other job sites;

2) the concrete mixer can be twin-shaft mixer, pan mixer and planetary mixer;

3) the cement silo is horizontal type, no need foundation;

4) the concrete discharging height is 1m; we need to use a belt conveyor to increase the height to enable concrete transit mixer to collect concrete.

---

2. Specifications of NYHZS mobile concrete batching plant:

Model	NYHZS25	NYHZS35	NYHZS50	NYHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1	1	1	1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	61	76	85	95
Total weight)	13	15	19	22

---

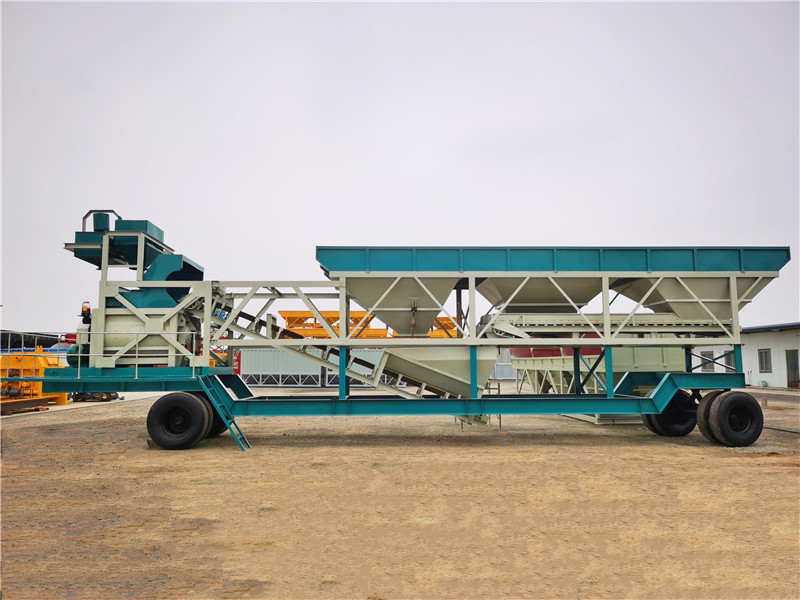

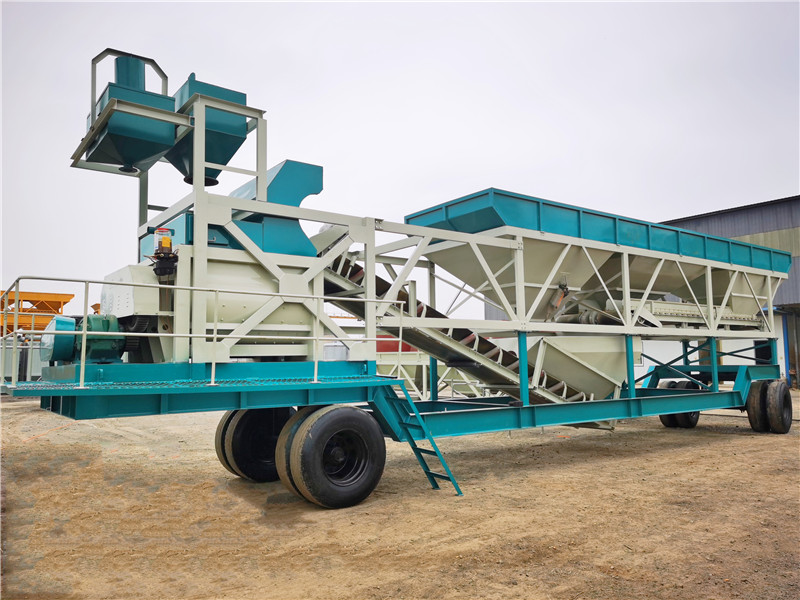

3. Pictures of NYHZS mobile concrete batching plant:
