1. Brief introduction of our mobile tower crane
Tower crane is widely used in building construction projects. It is mainly used to handle construction materials vertically and horizontally.
Traditional tower crane needs huge concrete foundation. It is usually used in high-rise building project to handle large amount of construction materials efficiently within a large working range.
But there are also huge demands for portable tower cranes in developing countries. There are a lot of low-rise building projects where they just need tower crane with relatively lower handling capacity, efficiency and budget. To meet the demands of market, we developed our mobile tower crane.
2. Specification of our mobile tower crane
1) SMMTC-1
|
Max. Lifting load |
1ton at 10m working radius |
|
Max.working height |
17m |
|
Max.working radius |
20m |
|
Total power |
11.4kw |
|
Outrigger span |
3.5*3.5(m), lead screw outriggers |
|
Max. towing speed |
15km/h |
|
Total weight |
14500kg |
|
Balance weight |
Fixed, appro 6000kg |
|
Container need |
1*40HQ |
|
Power supply |
380v 50hz 3p (Diesel generator or transformer can be used if your power is different) |
2) SMMTC-2
|
Max. Lifting load |
2 ton at 10m working radius |
|
Max.working height |
25m |
|
Max.working radius |
27m |
|
Total power |
23.1kw |
|
Outrigger span |
4.2*4.2(m), lead screw outriggers |
|
Max. towing speed |
15km/h |
|
Total weight |
26000kg |
|
Balance weight |
movable, 3 boxes |
|
Container need |
1*45HC |
|
Power supply |
380v 50hz 3p (Diesel generator or transformer can be used if your power is different) |
3) SMMTC-3
|
Max. Lifting load |
3 ton at 10m working radius |
|
Max.working height |
25m |
|
Max.working radius |
27m |
|
Total power |
23.1kw |
|
Outrigger span |
4.2*4.2(m), lead screw outriggers |
|
Max. towing speed |
15km/h |
|
Total weight |
32000kg |
|
Balance weight |
movable, 5 boxes |
|
Container need |
1*45HC |
|
Power supply |
380v 50hz 3p (Diesel generator or transformer can be used if your power is different) |
4) SMMTC-4
|
Max. Lifting load |
4 ton at 10m working radius |
|
Max.working height |
22m |
|
Max.working radius |
27m |
|
Total power |
23.1kw |
|
Outrigger span |
4.2*4.2(m), hydraulic outriggers |
|
Max. towing speed |
15km/h |
|
Total weight |
32000kg |
|
Balance weight |
movable, 6 boxes |
|
Container need |
1*45HC |
|
Power supply |
380v 50hz 3p (Diesel generator or transformer can be used if your power is different) |

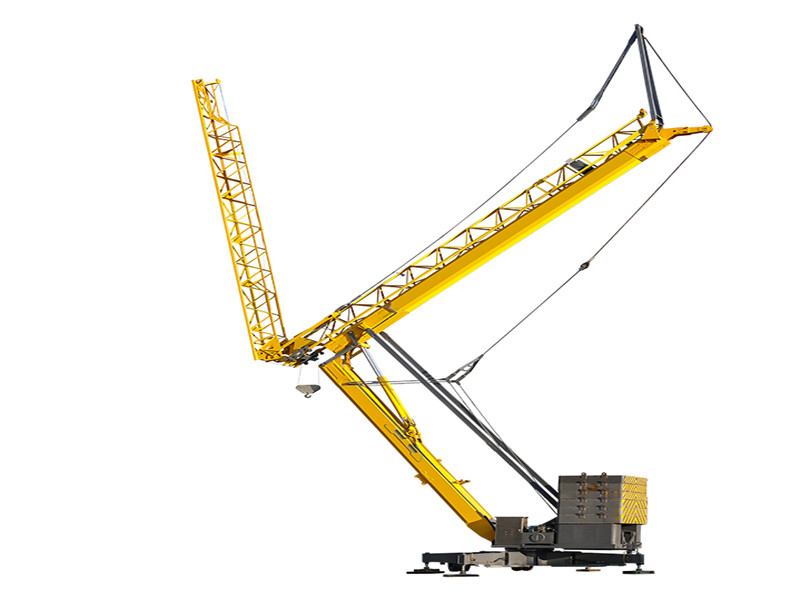

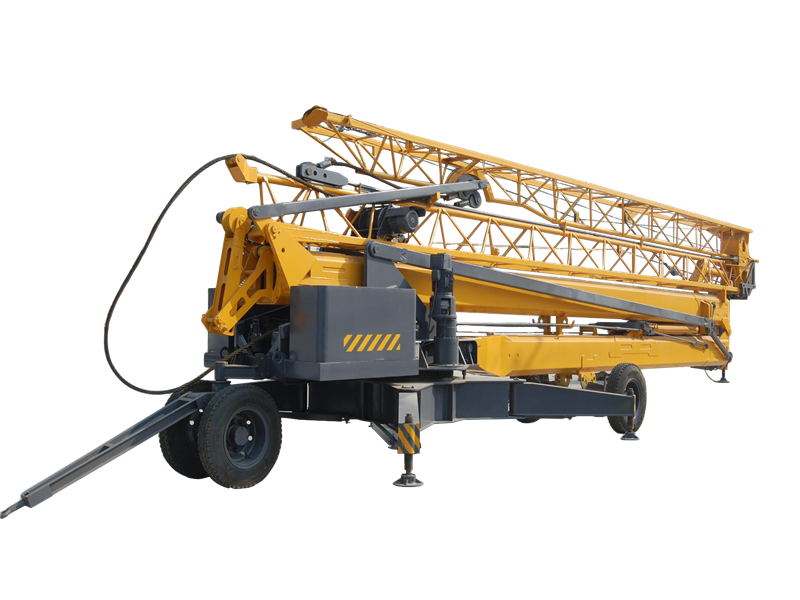

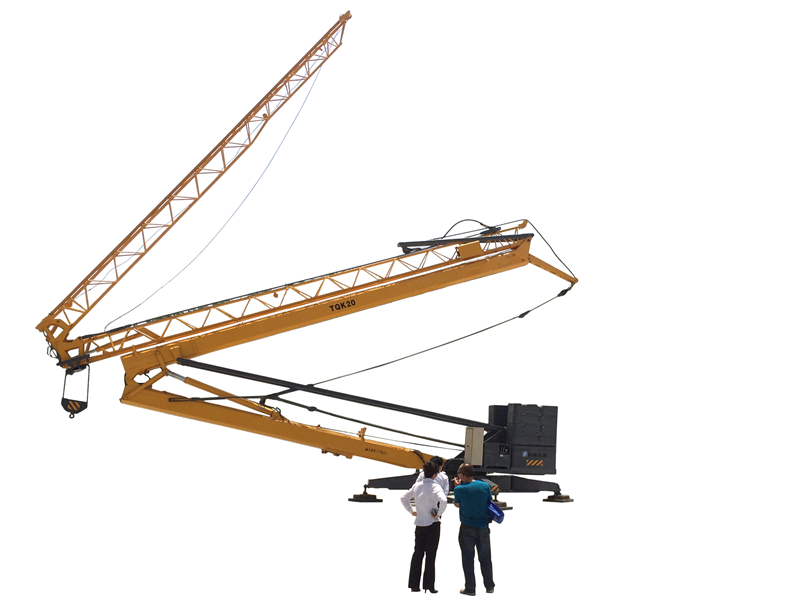

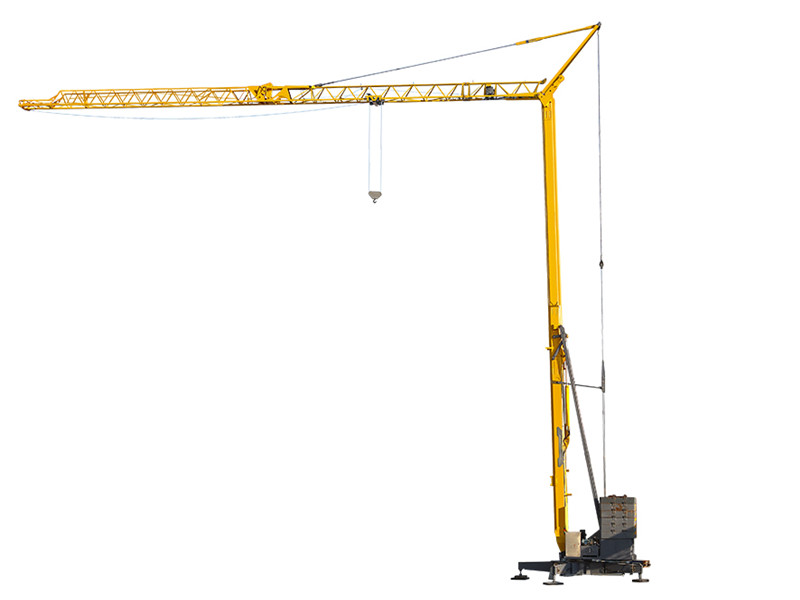

3. Pictures of our mobile tower crane
4. Vedio of our mobile tower crane
