1. The Smart Site Solution for Efficient Concrete Pumping

Our Mini Boom Pump series redefines on-site concrete placement with unmatched flexibility  and cost-efficiency. Designed exclusively for intra-site mobility, these compact units operate solely within construction zones and cannot be driven on public roads.

Core Advantages - Purpose-Built Chassis
Features a dedicated simplified chassis (not truck-based platforms like HOWO/Shaanxi/Dongfeng), slashing costs while ensuring rugged site maneuverability.
Result:  lower price vs. road-legal pump trucks.

Optimized Logistics
All 4 models (14m, 18m, 21m, 25m boom reach) fit seamlessly into 40HQ containers, saving shipping cost

Plug-and-Pump Agility
Mobile deployment + integrated pipeline system = start pumping concrete anywhere on-site within minutes.
2. Components of concrete pump
1) Pumping Engine: Standard Weichai 82kW (globally serviced) | Optional Cummins upgrade
2) Hydraulic system. It is the key part of concrete pump, we use Kawasaki (Korea) pumps for precision control
3) Cocnrete hopper. there is a screen on top of the concrete hopper to eliminate oversize stone;
4) Concrete delivery pipe.
5) Control system. Our concrete pump is equipped with remote control, so it is very convenient for the operators to control it. equipped with Schneider (France) relays + Siemens/Omron (Japan) PLC units
6) Compliance:  CE certification; EPA/EU emission standards supported (Base: Non-Road Stage II, upgradable)

3. Specification of concrete pump

Model SMBCP14 SMBCP18 SMBCP21 SMBCP25
Max Vertical Reach(m) 15 17.9 19.9 25.2
Max Placing radius(m) 13 15.4 17.5 22.7
Main Boom Length(m) 7 6.66 7 8.5
2nd Section Boom Length(m) 6 5.55 5.5 7.5
3rd Section Boom Length(m) 0 3.35 5 7
Slewing Angle(°) 270 270 270 270
Boom Control System wireless remote control
Theoretical Max Output(m³/h) 40 56 56 56
Max Pumping Pressure(Mpa) 10 8 8 8
Rated Pumping Power(kw) weichai 82kw weichai 82kw weichai 82kw weichai 82kw
Max Aggregate Size(mm) 30 40 40 40
Traveling Diesel Engine yunnei 66kw yunnei 66kw yunnei 66kw yunnei 66kw
Tyres 6*8.25-16 6*8.25-16 6*8.25-16 6*8.25-16
Steering Hydraulic Power Steering (HPS)
Braking system Spring Brake Actuator
Max travel Speed(km/h) 40 40 40 40

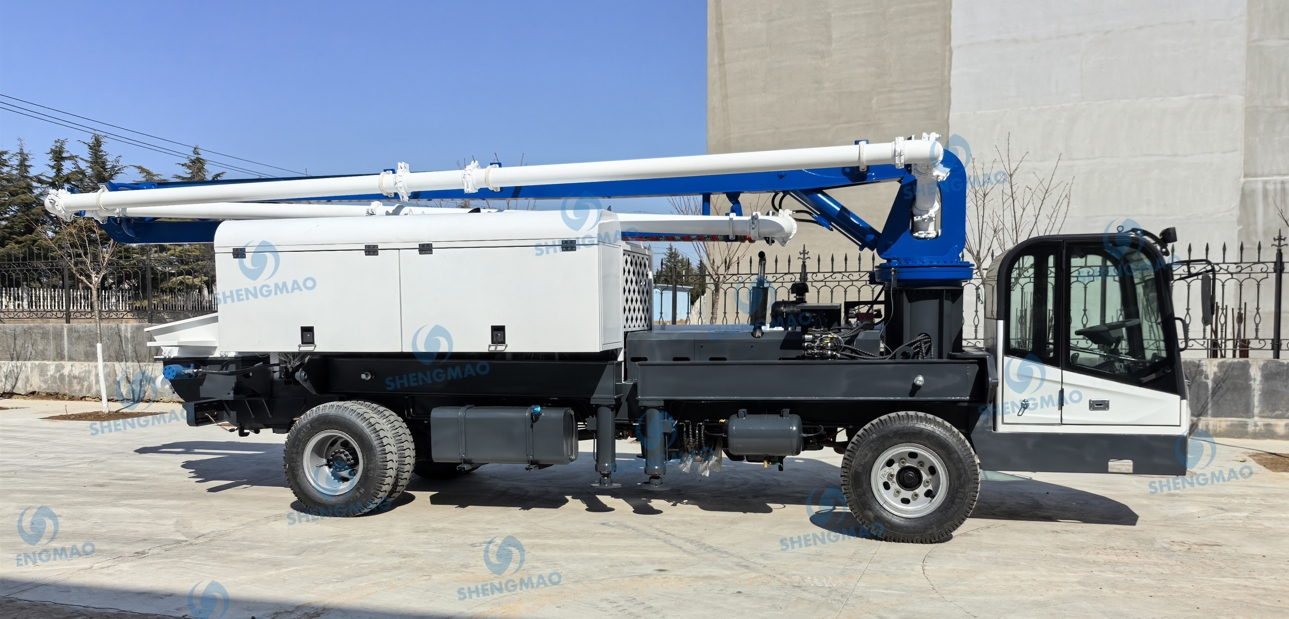

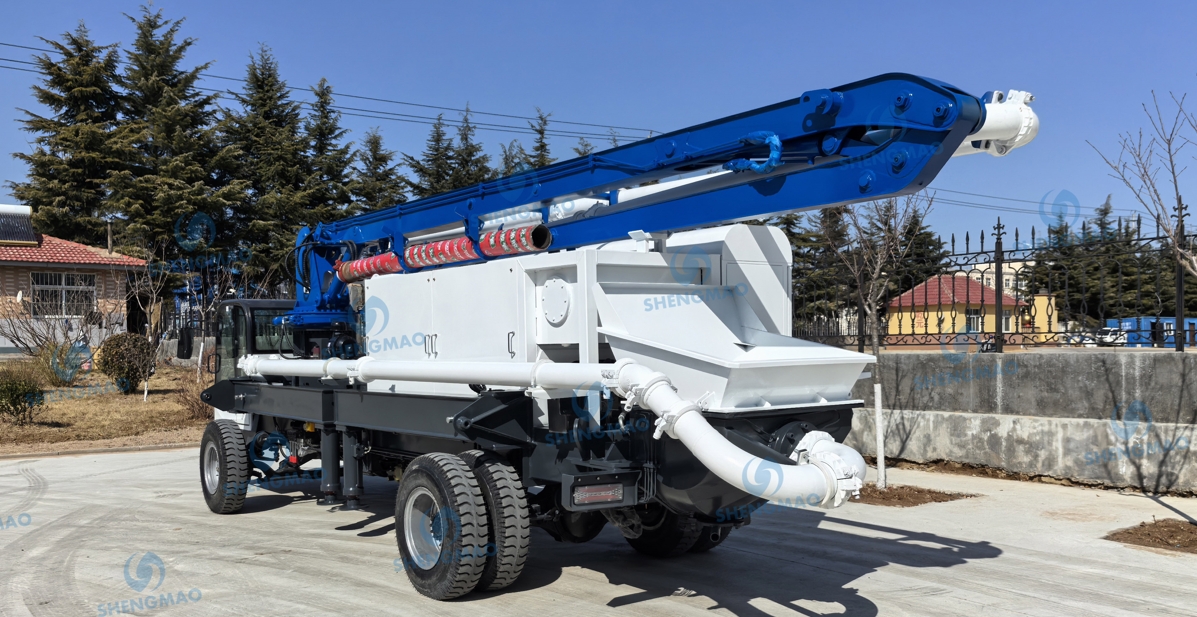

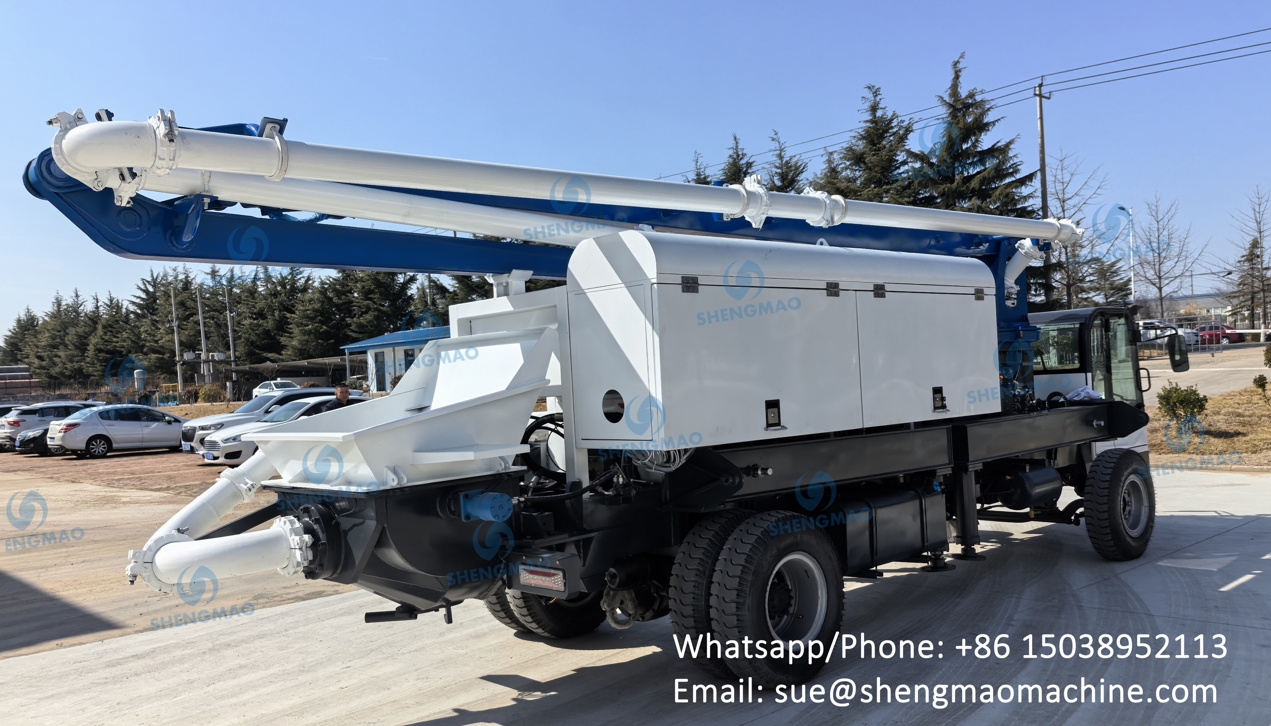

4. Pictures of our mini boom pump



5. Vedio of our mini boom pump
