1. Brief introduction of our screw conveyor

Screw conveyor is mainly used to deliver dry powder materials, such as cement, fly ash, ore powder etc.

As a supplier of screw conveyor, we have 168mm, 219mm, 273mm and 323mm screw conveyor, the length can be 2m to 15m.

---

2. Specification of our screw conveyor

Model	Delivery angle	delivery distance	delivery capacity	delivery pipe diameter	Motor power
LSY168	0-450	2-15m	10t/h	168mm	3-11.5kw
LSY219	0-450	2-15m	15t/h	219mm	5.5-15kw
LSY273	0-450	2-15m	30t/h	273mm	7.5-18.5kw
LSY323	0-450	2-15m	60t/h	323mm	15-30kw

---

3. Pictures of our screw conveyor

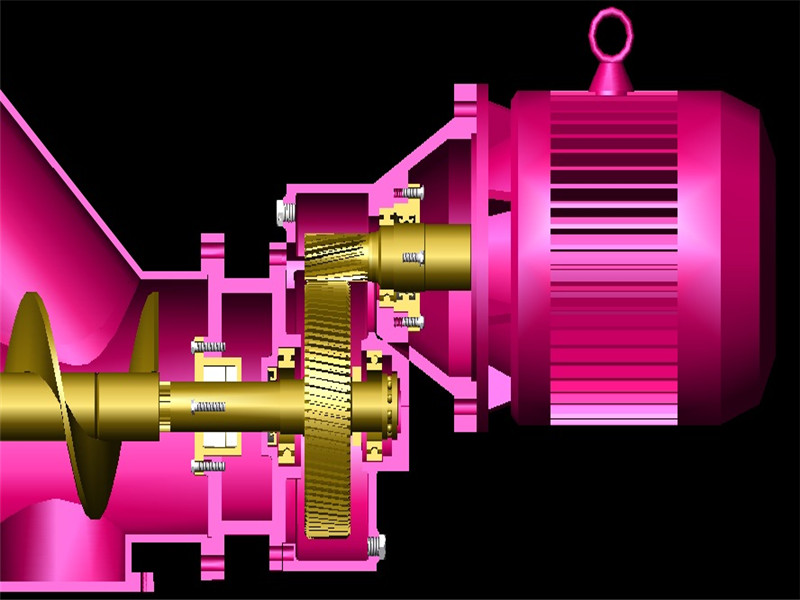

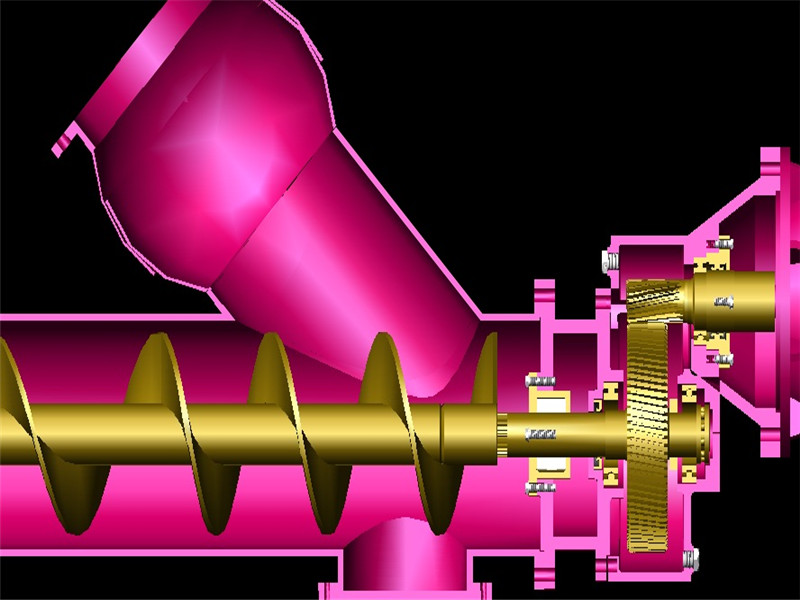

1) Screw conveyor design

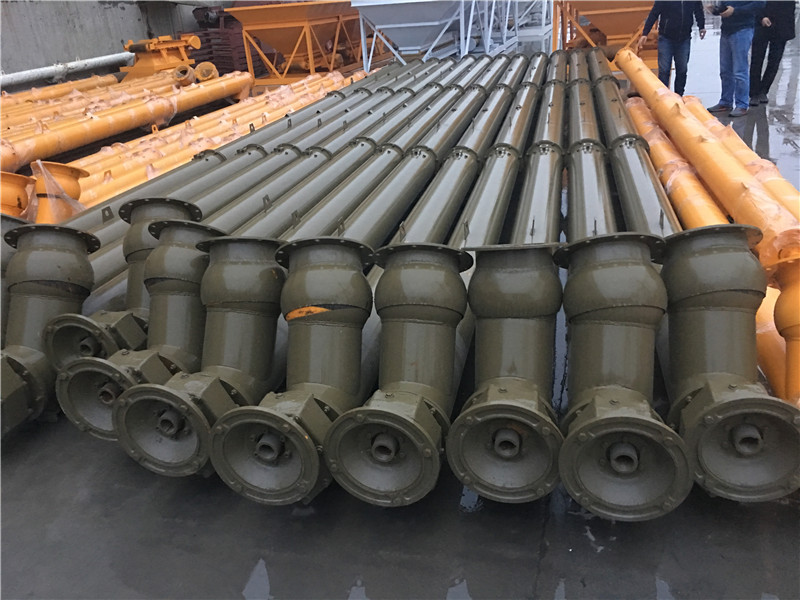

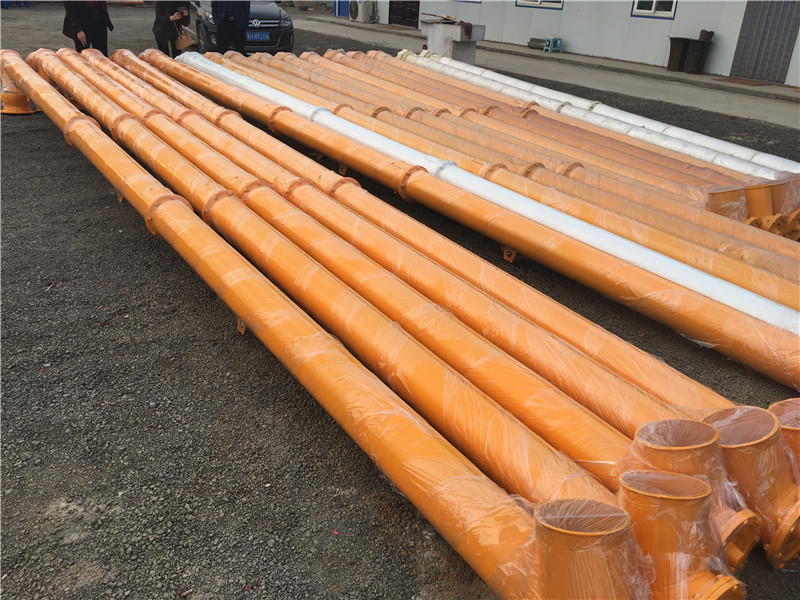

2) Screw conveyor

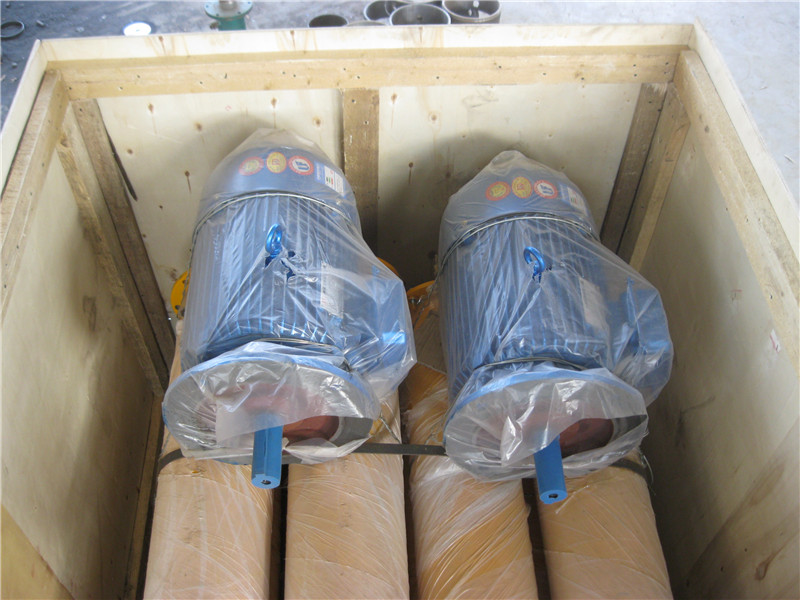

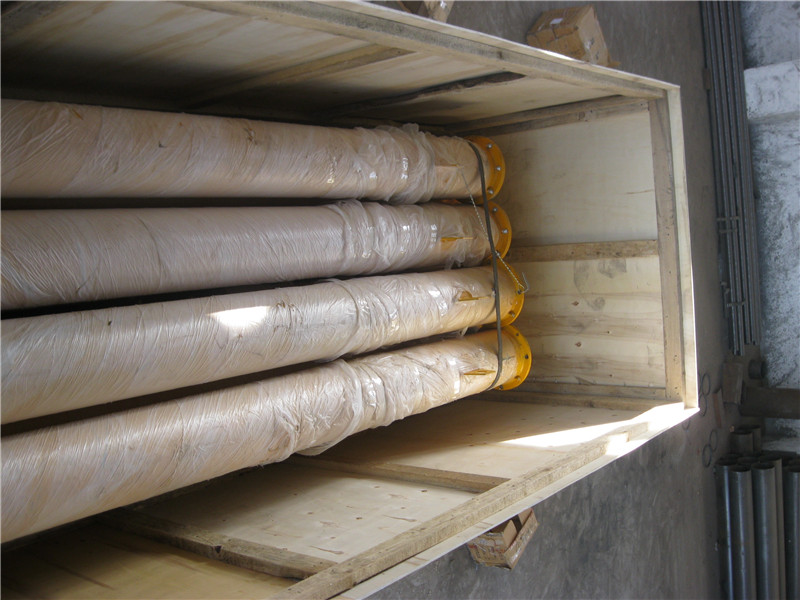

2) Screw conveyor package
