Belt conveyor concrete batching plant from Henan shengmao machinery Co.,ltd

1. Introduction of belt conveyor concrete batching plant:

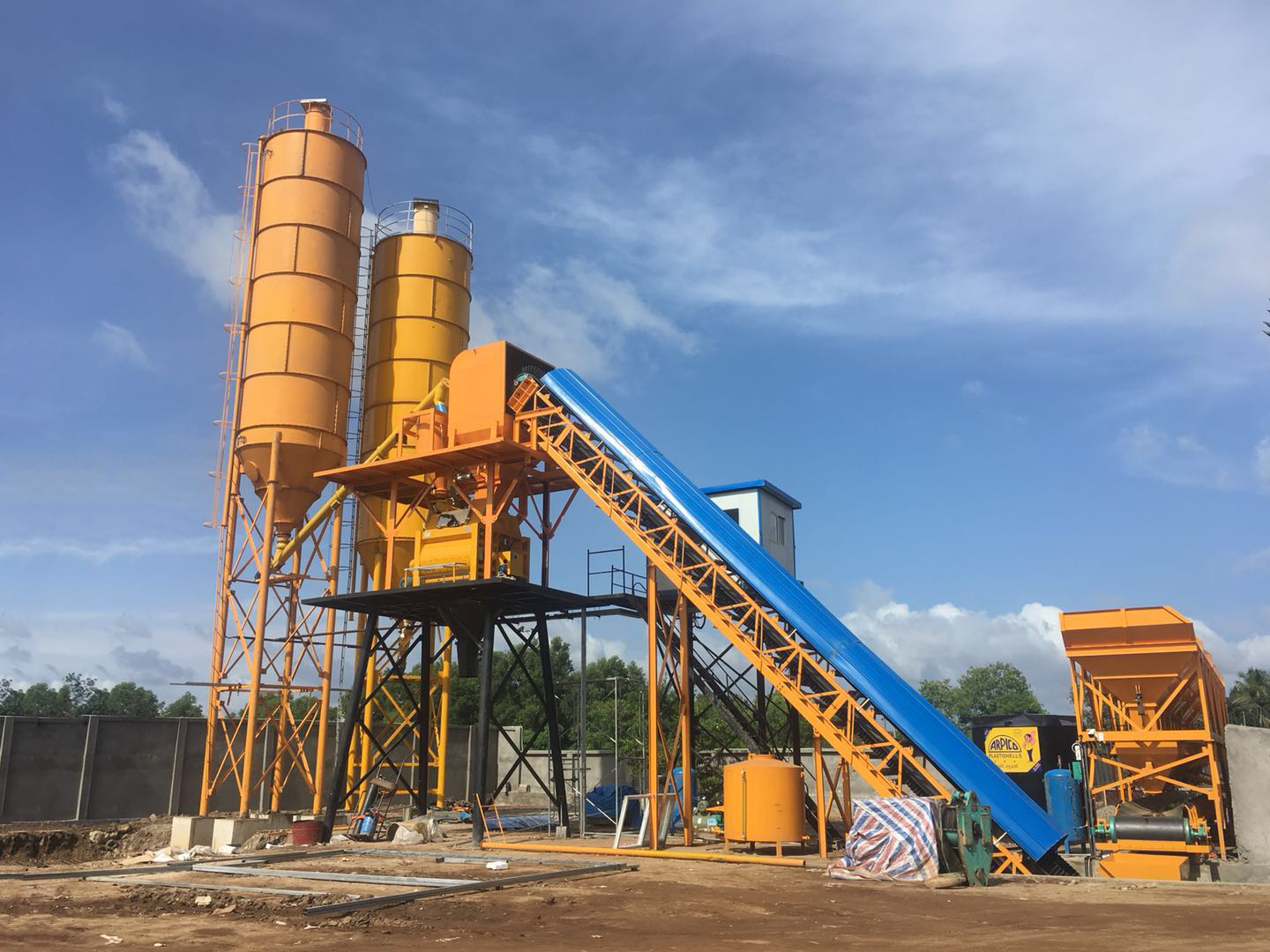

Belt conveyor concrete batching plant is usually used for commercial concrete supplying business or big projects where huge amount high-quality concrete is needed.

For belt conveyor concrete batching plant, each aggregate has its own scale, so the weighing accuracy and efficiency is remarkably improved. With the help of transitional hopper, the working efficiency of the whole batching plant can be 15% higher than that of the skip hoist type of batching plant.

Belt conveyor concrete batching plant is equipped packing exterior for aggregate loading belt and mixing tower; Both cement silo and mixing tower have their own filter system. These measures ensure the operation of the whole batching plant is environment friendly.

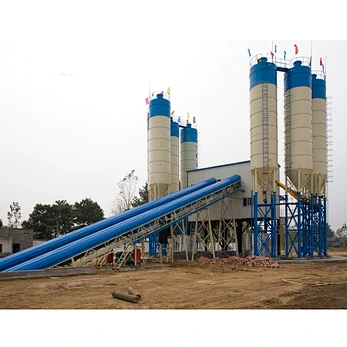

For belt conveyor concrete batching plant, we have 60m³/h, 90m³/h, 120m³/h, 180m³/h, 240m³/h.

2. Components of belt conveyor concrete batching plant:

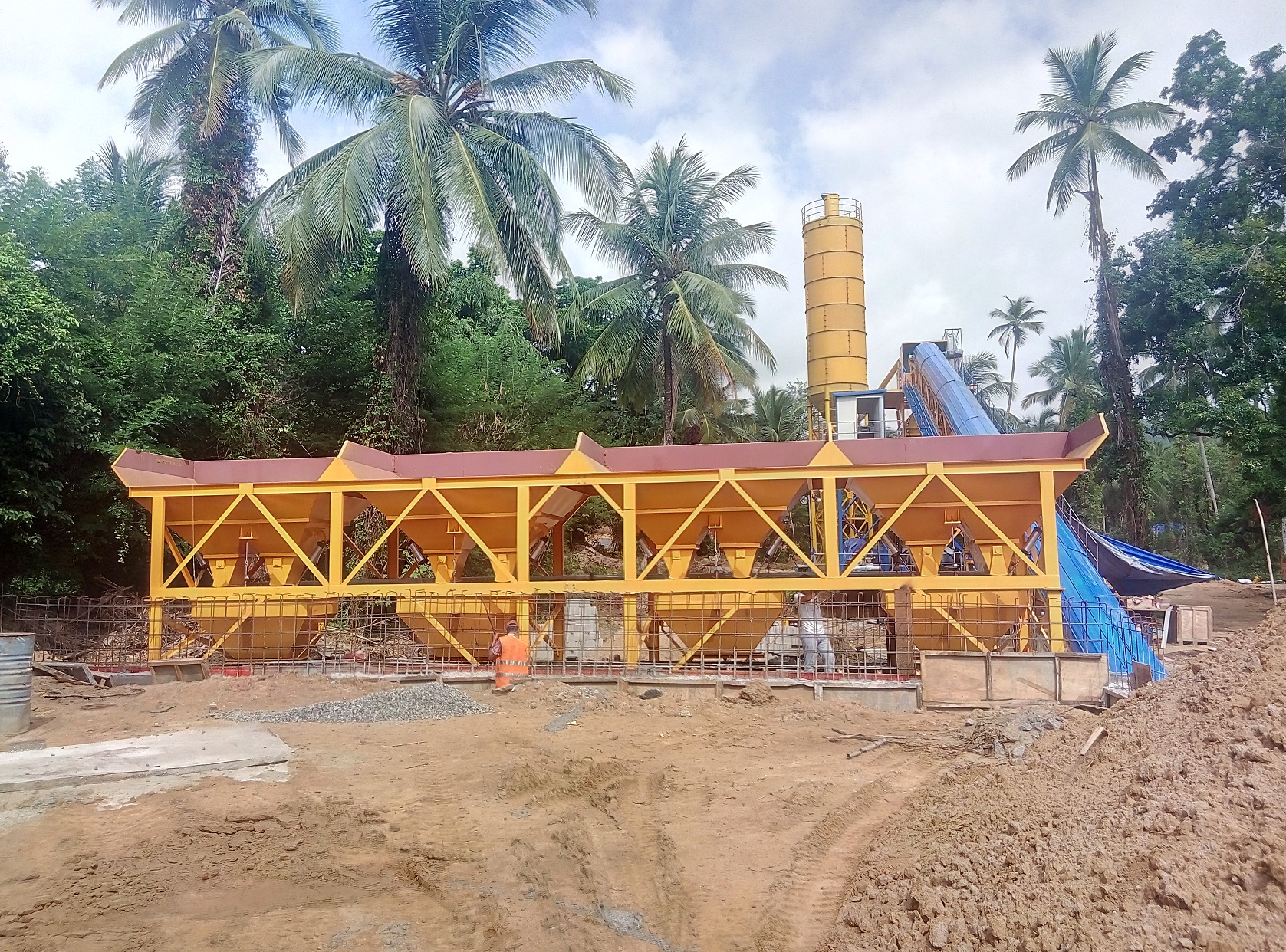

1) independent weighing aggregate batcher;

2) belt conveyor (if your space is enough, flat belt will be used; if not, bucket belt will be used);

3) twin-shaft concrete mixer, planetary concrete mixer;

4) water, cement and additive scales;

5) cement silo;

6) screw conveyor;

7) penumatic system;

8) packing exterior (protecting the environment)

9) fully automatic computer control system.

3. Specification of belt conveyor concrete batching plant:

Model	HZS60	HZS90	HZS120	HZS180
Production capacity (m3/h)	60	90	120	180
concrete mixer	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	belt conveyor
Max. aggregate size (mm)	60/80
Concrete discharging height (m）	4.1
Aggregate weighing accuracy (%)	+/-2
Cement weighing accuracy (%)	+/-1
Water weighing accuracy (%)	+/-1
Additive weighing accuracy (%)	+/-1
Total weight (T)	28	40	65	88
Total power (kw)	110	156	200	260
Control system	Computer control
