60m3/h HZS60 belt conveyor concrete batching plant
HZS60
Delivery
EXW,FOB,CIF,DAF,CIP
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
20Day
Quantity:
US $59000.00 - US $66000.00 / set
1. Components of HZS60 concrete batching plant
1) 1 set of JS1000 twin-shaft concrete mixer;
2) 1 set of PLD1600 aggregate batcher with 4 bins;
3) 1 set of Water, cement and additive scales;
4) 1 set of 100T bolted type cement silo;
5) 1 set of 273mm*8m Screw conveyor;
6) 1 set of Pneumatic system;
7) 1 set of fully automatic computer control system ( The language can be Chinese, Russian, French, English and Spanish)
8) 1 set of control room with air conditioner;
9) 1 set of packing exterior for aggregate loading belt and mixing tower.
2. Specification of HZS60 concrete batching plant
| Model | HZS60 |
| Production capacity (m3/h) | 60 |
| Concrete mixer | JS1000 twin-shfat mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 3.8 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | Computer control |
| Total power (kw) | 110 |
| Total weight (T) | 28 |

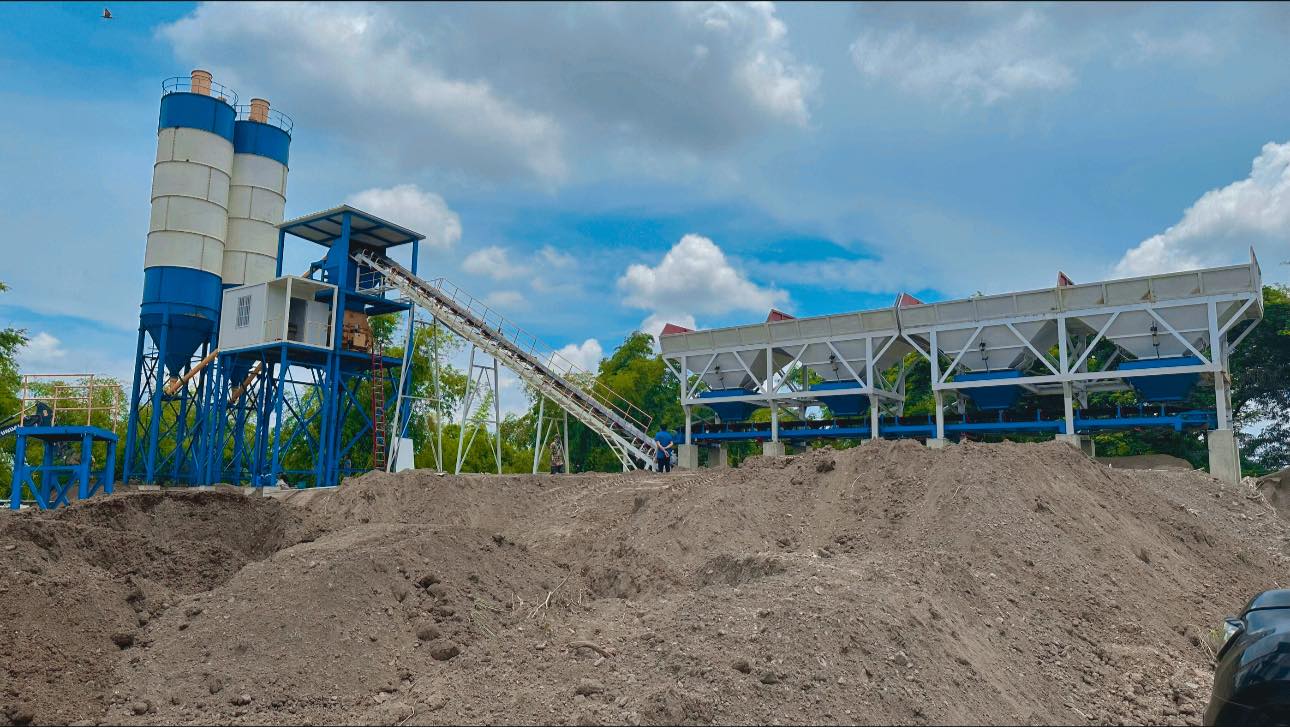

3. Pictures of HZS60 concrete batching plant
4. International cases of HZS60 concrete batching plant

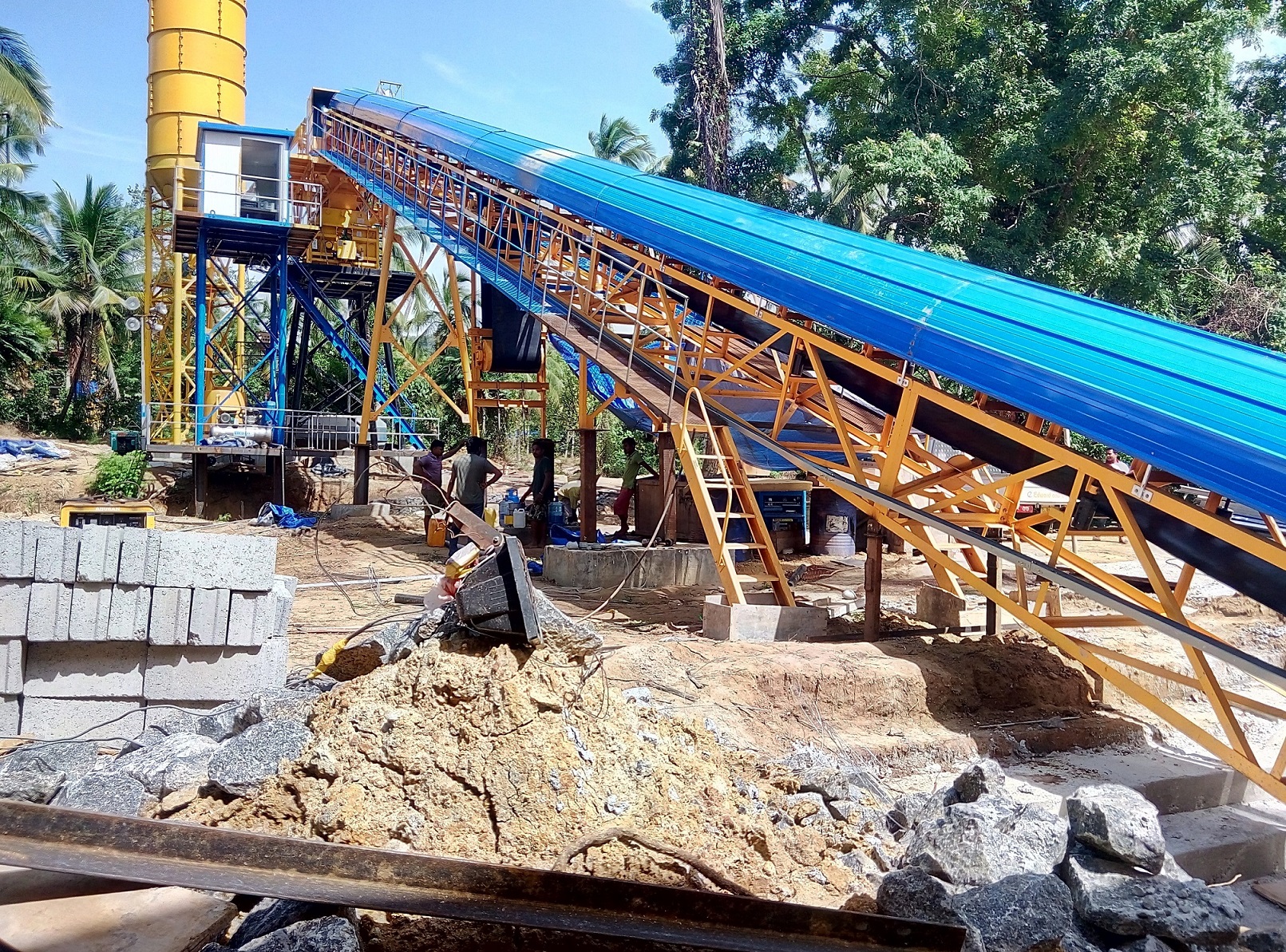

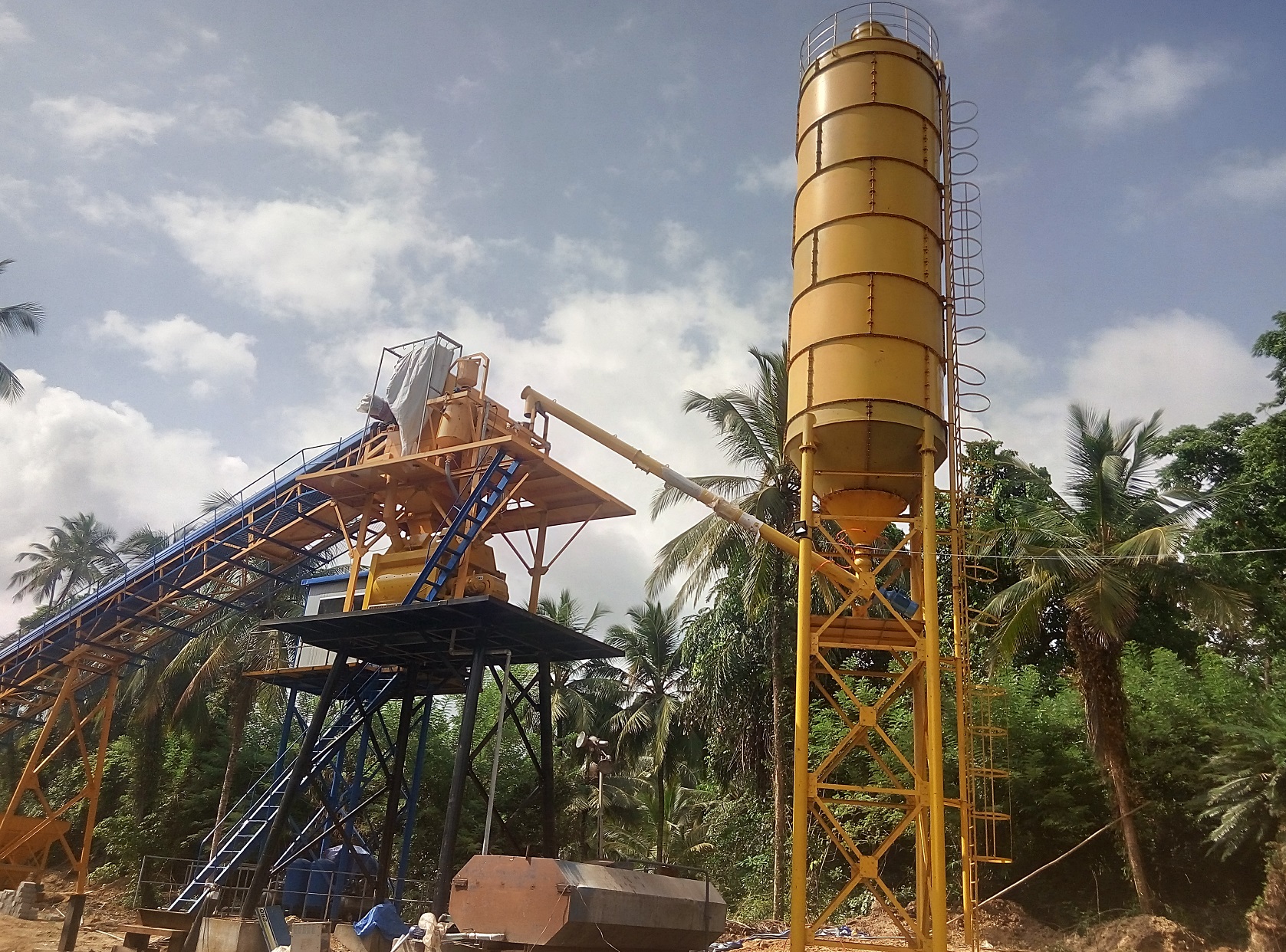

1)HZS60 concrete batching plant in Philippines
