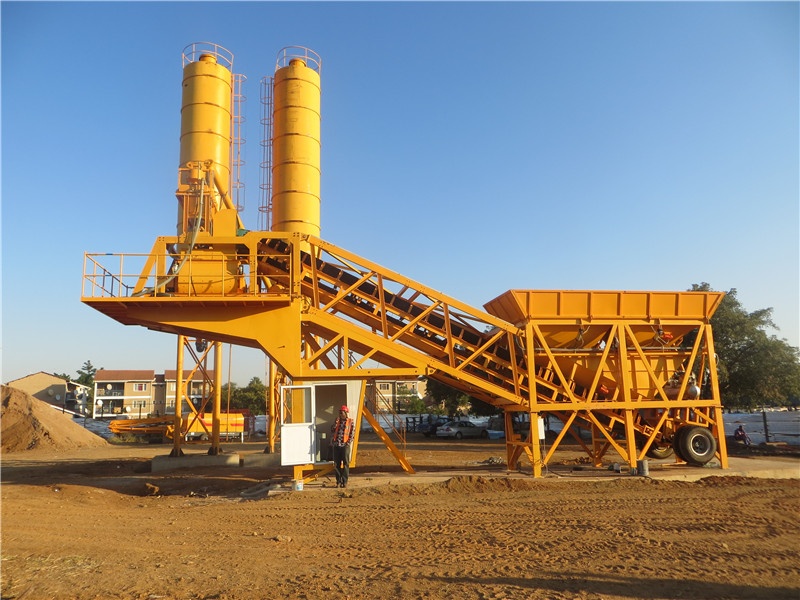

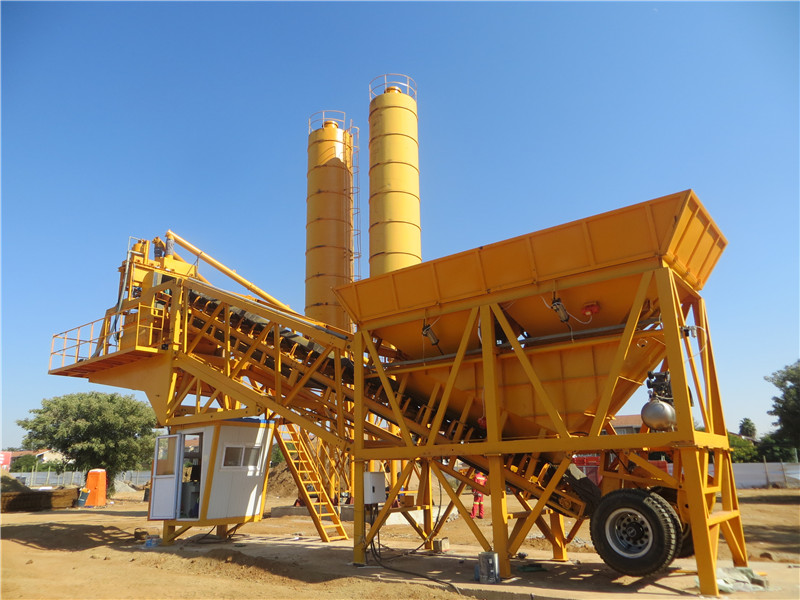

YHZS mobile concrete batching plant from Henan shengmao machinery

1. YHZS mobile concrete batching plant has the following features:

1) we need to make concrete foundation;

2) the concrete mixer can be twin-shaft mixer, pan mixer and planetary mixer;

3) the cement silo is vertical type, we need to make big concrete foundation;

4) the concrete discharging height is 4.1m which is easy for concrete transt mixer to collect concrete.

2. Specifications of YHZS mobile concrete batching plant:

Model	YHZS25	YHZS35	YHZS50	YHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	4.1	4.1	4.1	4.1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Total weight (T)	14	22	26	29
Total power(T)	60	72	92	102
Control system	Panel	Computer	Computer	Computer
