1. Features of YHZM series of mobile concrete batching plant:

1) There is no need to make big concrete foundation; we can save much time, cost and labour work;

2) Easy to install. We usually need 3 days to finish the installation in China;

3) Easy to move to other work sites;

4) Low budget;

5) the concrete mixer is drum mixer;

6) the cement silo is horizontal type, no need foundation;

7) the concrete discharging height is 1m; we need to use a belt conveyor to increase the height to enable concrete transit mixer to collect concrete.

2. Specification of YZM series of mobile concrete batching plant

Model

YHZM20

YHZM30

YHZM60

YHZM100

Production capacity (m3/h)

20

30

60

100

Concrete mixer

JZM500

JZM750

JZM1500

JZM2000

Aggregate feeding mode

Belt conveyor

Belt conveyor

Belt conveyor

Belt conveyor

Aggregate size(mm)

80/60

80/60

80/60

80/60

Discharging height(m)

1.5

1.5

1.5

1.5

Aggregate weighing accuracy (%)

±2

±2

±2

±2

Cement weighing accuracy (%)

±1

±1

±1

±1

Water weighing accuracy (%)

±1

±1

±1

±1

Additive weighing accuracy (%)

±1

±1

±1

±1

Control system

Panel

Computer

Computer

Computer

Total power (kw)

42

46

67

77.5

Total weight)

12

13

14.5

26

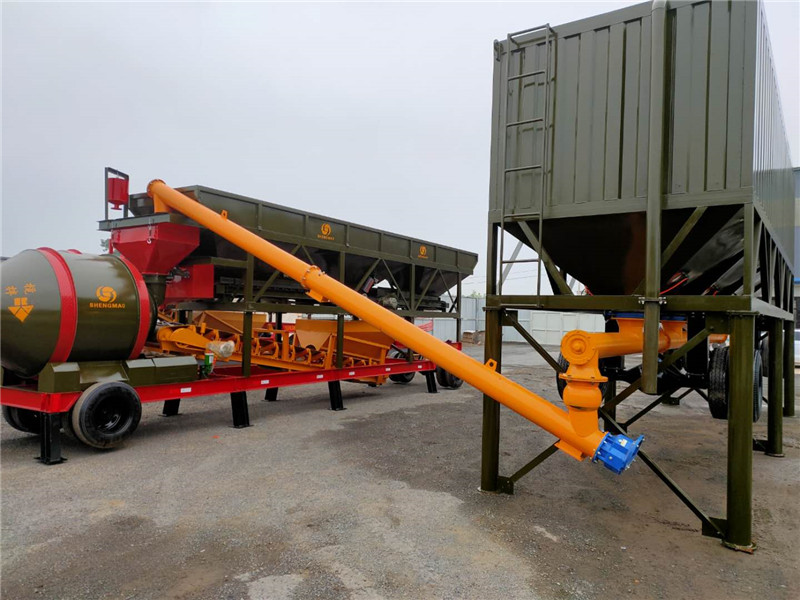

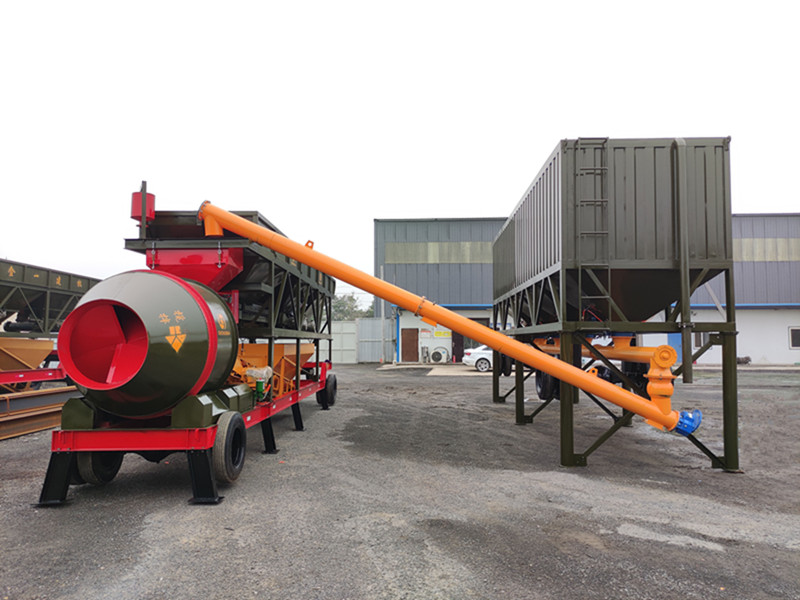

3. Pictures of YZM series of mobile concrete batching plant


4. Video of YZM series of mobile concrete batching plant
