YHZM100
Delivery
EXW,FOB,CIF,DAF,CIP
minimum order
1 set
Supply Ability
5set / Month
Country of Origin
China
Stock Time
20Day
Quantity:
US $75000.00 - US $90000.00
/ set
1. Components of YHZM100 mobile concrete batching plant
1) JZM2000 drum concrete mixer;
2) PLD3200 aggregate batcher with 3 bins;
3) Water, cement and additive scales;
4) Two sets of 100T mobile horizontal cement silo;
5) Two sets of 273mm*8m Screw conveyor;
6) One set air compressor with air pipe;
7) Fully automatic computer control system in English, Russian, French or Spanish.
2. Features of YHZM100 mobile concrete batching plant
1) No need concrete foundation. We can save much time, cost and labour work;
2) Quick installation. We can finish the installation within 3 days in China;
3) Easy to move to other work sites.
3. Specification of YHZM100 mobile concrete batching plant
| Model | YHZM100 |
| Production capacity (m3/h) | 100 |
| Concrete mixer | JZM2000 drum mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 1.5 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | computer control |
| Total power (kw) | 77.5 |
| Total weight (T) | 26 |

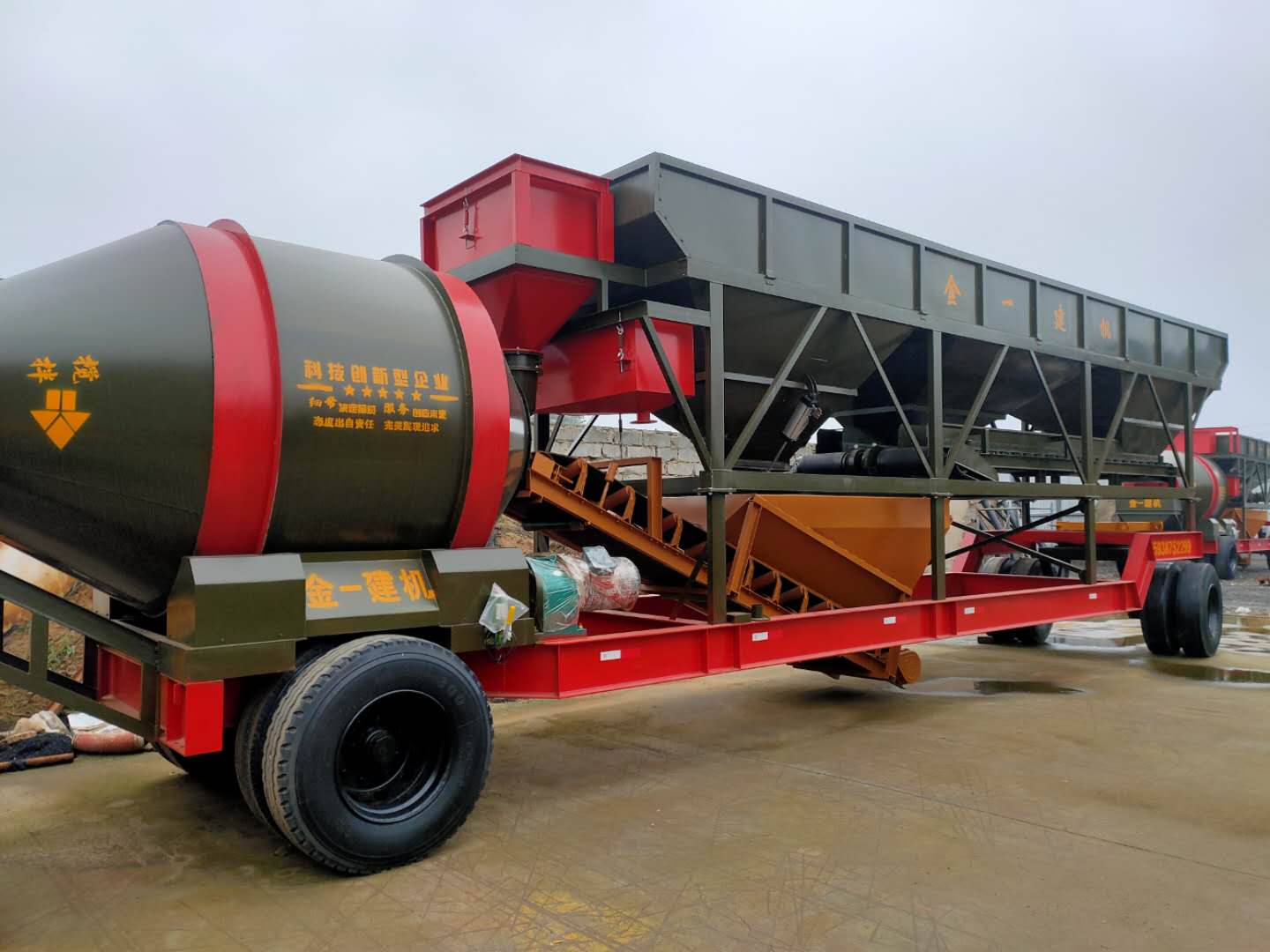

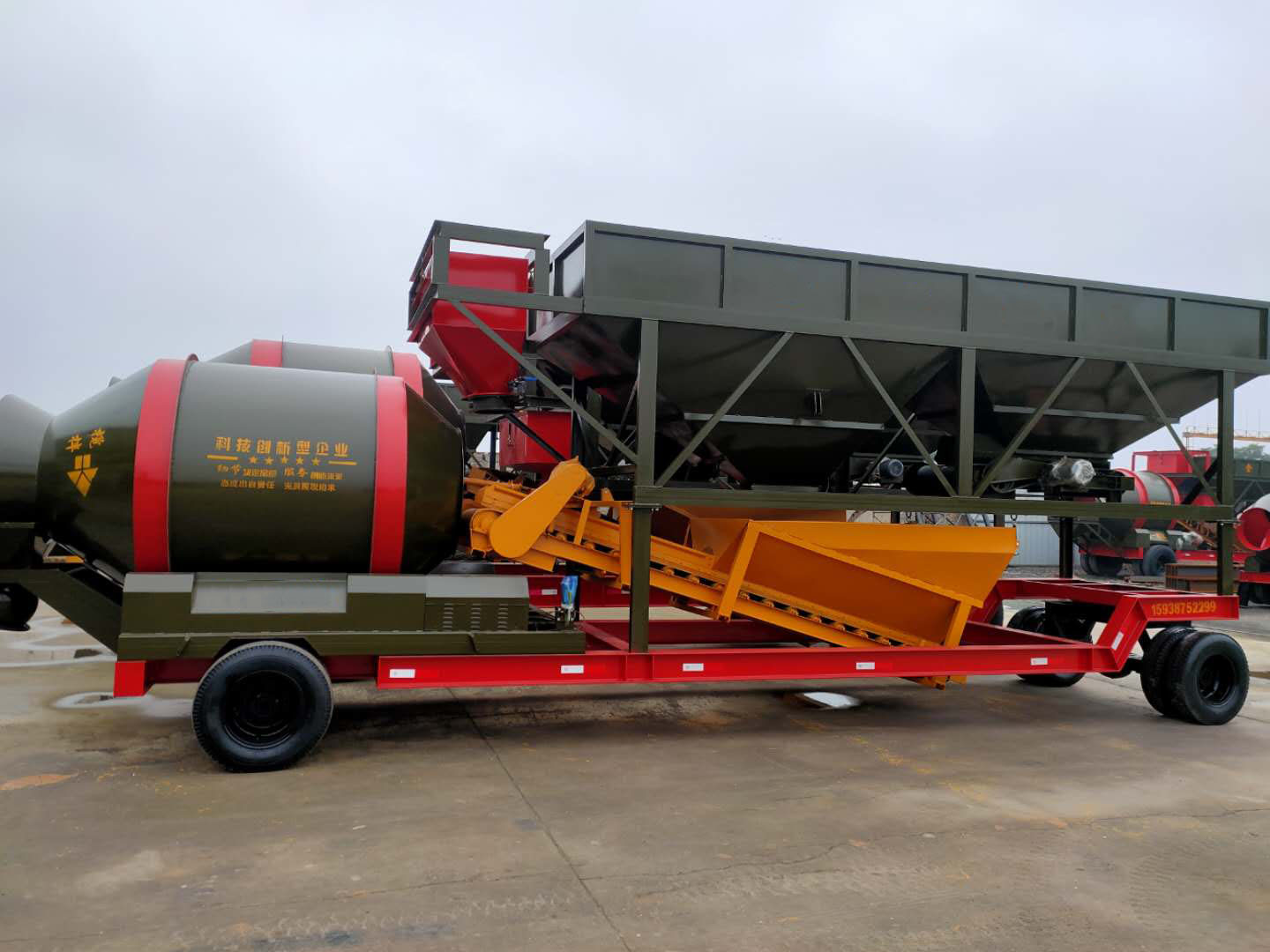

4. Pictures of YHZM60 mobile concrete batching plant
