YHZM30 portable concrete batching plant manufacturer
1. Components of YHZM30 portable concrete batching plant
1) JZM750 drum concrete mixer;
2) PLD1200 aggregate batcher with 3 bins;
3) Water, cement and additive scales;
4) 50T mobile horizontal cement silo;
5) 219mm*8m Screw conveyor;
6) Pneumatic system;
7) Panel or computer control system.
2. Features of YHZM30 portable concrete batching plant
1) No need concrete foundation. We can save much time, cost and labour work;
2) Quick installation. We can finish the installation within 3 days in China;
3) Easy to move to other work sites.
3. Specification of YHZM30 portable concrete batching plant
| Model | YHZM30 |
| Production capacity (m3/h) | 30 |
| Concrete mixer | JZM750 drum mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 1.5 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | Panel or computer control |
| Total power (kw) | 46 |
| Total weight (T) | 13 |

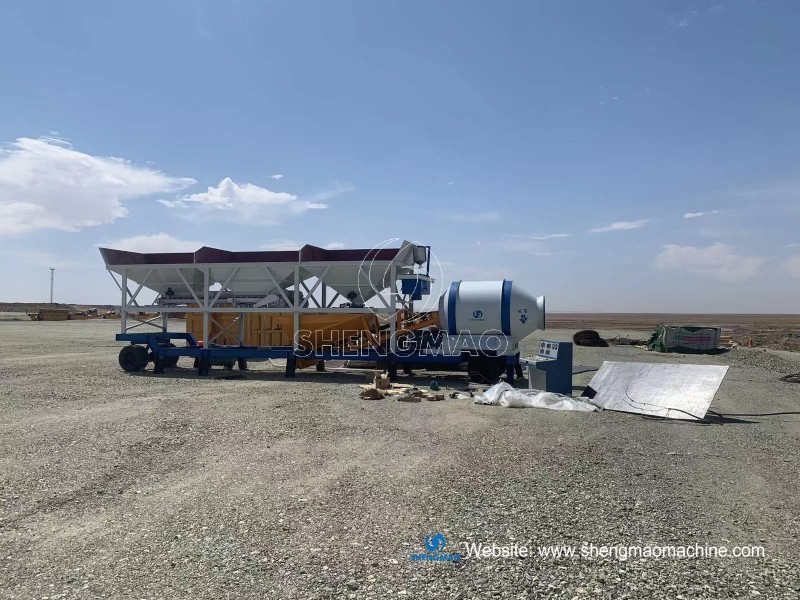

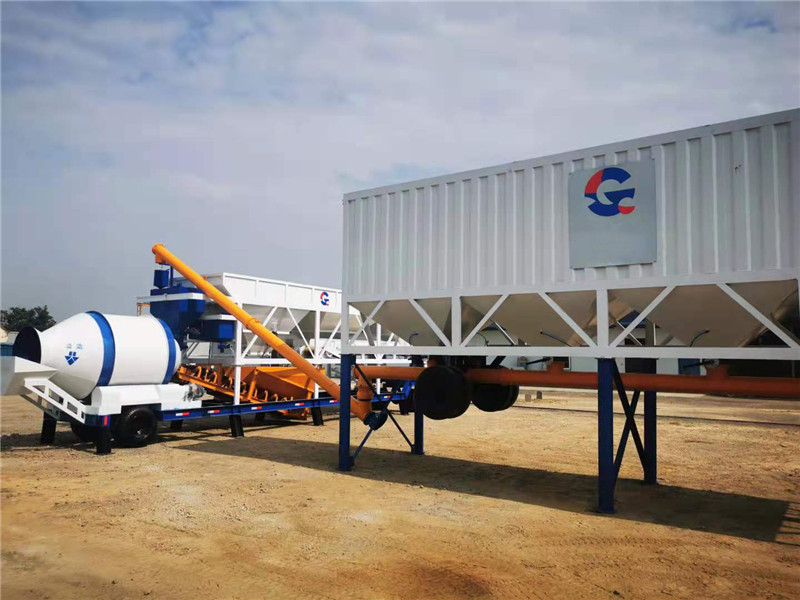

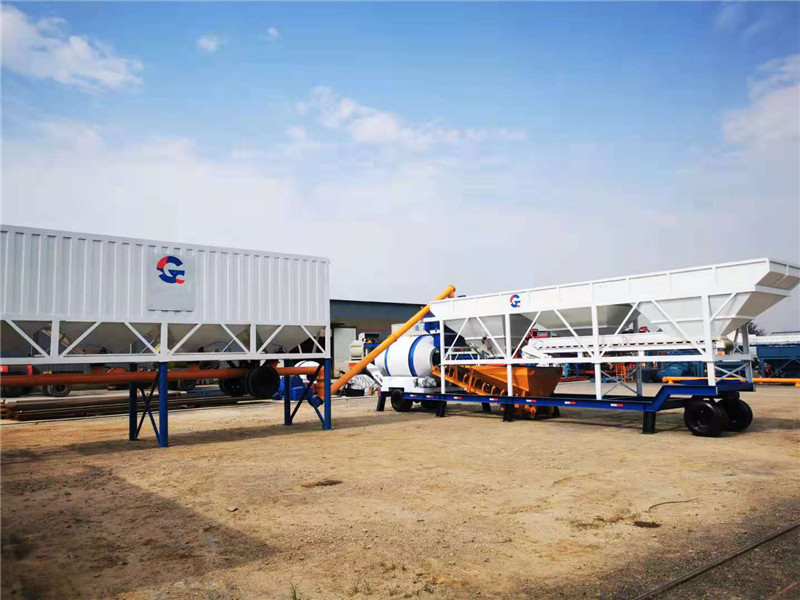

4. Pictures of YHZM30 portable concrete batching plant
5. Video of YHZM30 portable concrete batching plant
Welcome to contact us for more details and quotations about our YHZM30 portable concrete batching plant.
6.International cases of our YHZM30 portable concrete batching plant
