YHZM60 mobile ready mix precast concrete batching plant
YHZM60
Delivery
EXW,FOB,CIF,DAF,CIP
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
15Day
Quantity:
US $38000.00 - US $46000.00
/ set
1. Components of YHZM60 mobile concrete batching plant
1) JZM1000 drum concrete mixer;
2) PLD1600 aggregate batcher with 3 bins;
3) Water, cement and additive scales;
4) 100T mobile horizontal cement silo;
5) 273mm*8m Screw conveyor;
6) Pneumatic system;
7) fully automataic computer controL system in English, Russian, French or Spanish.
2. Features of YHZM60 mobile concrete batching plant
1) No need concrete foundation. We can save much time, cost and labour work;
2) Quick installation. We can finish the installation within 3 days in China;
3) Easy to move to other work sites.
3. Specification of YHZM60 mobile concrete batching plant
| Model | YHZM60 |
| Production capacity (m3/h) | 60 |
| Concrete mixer | JZM100 drum mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 1.5 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | computer control |
| Total power (kw) | 67 |
| Total weight (T) | 14.5 |

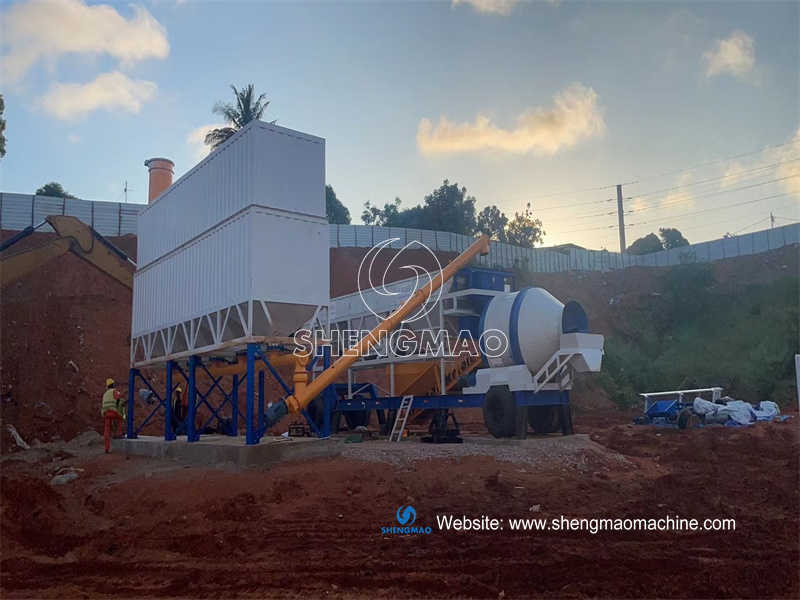

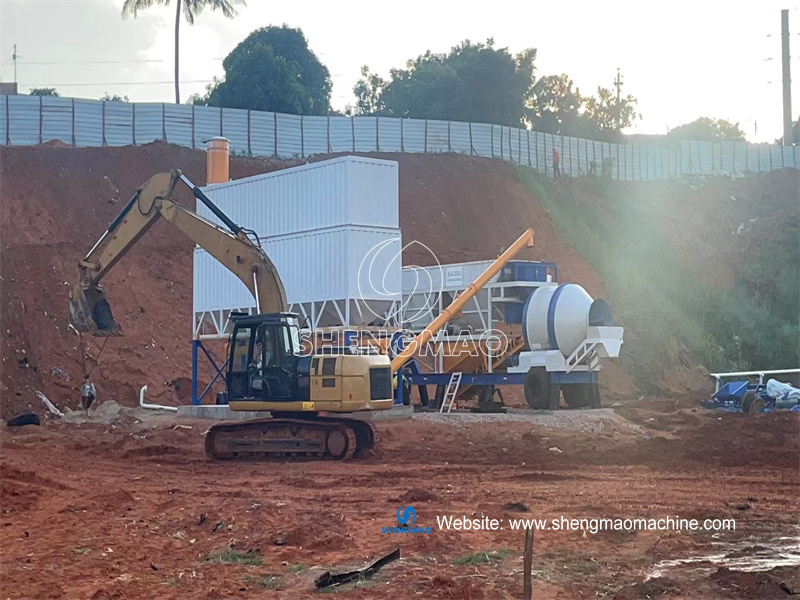

4. Pictures of YHZM60 mobile concrete batching plant
