1. Components of mobile asphalt mixing plant (drum type)

1) Cold aggregate bin;

2) Slanted belt conveyor;

3) Drying drum;

4) Bitumen system. Including bitumen tank, bitmen pump and bitumen pipes;

5) Two level dust collector. Volute casing dust collector plus bag house dust collector or Cyclone dust collector plus water dust collector;

6) Finished product elevator;

7) Finished product bin.

8) Travelling unit for cold aggregate bin, drying drum, asphalt tank.

---

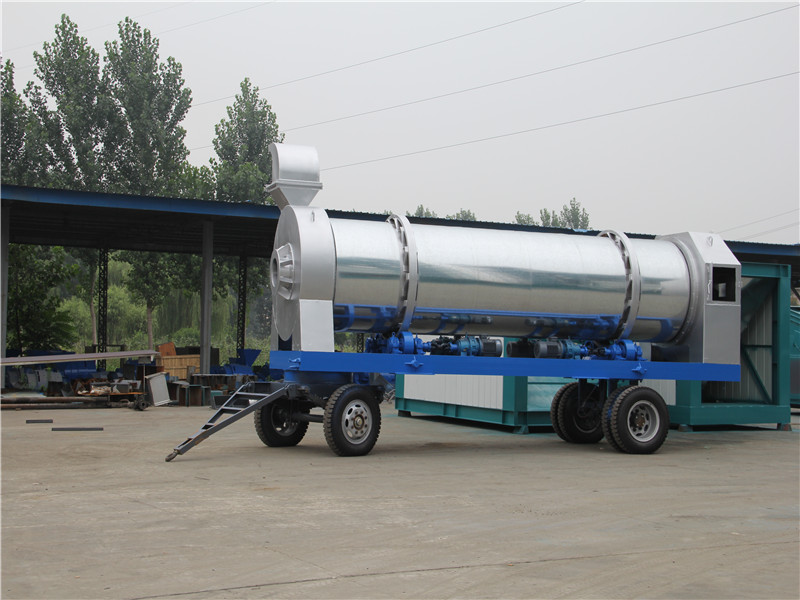

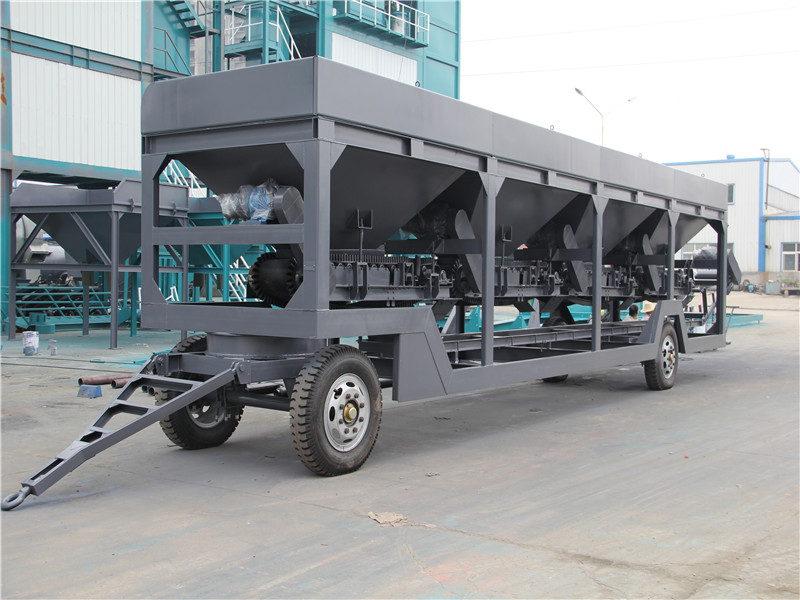

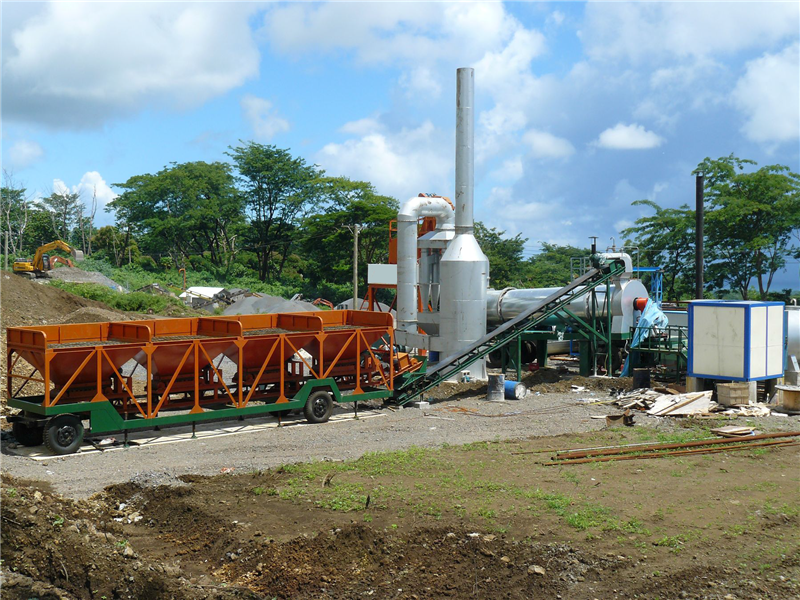

2. Pictures of mobile asphalt mixing plant (drum type)

Model	MDHB20	MDHB40	MDHB60	MDHB80	MDHB100
Production Capacity (T/h)	20	40	60	80	100
Mixing Type	Continuous	Continuous	Continuous	Continuous	Continuous
Dust Remove Effect (mg/Nm3)	≤100	≤100	≤100	≤100	≤100
Fuel Consumption (kg/t) (Oil)	5.5-7	5.5-7	5.5-7	5.5-7	5.5-7
Fuel Consumption (kg/t) (Coal)	10-13	10-13	10-13	10-13	10-13
Aggregate Weighing Accuracy(%)	±1.5	±1.5	±1.5	±1.5	±1.5
Bitumen Weighing Accuracy(%)	±1	±1	±1	±1	±1
Total Power (kw)	50	75	128	165	200

---

2. Specification of mobile asphalt mixing plant (drum type)
