1. General introduction of foundation free concrete batching plant

For traditional concrete batching plant, we need to make big reinforced concrete foundation for each part, especially the cement silo and mixing tower. These foundations are both time-consuming and cost-consuming. In order to solve this problem, we design the foundation free concrete batching plant for which we don't need to make foundation.

For each part of foundation free concrete batching plant, there is a steel base. We just need to make sure the job site ground is hard and dry, we can place the machine on the ground and start to work directly. In this way, we can save much time and cost to make reinforced concrete foundation. And it is also very easy to disassemble and move to another job site.

Currently, we have 25m3/h, 35m3/h, 50m3/h, 60m3/h, 75m3/h, 90m3/h and 120m3/h foundation free concrete batching plant. Welcome to contact us for details and quotations.

2. Models of foundation free concrete batching plant we have:

Model FHZS25 FHZS35 FHZS50 FHZS60 FHZS75 FHZS90 FHZS120
Production capacity (m3/h) 25 35 50 60 75 90 120
Poncrete mixer JS500 JS750 JS1000 JS1000 JS1500 JS1500 JS2000
Aggregate feeding mode Skip hoist Skip hoist Skip hoist belt conveyor Skip hoist belt conveyor belt conveyor
Aggregate batcher PLD800 PLD1200 PLD1600 PLD1600 PLD2400 PLD2400 PLD3200
Max. aggregate size (mm) 60/80 60/80 60/80 60/80 60/80 60/80 60/80
Discharging height (m) 3.8m 3.8m 4.1m 4.1m 4.1m 4.1m 4.1m
Aggregate weighing accuracy (%) +/-2 +/-2 +/-2 +/-2 +/-2 +/-2 +/-2
Cement weighing accuracy (%) +/-1 +/-1 +/-1 +/-1 +/-1 +/-1 +/-1
Water weighing accuracy (%) +/-1 +/-1 +/-1 +/-1 +/-1 +/-1 +/-1
Additive weighing accuracy (%) +/-1 +/-1 +/-1 +/-1 +/-1 +/-1 +/-1
Total weight (T) 10 13.5 18.5 27 25 30 50
Total power (KW) 65 75 100 105 110 140 190
Control system Panel computer computer computer computer computer computer

3. Components of foundation free concrete batching plant:

1) Aggregate batching machine with steel base;

2) Aggregate loading belt conveyor or skip hoist;

3) Water, cement and additive scales;

4) Concrete mixer: twin-shaft mixer or planetary mixer;

5) Cement silo: traditional vertical cement silo or horizontal cement silo. Horizontal cement silo is more and more popular because it is very easy to install and no needs foundation;

6) Screw conveyor;

7) Control system.

4. Features of foundation free concrete batching plant:

1) No need concrete foundation for the whole concrete batching plant;

2) Easy to install and move to other job site;

3) Space needed is small.

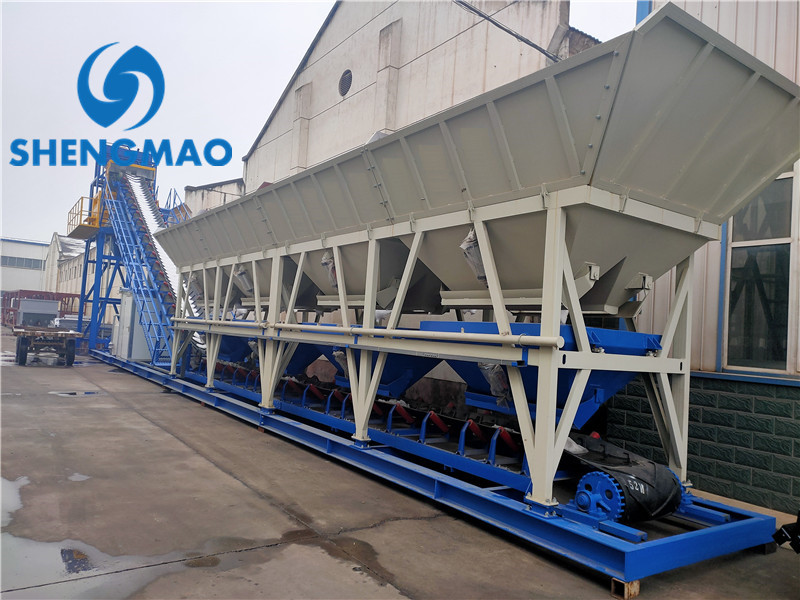

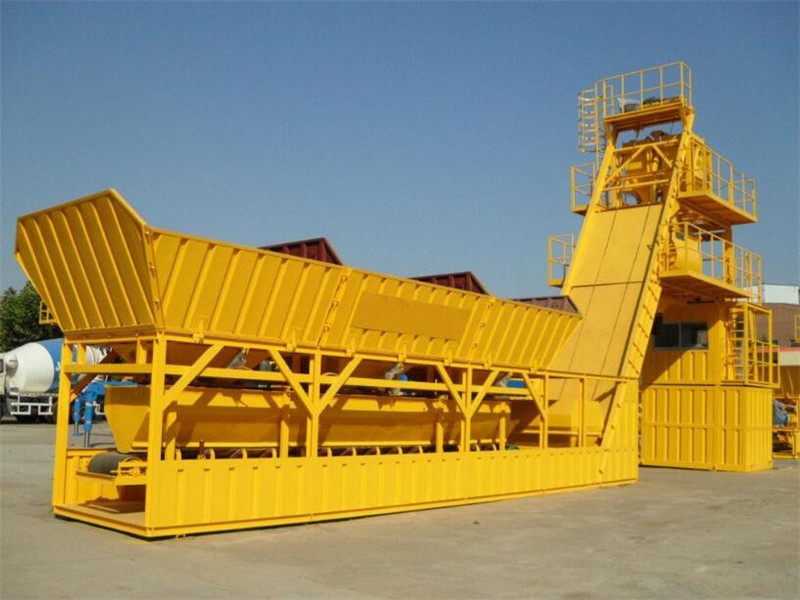

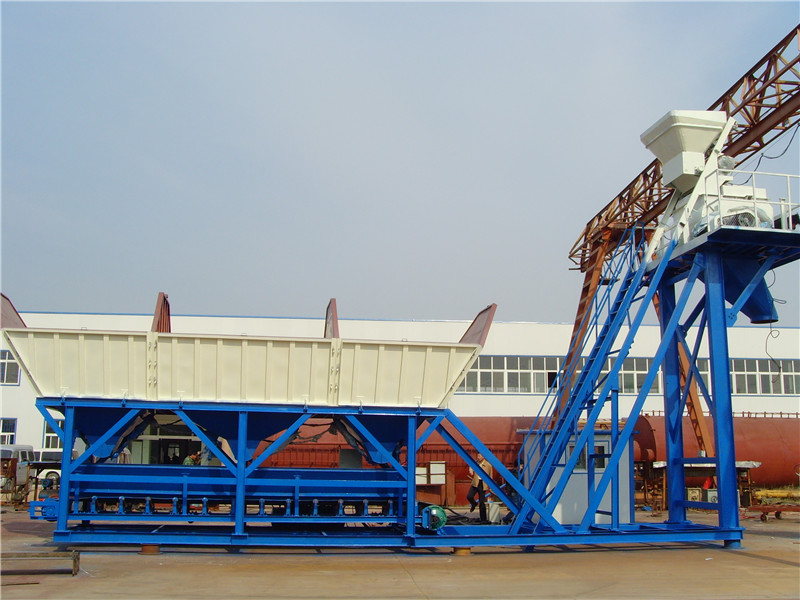

5. Photos of foundation free concrete batching plant:

5. International cases of foundation free concrete batching plant:

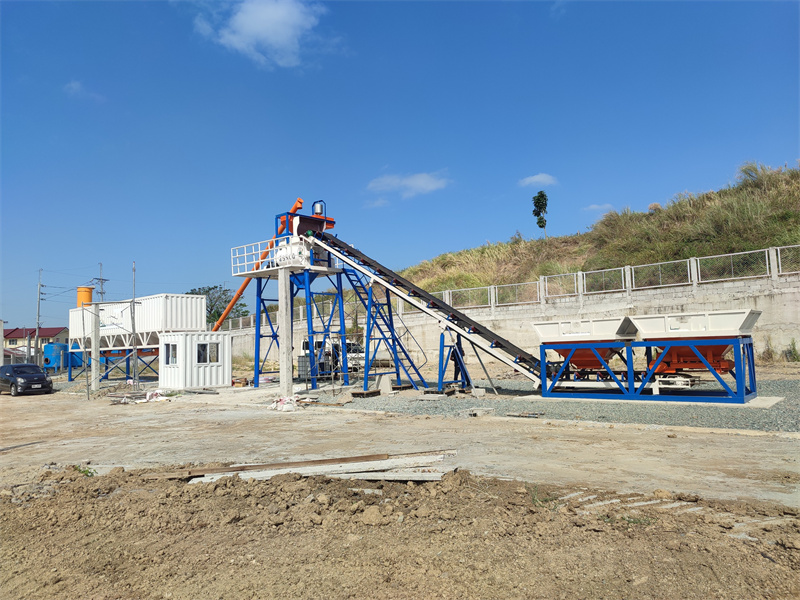

1) 25m3/h foundation free concrete batching plant in Philippines

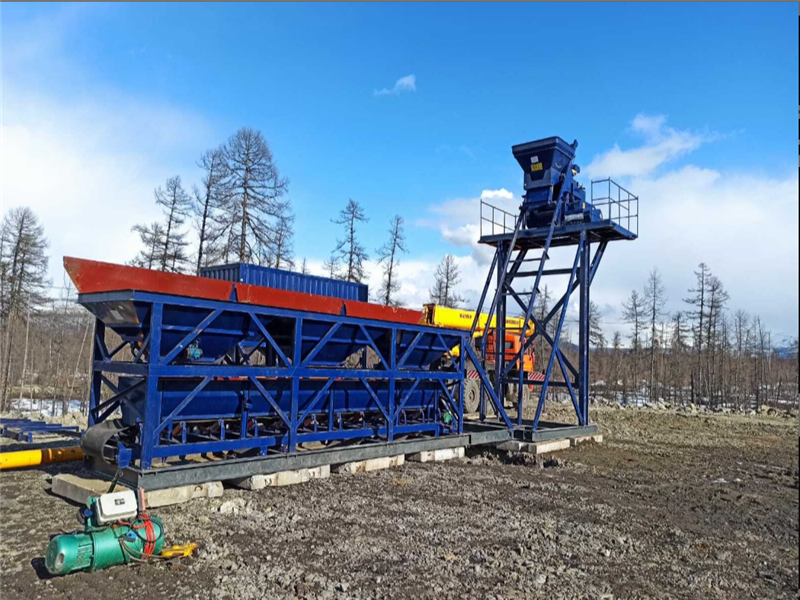

2) 25m3/h froundation free concrete batching plant in Russia
