FHZS75 Foundation-Free Concrete Batching Plant
1. Components of 75m3/h no foundation concrete batching plant
1) PLD2400 aggregate batching machine with 3 bins;
2) JS1500 twin-shaft concrete mixer or SMP1500 Planetary Mixer
3) Water, cement and additive scales;
4) One set 100T horizontal cement silo;
5) One set 219mm*8m screw conveyor;
6) One set air compressor with air pipes;
7) Fully automatic computer control system in English, Spanish, Russia or French;
8) Container type control room.
2. Specification of 75m3/h no foundation concrete batching plant
Model | FHZS25 |
Production capacity (m3/h) | 25 |
Concrete mixer | JS1500 |
Aggregate feeding mode | Skip hoist |
Aggregate batcher | PLD2400 |
Max. aggregate size (mm) | 60/80 |
Discharging height (m) | 3.8 |
Aggregate weighing accuracy (%) | ±2 |
Cement weighing accuracy (%) | ±1 |
Water weighing accuracy (%) | ±1 |
Additive weighing accuracy (%) | ±1 |
Total weight (T) | 10 |
Total power (kw) | 65 |
Control system | Computer |

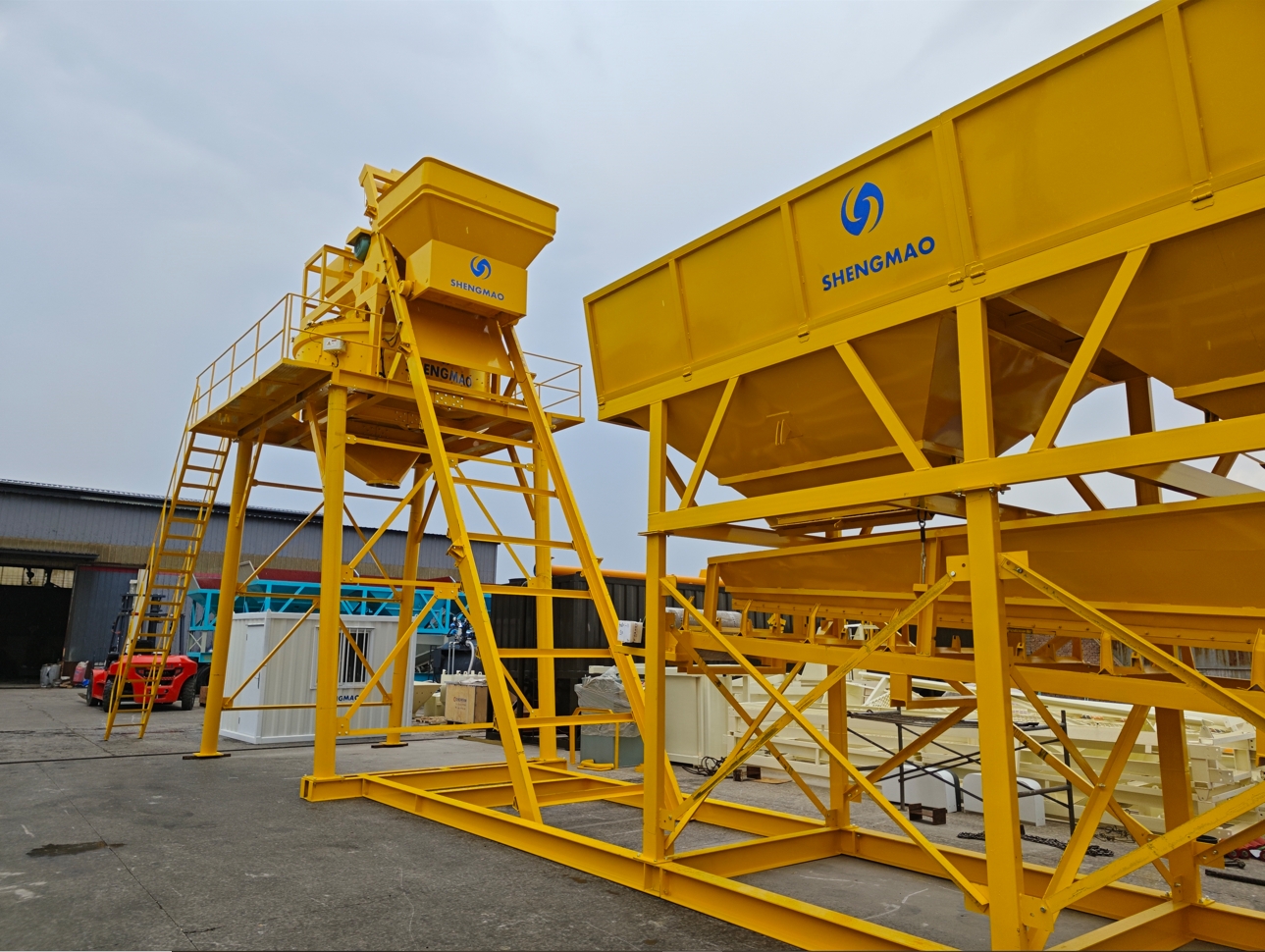

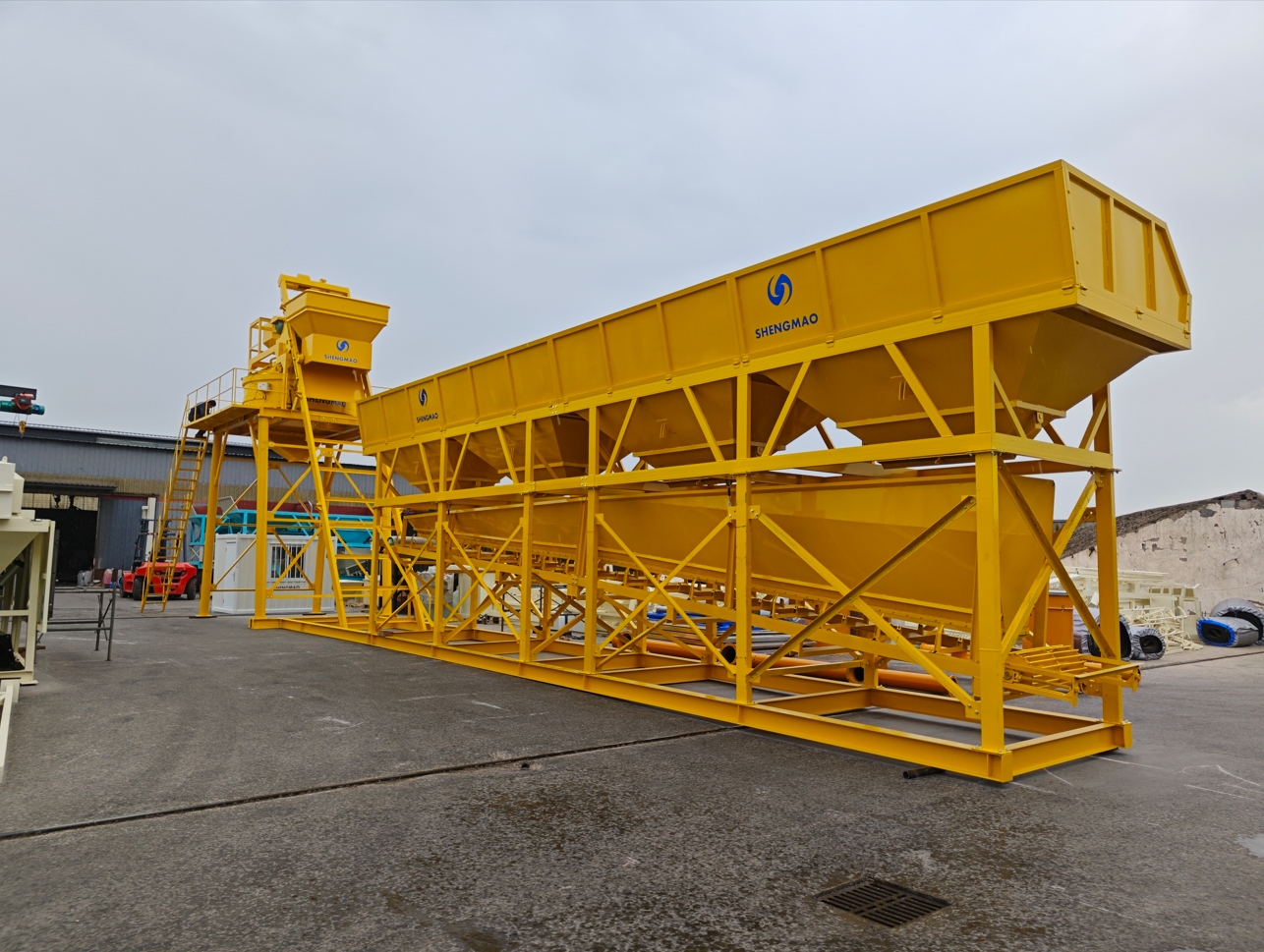

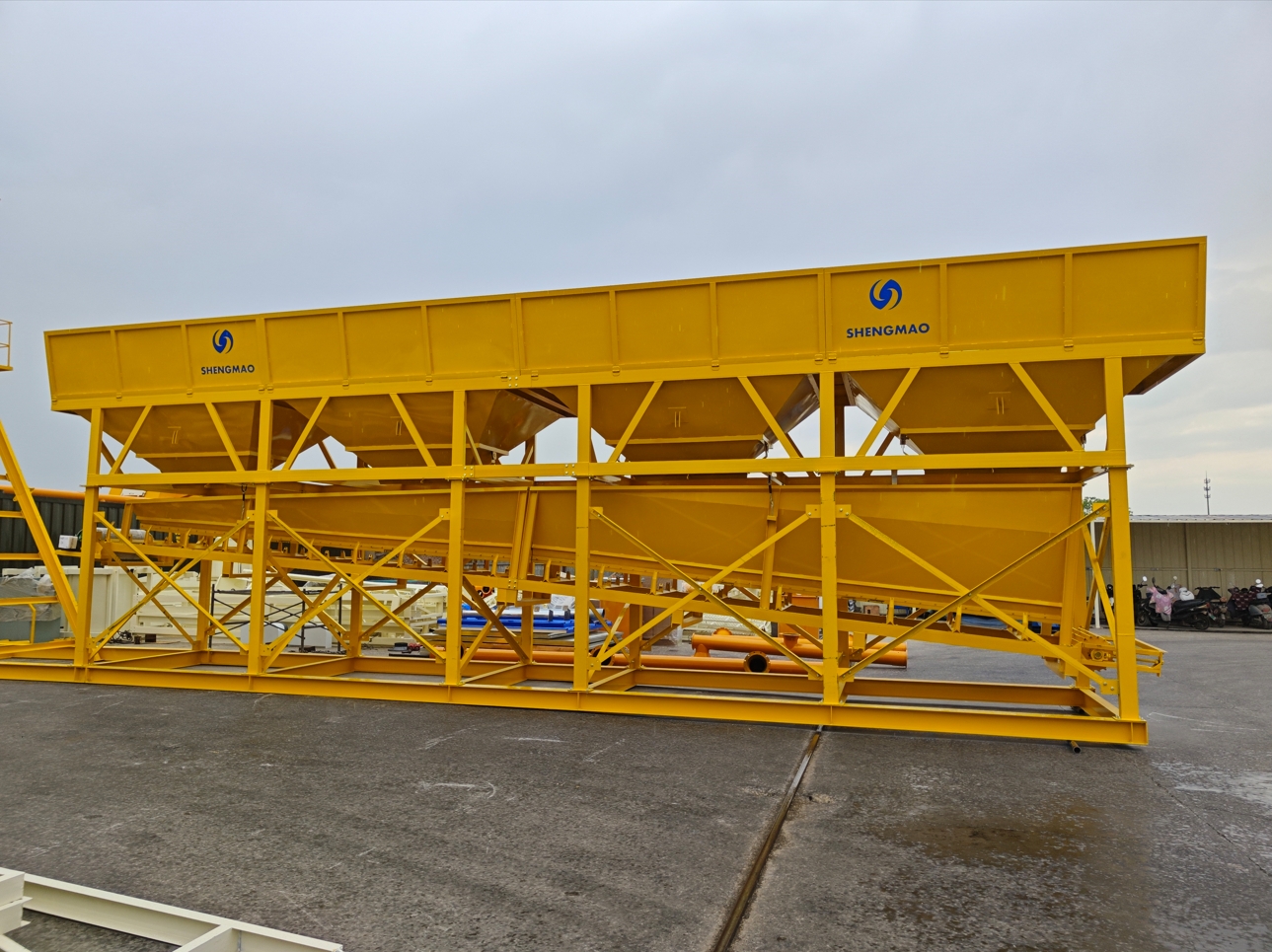

3. Our 75m3/h no foundation concrete batching plant to Moldova
