50m3/h concrete batching plant without foundation
1. Components of 50m3/h foundation free concrete batching plant
1) PLD1600 aggregate batching machine with 3 bins;
2) JS1000 twin-shaft concrete mixer;
3) Water, cement and additive scales;
4) One set 50T horizontal cement silo;
5) One set 273mm*8m screw conveyor;
6) One set air compressor with air pipes;
7) Fully automatic computer control system in English, Spanish, Russia or French;
8) Container type control room.
2. Specification of 50m3/h foundation free concrete batching plant
Model | FHZS50 |
Rated Productivity | 50m3/h |
Main Mixer | JS1000 |
Max. Aggregate Diameter | 60/80mm |
Capacity of Aggregate Bin | 3×8.3m3 |
Capacity of weighting Hopper | 1.6m3 |
Aggregate Conveying Mode | Lift Hopper |
Aggregate Weighing Precision | ±2% |
Cement Weighing Precision | ±1% |
Water Weighing Precision | ±1% |
Additive Weighing Precision | ±1% |
Total Weight | 28T |
Outline dimension (L*W*H) | 33.8m×14.8m×10.8m |
Discharging Height | 4.1 m |
Control Mode | Central control |
Screw Conveyors | φ219mm screw conveyors |
3. Pictures of 50m3/h foundation free concrete batching plant

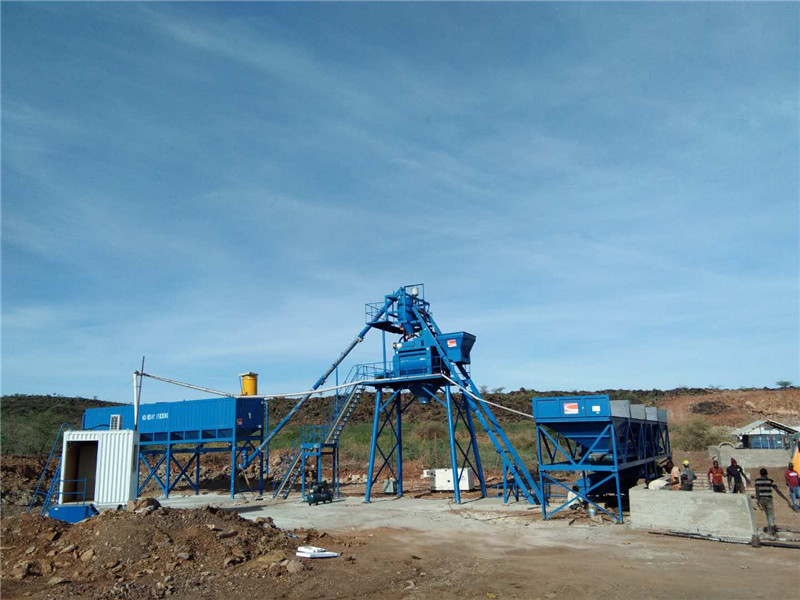

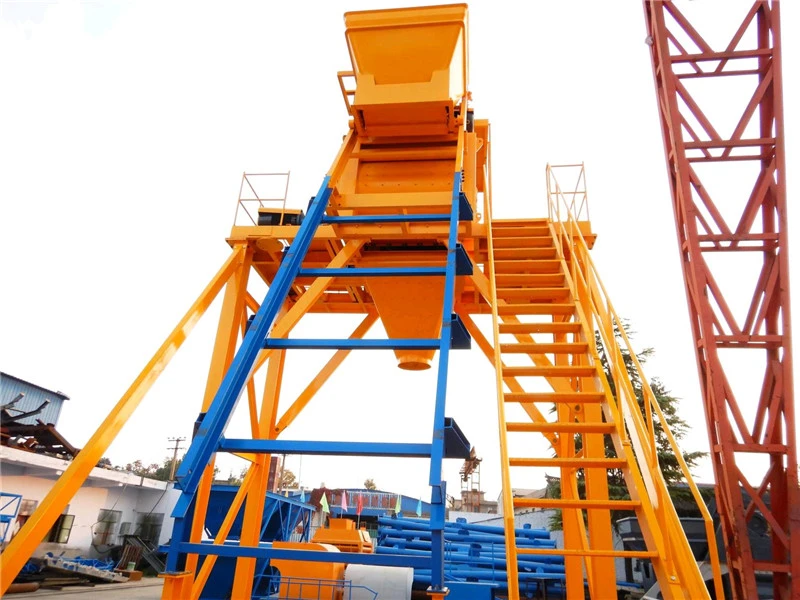

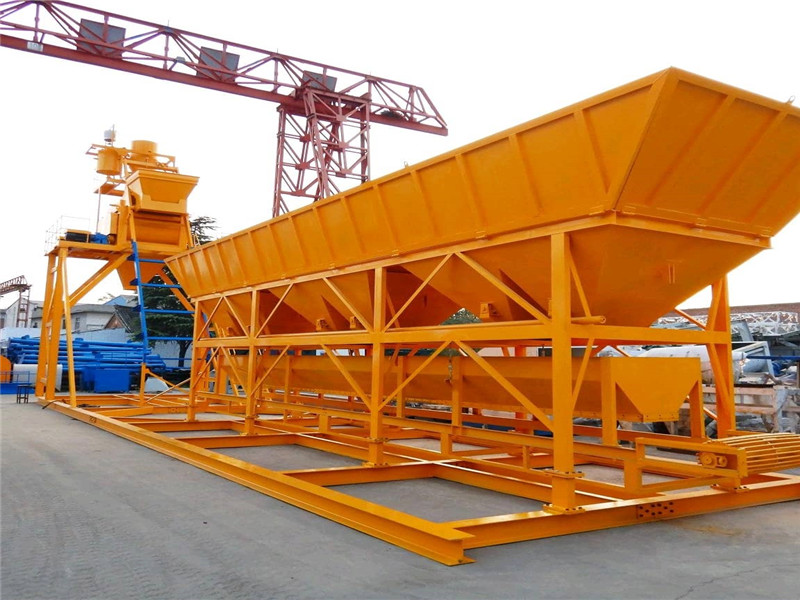

1) Overall pictures

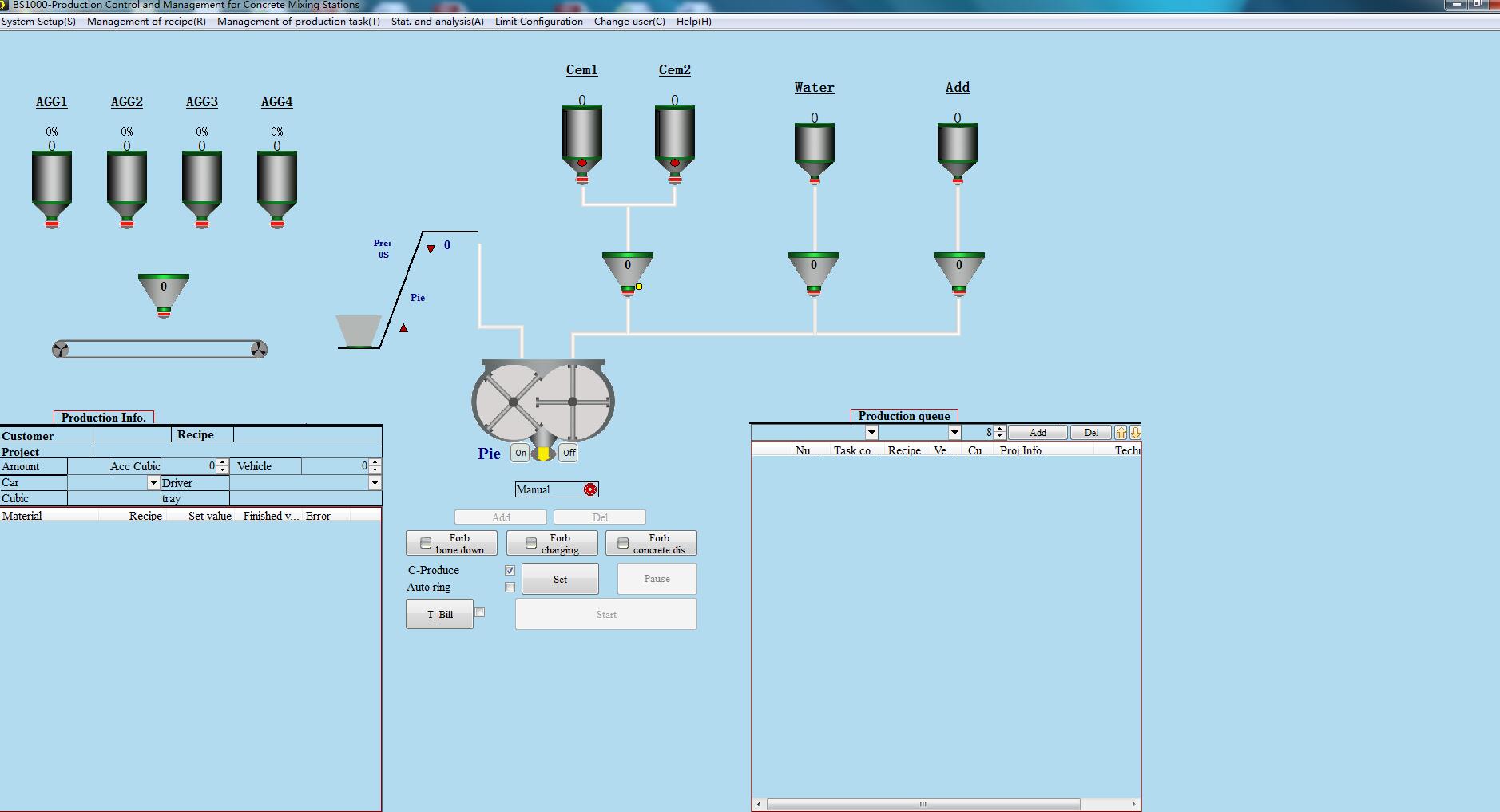

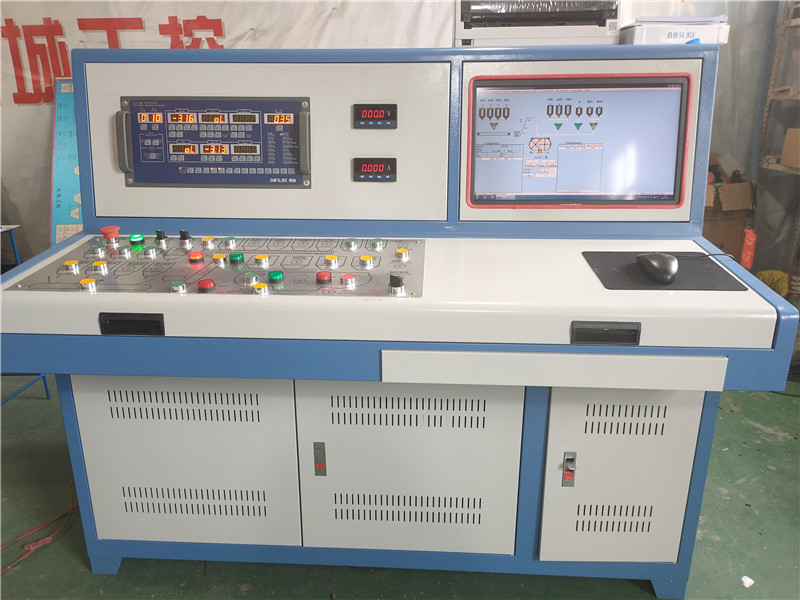

2) Fully automatic computer control system

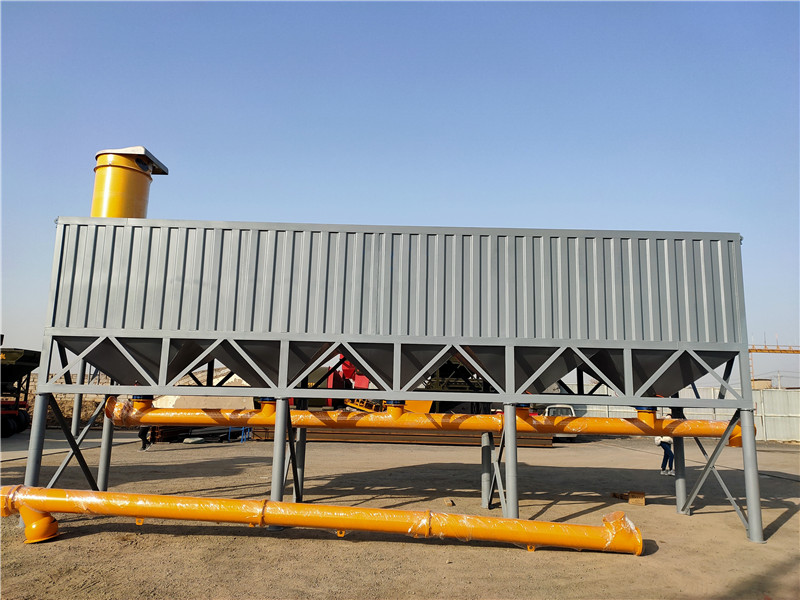

3) Horizontal cement silo
