1. General introduction of dry mix concrete batching plant

At present, most people use wet mix concrete batching plant and concrete mixer trucks. Concrete batching plant weigh all the materials and then mix them evenly; And then the concrete mixer truck will deliver concrete to job sites. Throughout the process, concrete mixer truck is mainly responsible for transportation.

Dry mix concrete batching plant only weigh all the materials as per concrete formula, and then discharge them into concrete mixer truck. The process of mixing all materials is done in concrete mixer truck. Throughout the process, concrete mixer truck is responsible for both transportation and mixing.

Dry mix concrete batching plant does not have the mixing system as the one "wet mix" concrete batching plant possess. Therefore, the dry mix concrete batching plant overcomes some inherent defects of the "wet mix" concrete batching plant has, which is not only suitable for the working conditions of the wet mix concrete batching plant, but also for extreme conditions such as high temperature, high heat, high altitude and long transportation distance etc.

2. Models of dry mix concrete batching plant we have:

Model	DHZS50	DHZS60	DHZS80	DHZS120	DHZS160
Production capacity (m3/h)	50	60	80	120	160
Concrete mixer truck volume (m3)	6	8	10	12	12
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate batcher	PLD800	PLD1200	PLD1600	PLD2400	PLD3200
Max. aggregate size (mm)	60/80	60/80	60/80	60/80	60/80
Discharging height (m)	4.1	4.1	4.1	4.1	4.1
Aggregate weighing accuracy (%)	±2	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1	±1
Total weight (T)	7	12	18	25	30
Control system	Computer	Computer	Computer	Computer	Computer

3. Components of foundation free concrete batching plant:

1) aggregate batching machine;

2) aggregate loading belt conveyor;

3) cement silo;

4) screw conveyor;

5) water, cement and additive scales;

6) raw materials collecting hopper;

7) support legs;

8) central control system.

4. Photos of dry mix concrete batching plant:

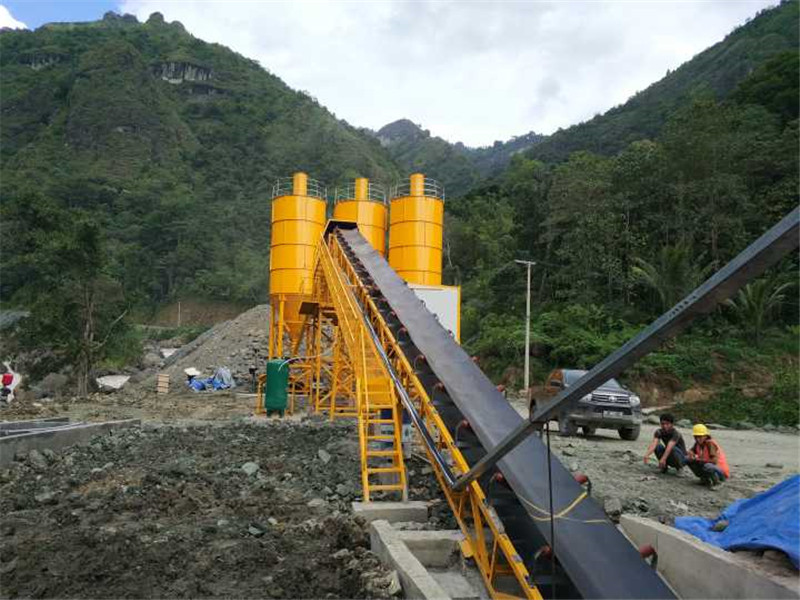

1) Dry mix concrete batching plant with cement silo

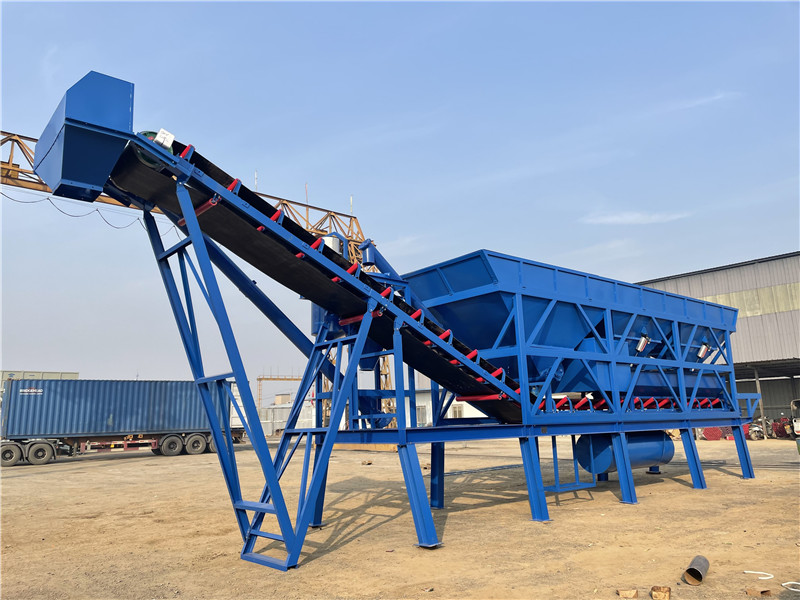

2) Dry mix concrete batching plant with cement hopper (for bag type cement)

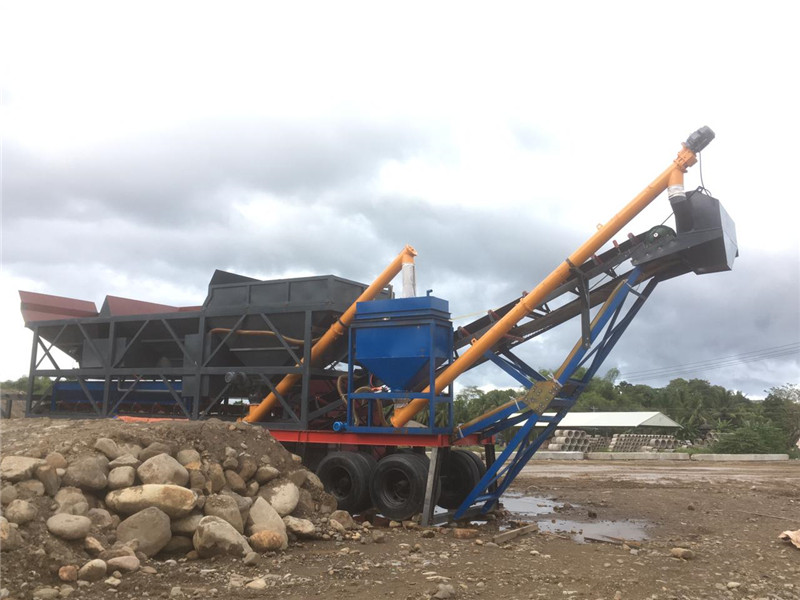

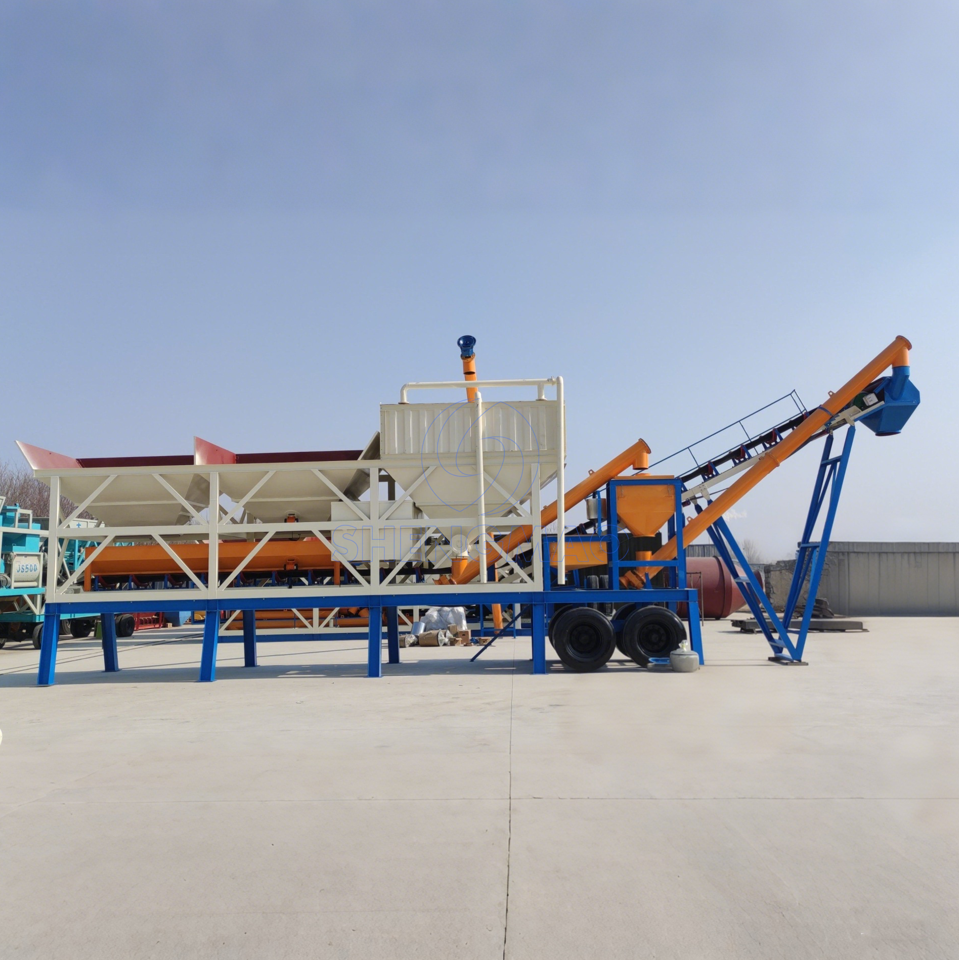

2) Mobile dry mix concrete batching plant with remote control
