1. Components of stationary/mobile compulsory asphalt mixing plant without mixing tower

1) Cold aggregate bin weith aggregate scale;

2) Slanted belt conveyor;

3) Skip hoist;

4) Drying drum;

5) Two level dust collector. Volute casing dust collector plus bag house dust collector or Cyclone dust collector plus water dust collector;

6) Twin-shaft mixer;

7) Power silo and screw conveyor;

8) Power scale;

9) Bitumen system. Including bitumen tank, bitumen pump, heat conduction oil system, bitumen pipes etc.

10) Bitumen scale;

11) Finished product bin.

12) Control system.

---

2. Specification of stationary/mobile compulsory asphalt mixing plant without mixing tower

Model	QLB20	QLB40	QLB60	QLB80	QLB100
Production Capacity (T/h)	20	40	60	80	100
Mixing Type	Batch	batch	Batch	batch	batch
Dust Remove Effect (mg/Nm3)	≤100	≤50	≤50	≤50	≤50
Fuel Consumption (kg/t) (Oil)	5.5-7	5.5-7	5.5-7	5.5-7	5.5-7
Fuel Consumption (kg/t) (Coal)	10-13	10-13	10-13	10-13	10-13
Aggregate Weighing Accuracy(%)	±1.5	±1.5	±1.5	±1.5	±1.5
Bitumen Weighing Accuracy(%)	±1	±1	±1	±1	±1
Total Power (kw)	50	75	128	165	200

---

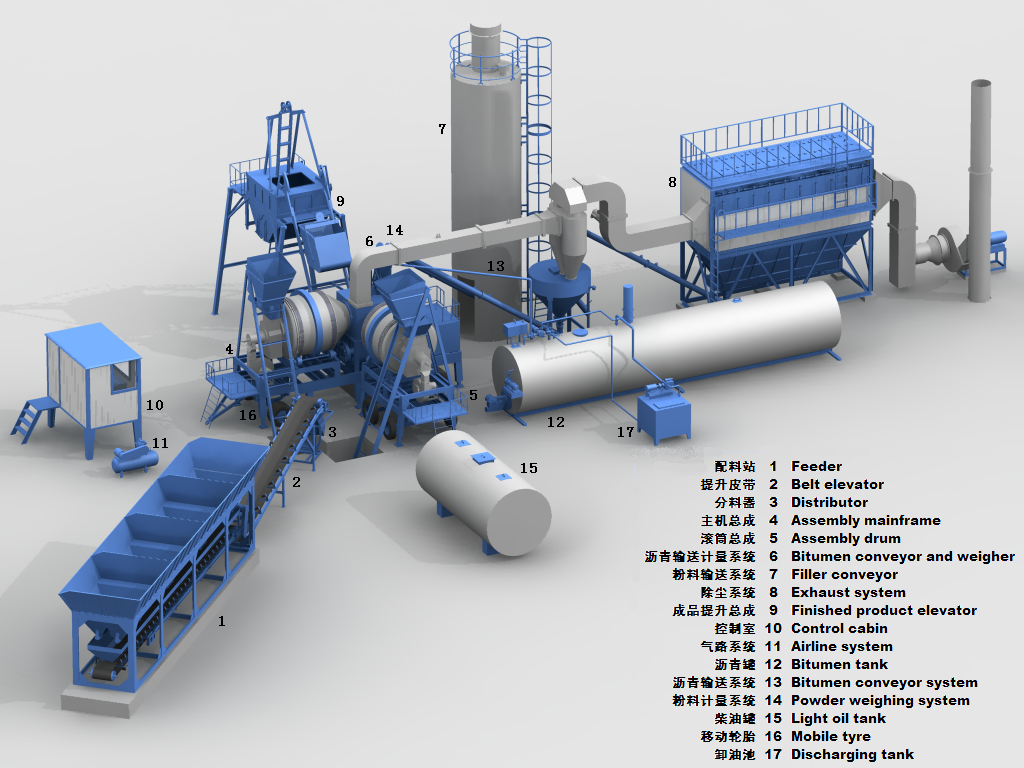

3. Pictures of stationary/mobile compulsory asphalt mixing plant without mixing tower
