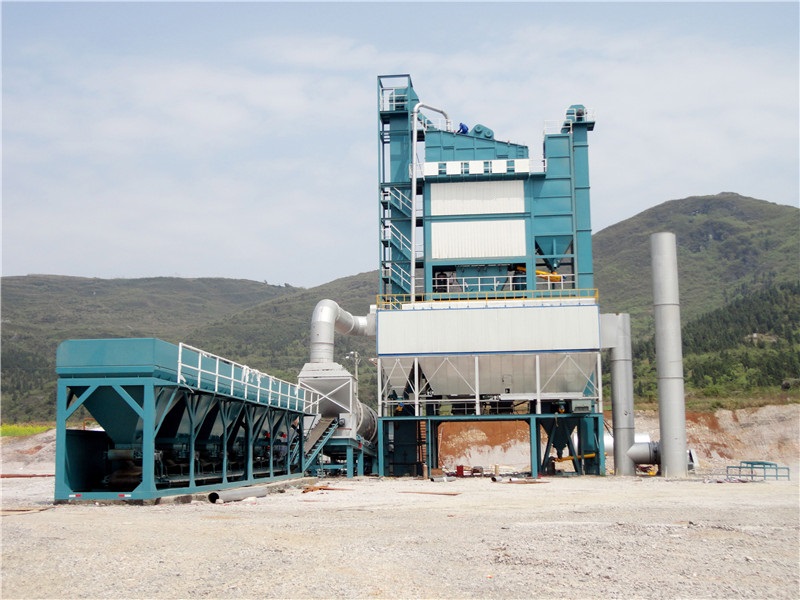

Stationary Asphalt Mixing Plant (Compulsory type)

1. Components of stationary asphalt mixing plant (Compulsory type):

1) Cold aggregate bin;

2) Slanted belt conveyor;

3) Aggregate drier;

4) Main burner;

5) Two level dust collector. Volute casing dust collector plus bag house dust collector or Cyclone dust collector plus water dust collector;

6) Hot aggregate elevator;

7) Powder elevator;

8) Bitumen system. Including bitumen tank, bitumen pump, heat conduction oil system, bitumen pipes etc.

9) Vibrating screen;

10) Aggreate trainsitional hopper and power transitional hopper;

11) Aggregate scale, bitumen scale and powder scale;

12) Twin-shaft mixer;

13) Control sytem (manual control and automatic control);

14) Mixing tower.

2. Specification of stationary asphalt mixing plant (Compulsory type):

1) Compulsory type of stationary asphalt mixing plant

Model	LB500	LB1000	LB1200	LB1500	LB2000
Production Capacity (T/h)	40	80	100	120	160
Mixer Capacity (kg)	750	1000	1200	1500	2000
Dust Remove Effect (mg/Nm³)	≤20	≤20	≤20	≤20	≤20
Fuel Consumption (kg/t) (Oil)	5.5-7	5.5-7	5.5-7	5.5-7	5.5-7
Fuel Consumption (kg/t) (Coal)	10	10	10	10	10
Aggregate Weighing Accuracy (%)	±0.5	±0.5	±0.5	±0.5	±0.5
Filler Weighing Accuracy (%)	±0.25	±0.25	±0.25	±0.25	±0.25
Bitumen Weighing Accuracy (%)	±0.25	±0.25	±0.25	±0.25	±0.25
