120t/h asphalt mixing plant
1. specification of 120t/h asphalt plant
Model | LB1500 | |
Type | Hot Mix | |
Mixer | 1500kg/batch | |
Production capacity | 120 T/H (Standard Working Condition) | |
Standard condition | Environment temperature: 200C; standard atmospheric pressure; average water content of cold aggregate is 5%; hot aggregate temperature is 1600C; production circle is 45 seconds. | |
Factors that are related to production capacity | 1.Average water content means the surface water content of cold aggregates; the inside water content will affect the production capacity of drying drum. | |
2.Atmosphere temperature around the machine | ||
3.The production capacity includes the weight of powder and bitumen; | ||
4.Aggregate density; | ||
5.The aggregates delivered to mixer should have correct ratio; | ||
6.Pooder density; | ||
7.The aggregate can’t be loose or porous; | ||
8.The altitude; | ||
Weighing Precision | Stone | ±0.5% |
Powder | ±0.25% | |
Bitumen | ±0.25% | |
Dust Emission load | ≤50mg/Nm³ | |
Temperature stability | Hot aggregate discharging temperature stability: ±9℃ | |
Finished product material discharging temperature stability: ±6℃ | ||
Working noise | ≤85db(A) | |
Hot Asphalt Temperature | 160℃(adjustable) | |
cycling time | 45S | |
Operation | Full Auto/Manual Operation | |
Working Noise | ≤85db(A) | |
Overall size | 50m*40m*16m | |
Installation Power | 380kw | |

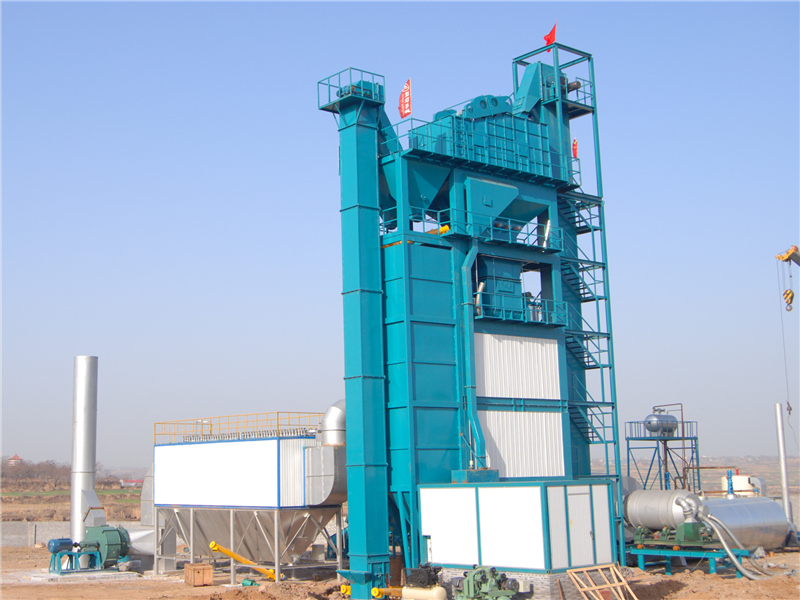

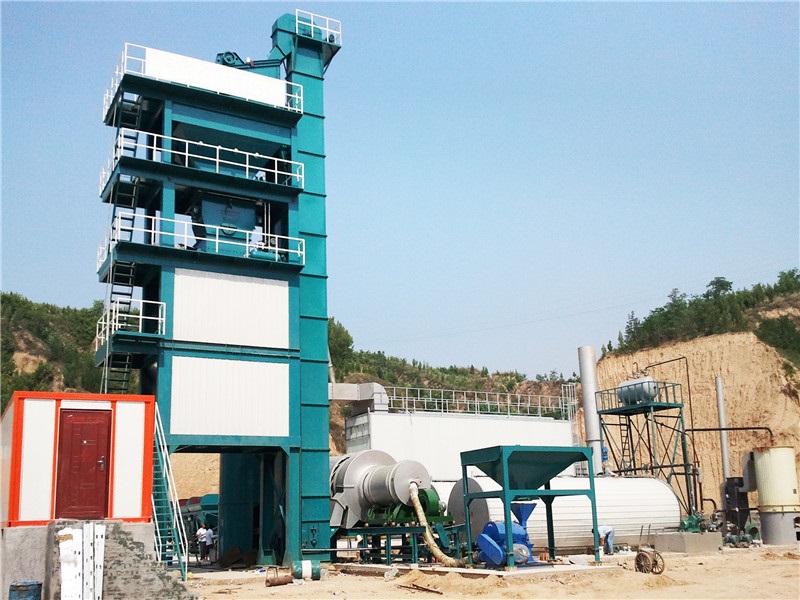

2. More pictures of 120t/h asphalt plant
