80t/h asphalt mixing plant
1. Specification of 80t/h asphalt mixing plant
Model | LB1000 | |
Type | Hot Mix | |
Mixer | 1000kg/batch | |
Production capacity | 80 T/H (Standard Working Condition) | |
Standard condition | Environment temperature: 200C; standard atmospheric pressure; average water content of cold aggregate is 5%; hot aggregate temperature is 1600C; production circle is 45 seconds. | |
Factors that are related to production capacity | 1.Average water content means the surface water content of cold aggregates; the inside water content will affect the production capacity of drying drum. | |
2.Atmosphere temperature around the machine | ||
3.The production capacity includes the weight of powder and bitumen; | ||
4.Aggregate density; | ||
5.The aggregates delivered to mixer should have correct ratio; | ||
6.Pooder density; | ||
7.The aggregate can’t be loose or porous; | ||
8.The altitude; | ||
Weighing Precision | Stone | ±0.5% |
Powder | ±0.25% | |
Bitumen | ±0.25% | |
Dust Emission load | ≤50mg/Nm³ | |
Temperature stability | Hot aggregate discharging temperature stability: ±9℃ | |
Finished product material discharging temperature stability: ±6℃ | ||
Working noise | ≤85db(A) | |
Hot Asphalt Temperature | 160℃(adjustable) | |
cycling time | 45S | |
Operation | Full Auto/Manual Operation | |
Working Noise | ≤85db(A) | |
Overall size | 50m*40m*16m | |
Installation Power | 300kw | |
2. Equipment list of 80t/h asphalt mixing plant
1) Cold aggregate bin;
2) Slanted belt convyor;
3) Drying drum;
4) Hot aggregate bucket elevator;
5) Vibrating screen;
6) Scales: hot aggregate scale; bitumen scale and filler scale;
7) Twin-shaft mixer;
8) Filter: primary volute casing filter and secondary bag house filter;
9) Bitumen tank;
10) Powder silo;
11) Burner. Based on the requirement of client, we can provide coal, diesel and gas burner;
12) Automatic control system.

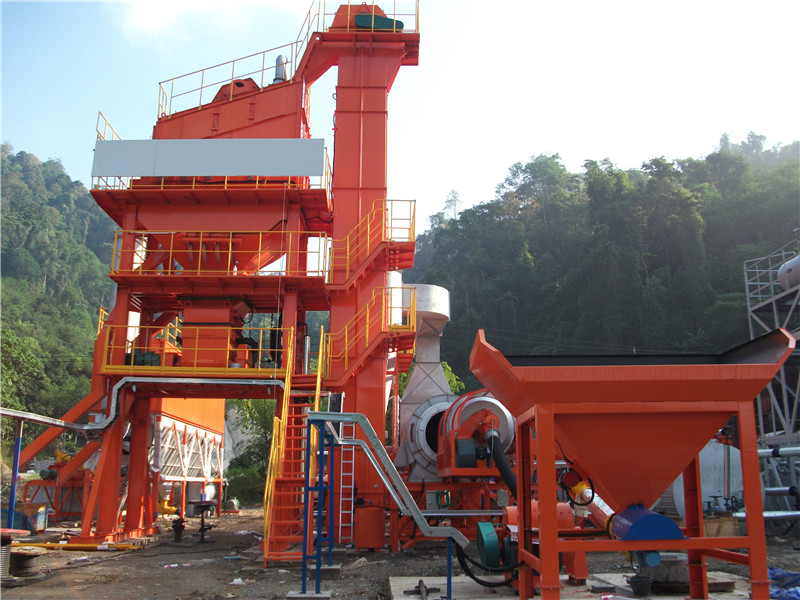

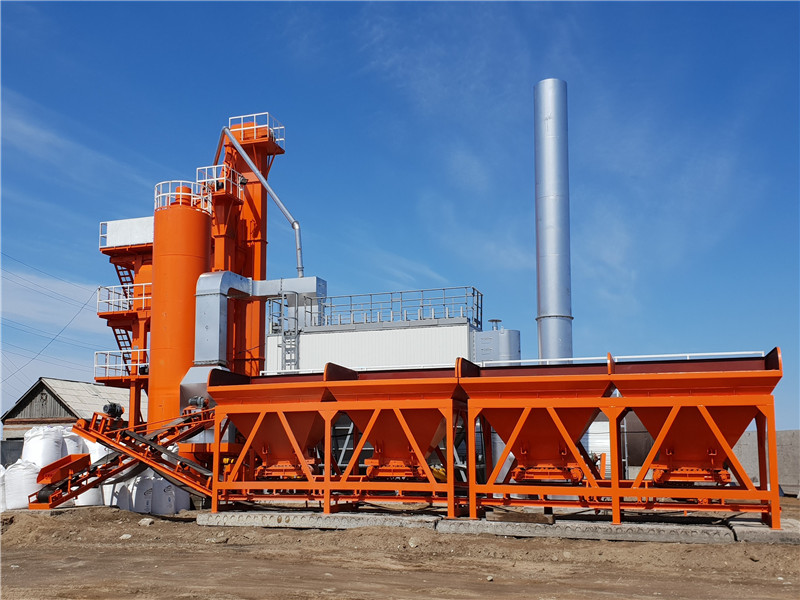

3. Pictures of 80t/h asphalt mixing plant
