FHZS35 foundation free concrete batching plant manufacturer
1. Components of FHZS35 foundation free concrete batching plant
1) PLD1200 aggregate batching machine with 3 bins;
2) JS750 twin-shaft concrete mixer;
3) Water, cement and additive scales;
4) One set 50T horizontal cement silo;
5) One set 219mm*8m screw conveyor;
6) One set air compressor with air pipes;
7) Fully automatic computer control system in English, Spanish, Russia or French;
8) Container type control room.
2. Specification of FHZS35 foundation free concrete batching plant
Model | FHZS35 |
Rated Productivity | 35m3/h |
Production capacity per batch | 0.75m3 |
Concrete mixer | JS750 |
Aggregate Feeding Mode | Skip hoist |
Batching Machine | PLD1200 |
Screw Conveyor | φ219*8m |
Max. Aggregate Diameter | 80mm |
Measuring Scope & Accuracy of Aggregate | ±2% |
Measuring Scope & Accuracy of Cement | ±1% |
Measuring Scope & Accuracy of Water （by flow meter） | ±1% |
Additive Weighing Precision | ±1% |
Discharging Height | 3.8 m |
Total Weight | 10,700Kg |
Control system | Computer control system |

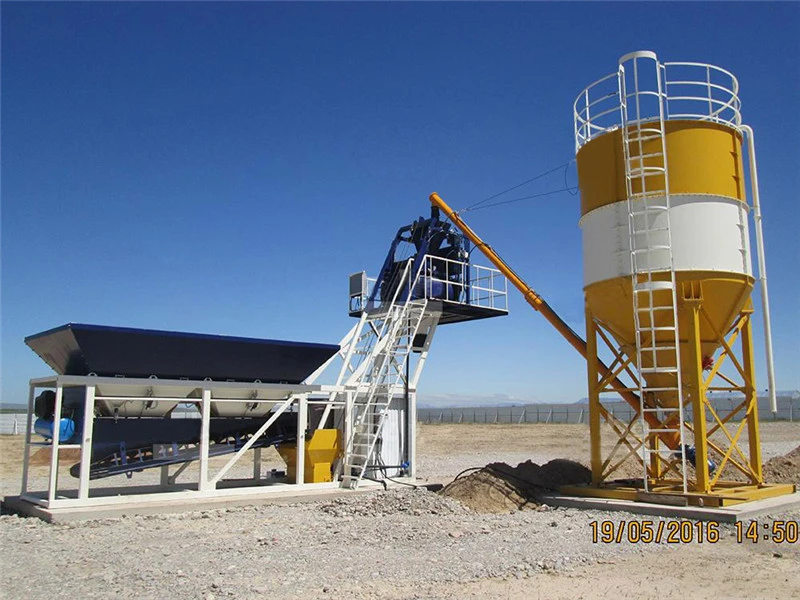

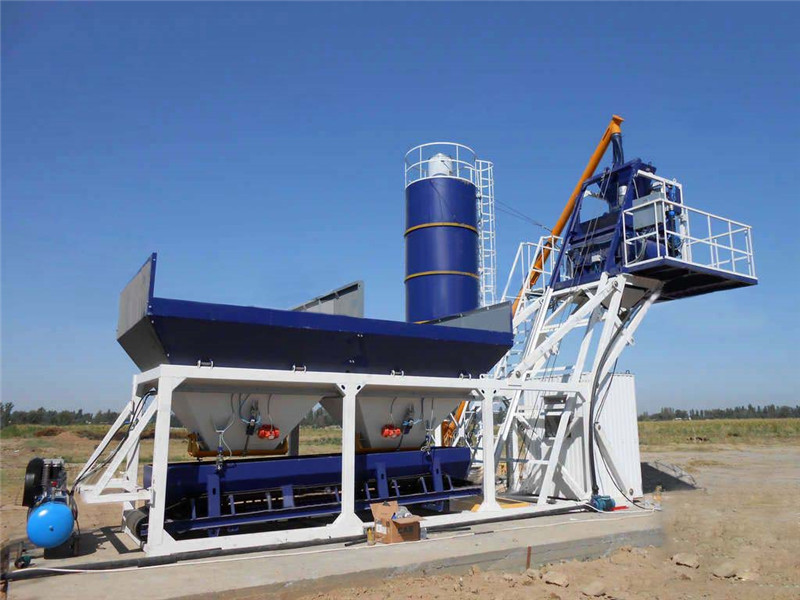

3. Pictures of FHZS35 foundation free concrete batching plant
For more details and quotations about our FHZS35 foundation free concrete batching plant, welcome to contact us.
