80t/h drum type mobile asphalt mixing plant
MDHB80
Delivery
EXW,FOB,DAF,CIF,CIP
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
25Day
Quantity:
US $135000.00 - US $145000.00 / set
1. Specification of 80T/H drum type mobile asphalt mixing plant
Model | MDHB-80 |
Type | Continuous Hot Mix |
Capacity | 80 Tons Per Hour (Standard Working Condition-Part IV) |
Drying & Mixing Drum | Φ1500*6650mm |
Fuel Consumption | diesel consumption: 5.5-7.0 kg /ton |
Hot Asphalt Temperature | 130℃-165℃(adjustable) |
Air Emissions | ≤100mg/Nm³ |
Working Noise | ≤70db(A) |
Operation | Manual Operation |
Installation Power | 142kw |
Electrical Design | 220V/380V-50Hz(adjustable) |
Plant Covering Area | Length: 30m, width: 20m, max. height point: 8m |
Documents | Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate |

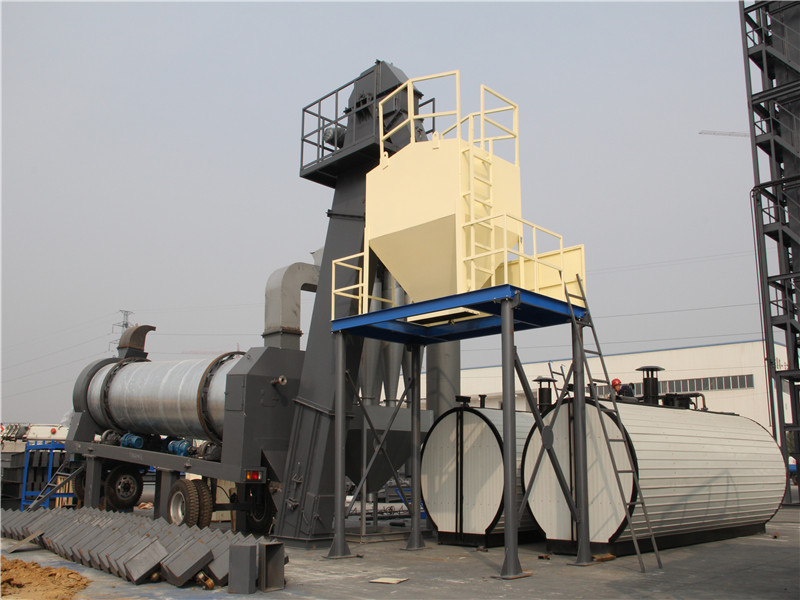

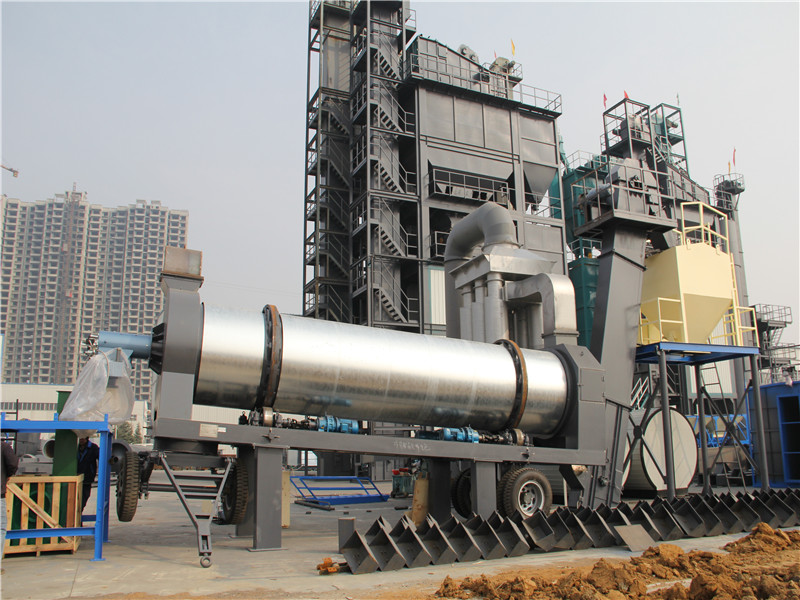

1. Pictures of 80T/H drum type mobile asphalt mixing plant
