YHZM20 mobile concrete batching plant

YHZM20

Delivery

EXW,FOB,CIF,DAF,CIP

minimum order

1 set

Supply Ability

15set / Month

Country of Origin

China

Stock Time

10Day

Quantity:

US $29000.00 - US $35000.00 / set

Contact Now

add to cart

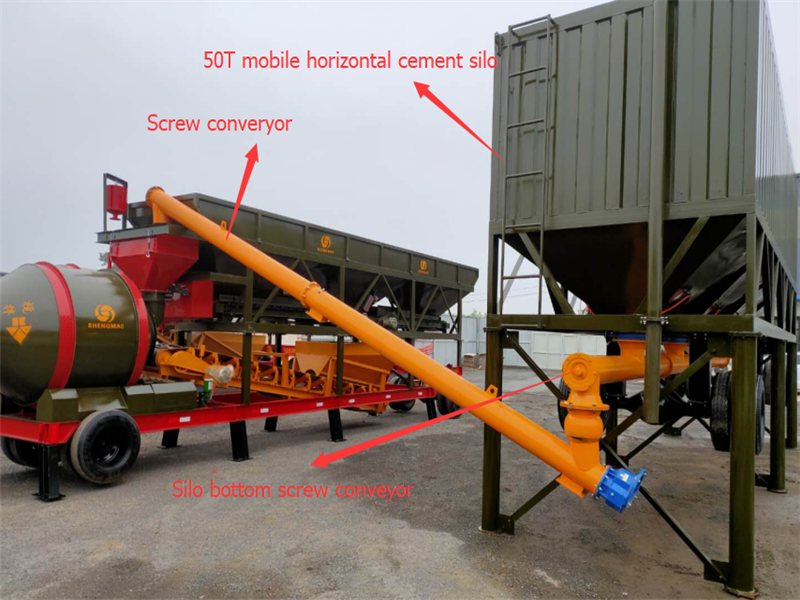

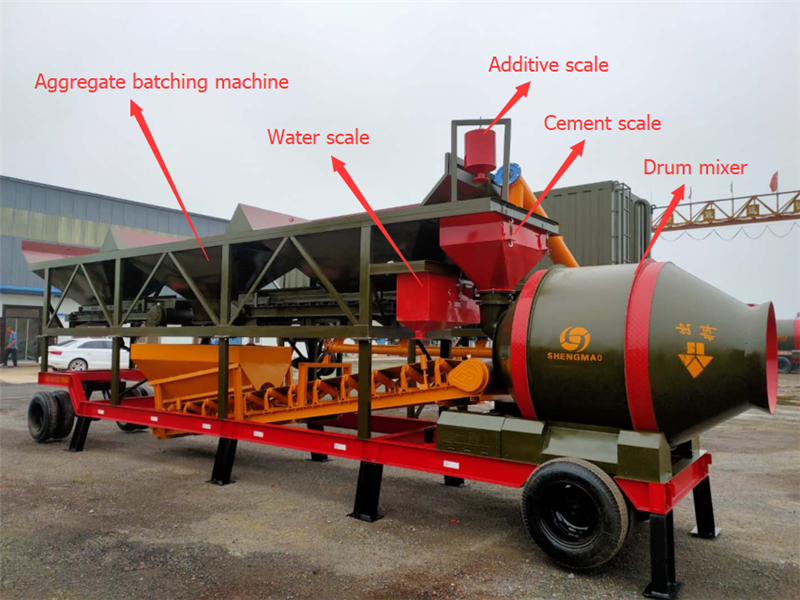

1. Components of YHZM20 mobile concrete batching plant

1) JZM500 drum concrete mixer;
2) PLD800 aggregate batcher with 3 bins;
3) Water, cement and additive scales;

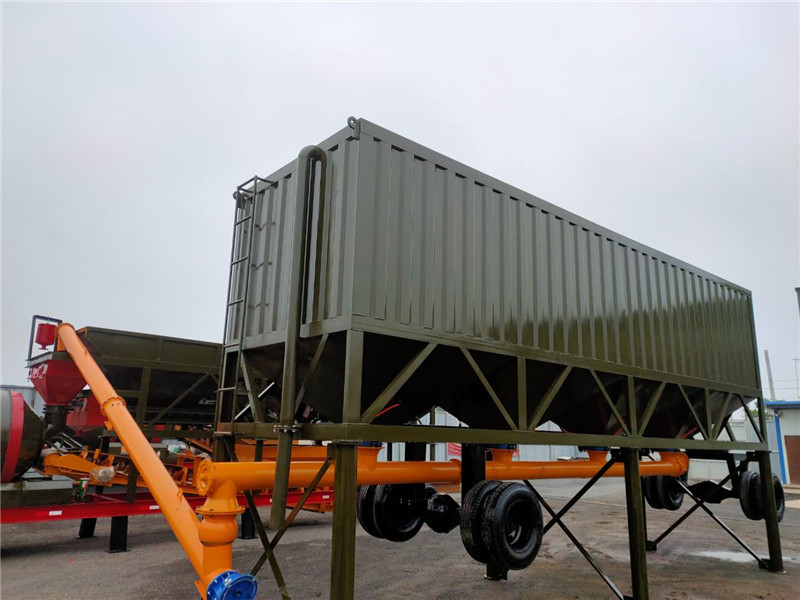

4) One set 50T mobile horizontal cement silo;
5) One set 219mm*8m screw conveyor;
6) Pneumatic system;
7) Panel or computer controL system in English.

2. Specification of YHZM20 mobile concrete batching plant

Model	YHZM20
Production capacity (m3/h)	20
Concrete mixer	JZM500 drum mixer
Aggregate feeding mode	Belt conveyor
Max. Aggregate size (mm)	80/60
Concrete discharging height (m)	1.5
Aggregate weighing accuracy (%)	+/-2
Cement weighing accuracy (%)	+/-1
Water weighing accuracy (%)	+/-1
Additive weighing accuracy (%)	+/-1
Control system	Panel or computer control
Total power (kw)	42
Total weight (T)	12
