25m3/h YHZS25 mobile concrete batching plant
YHZS25
Delivery
EXW,FOB,CIF,DAF,CIP
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
20Day
Quantity:
US $49000.00 - US $57000.00 / set
1. Components of YHZS25 mobile concrete batching plant
1) JS500 twin-shaft concrete mixer;
2) PLD800 aggregate batcher with 3 bins;
3) Water, cement and additive scales;
4) 50T cement silo;
5) Screw conveyor;
6) Pneumatic system;
7) Panel or computer control system.
2. Specification of YHZS25 mobile concrete batching plant
| Model | YHZS25 |
| Production capacity (m3/h) | 25 |
| Concrete mixer | JS500 twin-shfat mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 3.8 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | Panel or computer control |
| Total power (kw) | 60 |
| Total weight (T) | 14 |

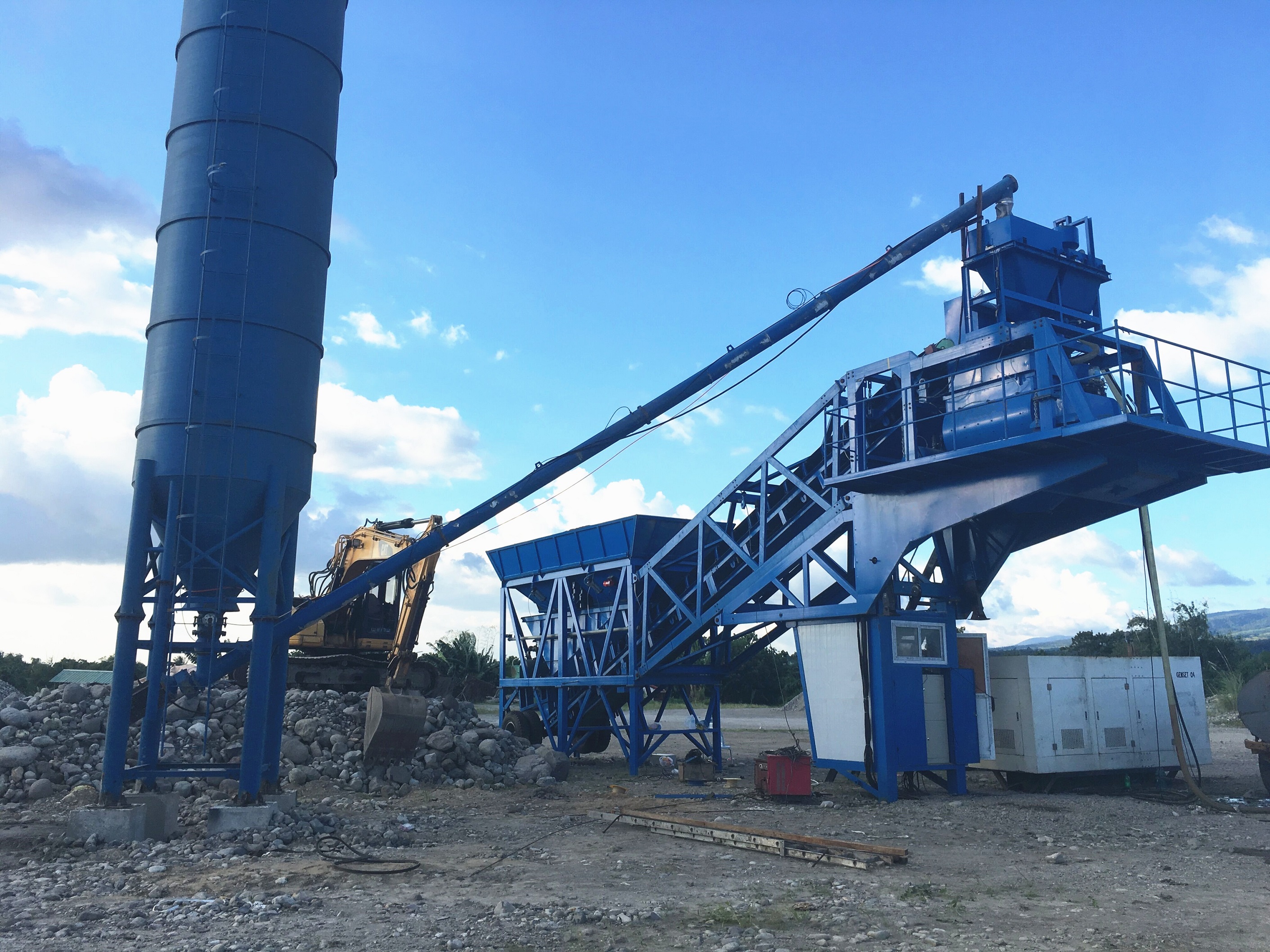

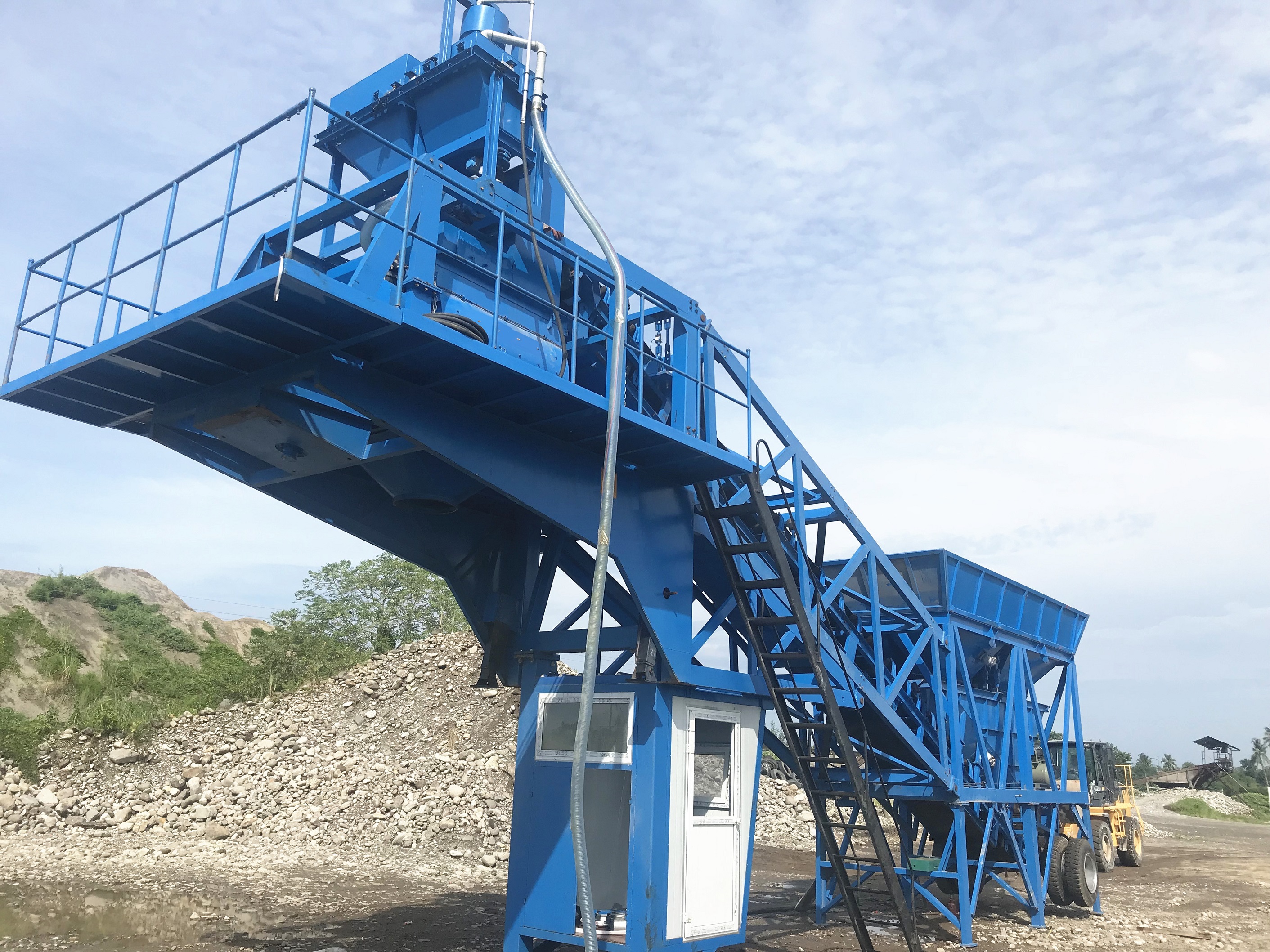

3. Pictures of YHZS25 mobile concrete batching plant
