HZS180 180m3/h concrete batching plant
HZS180
Delivery
EXW,FOB,CIF,DAF,CIP
minimum order
1 set
Supply Ability
2set / Month
Country of Origin
China
Stock Time
30Day
Quantity:
US $165000.00 - US $185000.00 / set
1. Components of HZS180 concrete batching plant
1. Main parts of HZS180 concrete batching plant
1) SICOMA MAO4500/3000 twin-shaft concrete mixer ;
2) PLD4800 aggregate batcher with 4 bins;
3) Water, cement and additive scales;
4) Two sets of 200T cement silo;
5) Two sets of 8m*323mm screw conveyor;
6) Pneumatic system;
7) Computer control system.
2. Specification of HZS180 concrete batching plant
| Model | HZS180 |
| Production capacity (m3/h) | 180 |
| Concrete mixer | MAO4500/3000 twin-shfat mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 3.8 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | Computer control |
| Total power (kw) | 260 |
| Total weight (T) | 88 |

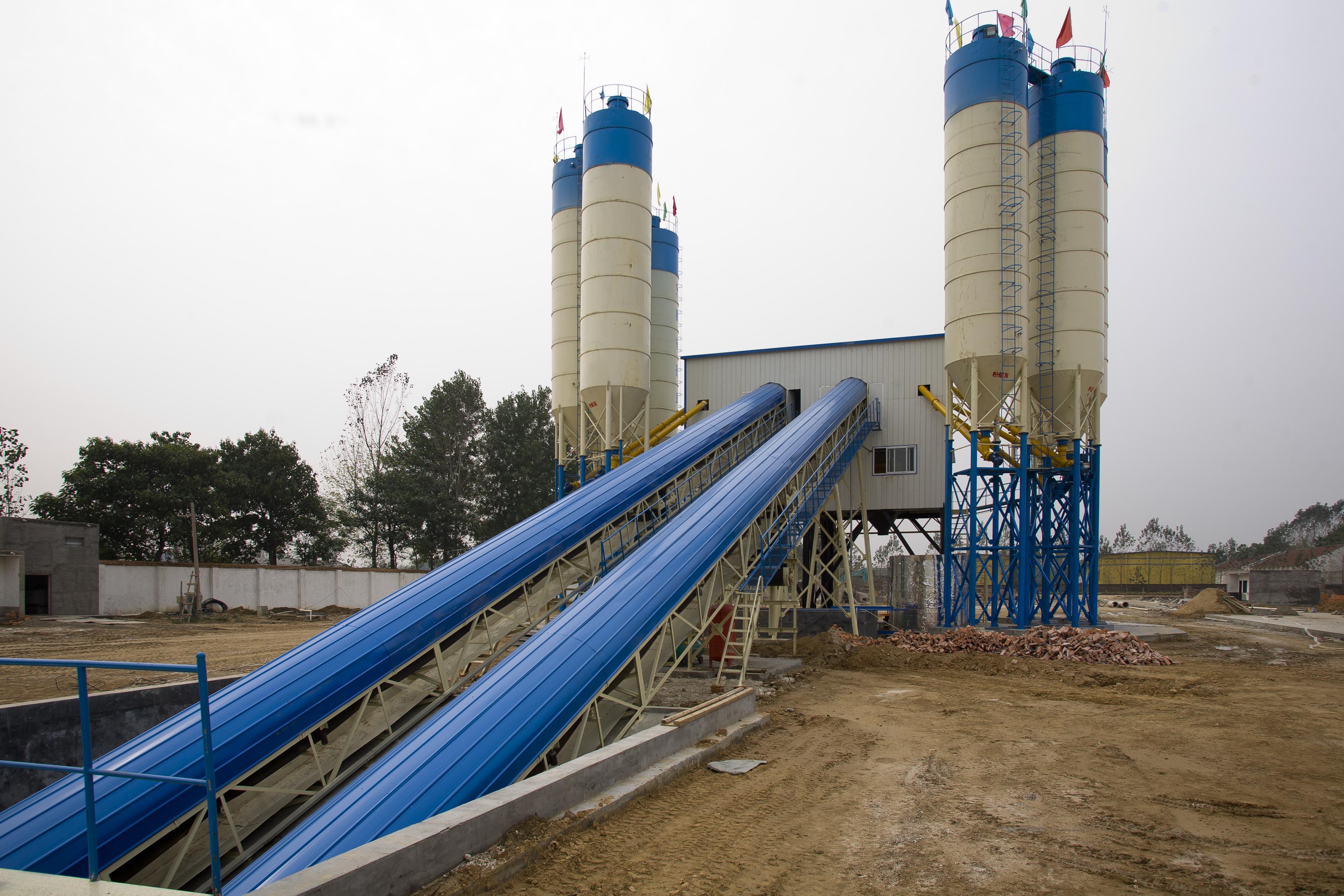

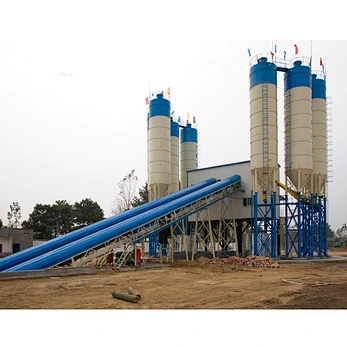

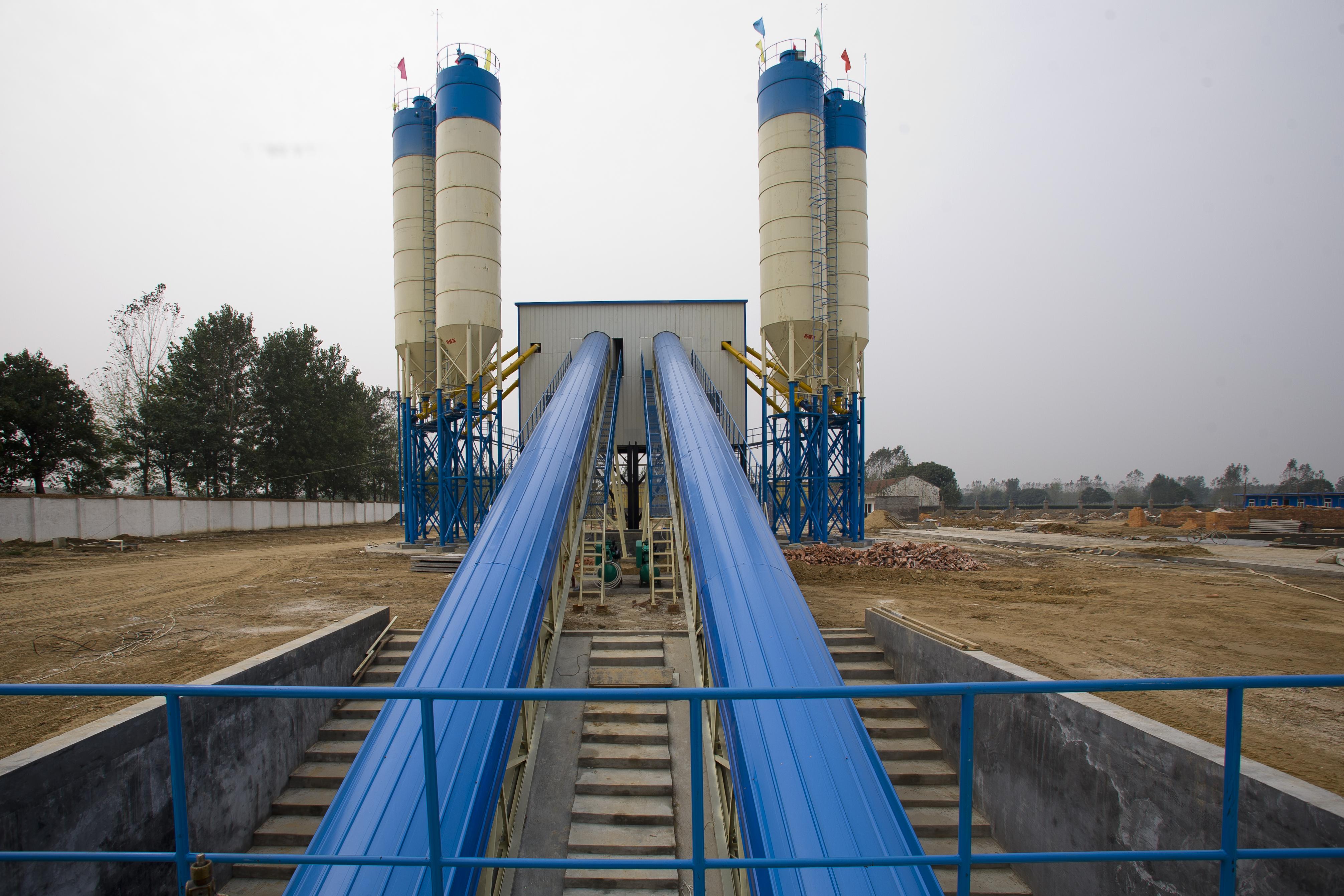

3. Pictures of HZS180 concrete batching plant
