90m3/h mobile concrete batching plant
NYHZS90
Delivery
EXW, FOB, CIF, CIP
minimum order
1 set
Supply Ability
5set / Month
Country of Origin
China
Stock Time
15Day
Quantity:
US $57000.00 - US $65000.00 / set
1. Components of our NYHZS90 mobile concrete batching plant
1). JS1500 twin-shaft concrete mixer;
2). PLD2400 aggregate batching machine;
3). Water, cement and additive scales;
4). 100t mobile horizontal cement silo;
5). 273mm*6m Screw conveyor;
6). Fully automatic computer control system.
2). PLD2400 aggregate batching machine;
3). Water, cement and additive scales;
4). 100t mobile horizontal cement silo;
5). 273mm*6m Screw conveyor;
6). Fully automatic computer control system.
2. Specification of our NYHZS50 mobile concrete batching plant
| Model | NYHZS90 |
| Production capacity (m3/h) | 90 |
| Concrete mixer | JS1500 twin-shfat mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 0.5 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | Computer control |
| Total power (kw) | 95 |
| Total weight (T) | 22 |

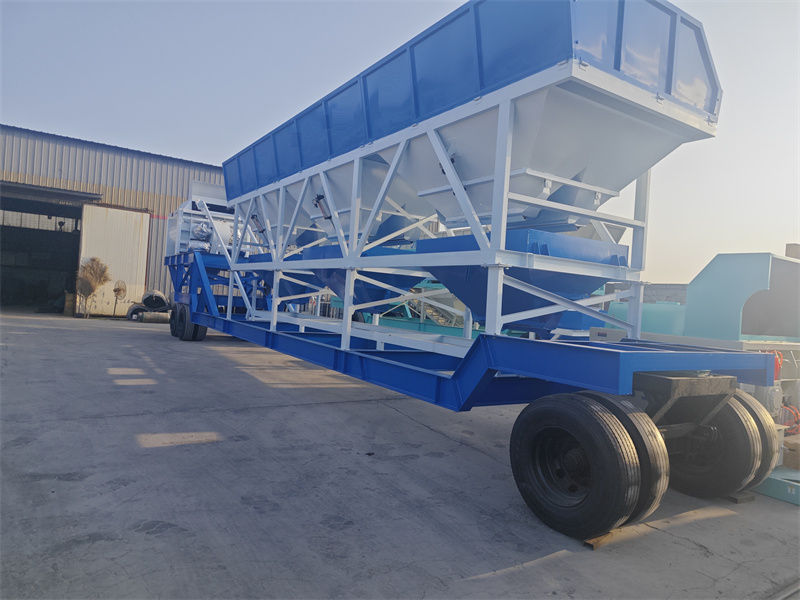

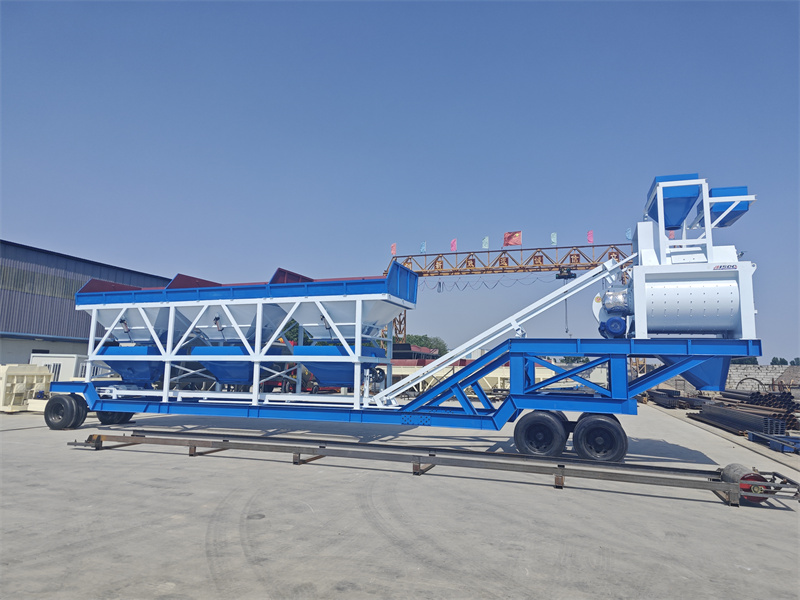

3. Pictures of our NYHZS90 mobile concrete batching plant
