35m3/h NYHZS35 mobile concrete batching plant manufacturerprice
NYHZS35
Delivery
EXW, FOB, CIF, CIP
minimum order
1 set
Supply Ability
8set / Month
Country of Origin
China
Stock Time
15Day
Quantity:
US $42000.00 - US $48000.00 / set
1. Components of our NYHZS35 mobile concrete batching plant
1). JS750 twin-shaft concrete mixer;
2). PLD750 aggregate batching machine;
3). Water, cement and additive scales;
4). 50t mobile horizontal cement silo;
5). 219mm*6m Screw conveyor;
6). Fully automatic computer control system.
2). PLD750 aggregate batching machine;
3). Water, cement and additive scales;
4). 50t mobile horizontal cement silo;
5). 219mm*6m Screw conveyor;
6). Fully automatic computer control system.
2. Specification of our NYHZS35 mobile concrete batching plant
| Model | NYHZS35 |
| Production capacity (m3/h) | 35 |
| Concrete mixer | JS750 twin-shfat mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 0.5 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | Computer control |
| Total power (kw) | 76 |
| Total weight (T) | 15 |

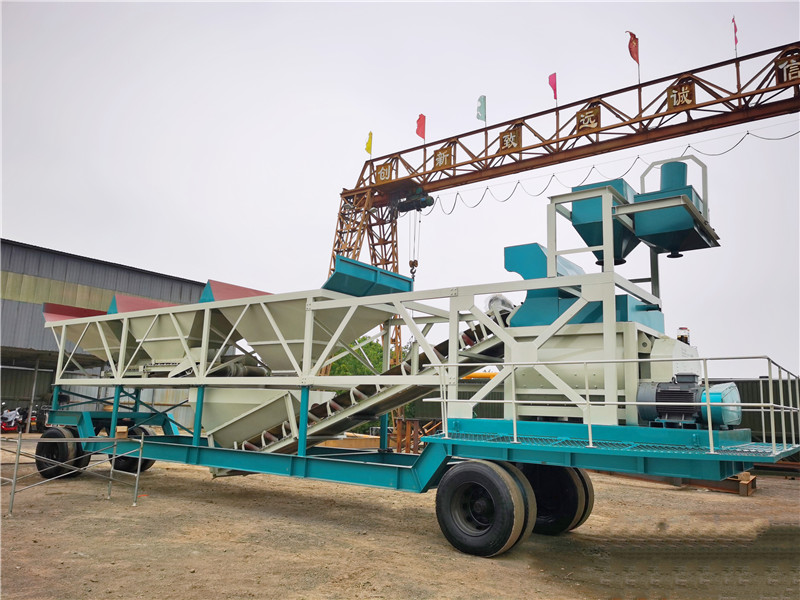

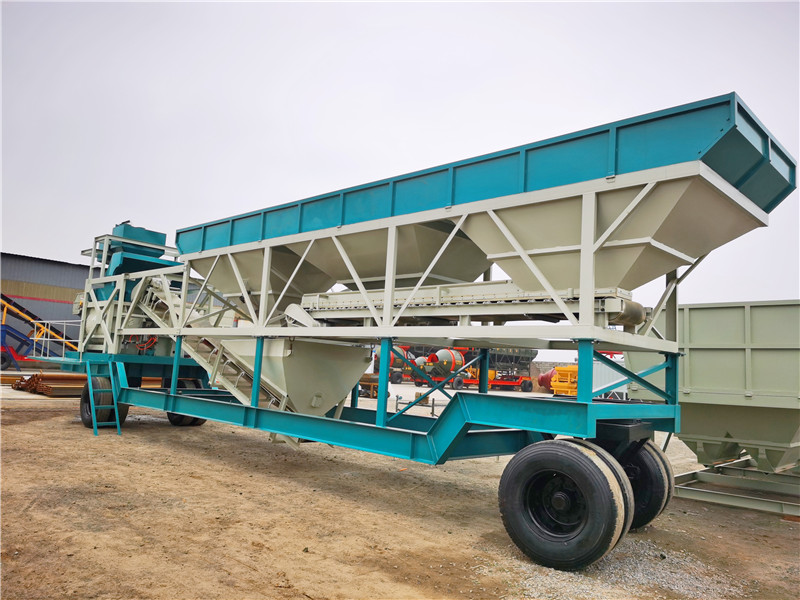

3. Pictures of our NYHZS35 mobile concrete batching plant
