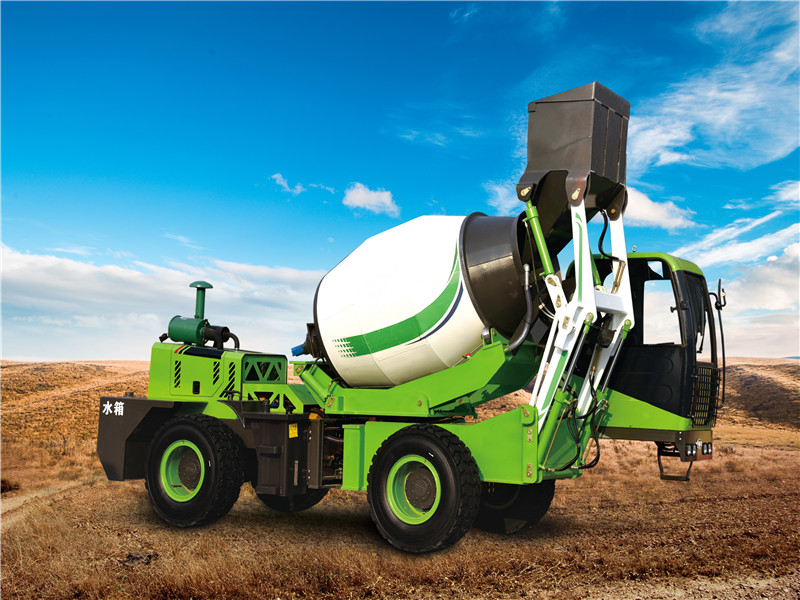

3.5m3 mobile self loading concrete mixer

Item

SLM3.5A Self Loading Concrete Mixer

Drum Volume

4,740 L

Mixing Capacity Per Batch

3.5 m3

Productivity

14 m3/h

Diesel Engine Brand

YUCHAI 4105 Supercharged Engine

Diesel Engine Power

85 kw

Gearbox Model

ZL-280 Power Shift Gearbox

Gear Shift

4 forward 4 back

Fuel Tank

75 L

Total Hydraulic System Capacity

75 L

Oil Tank

16 L

Hydraulic Reducer

HJ80-43

Hydraulic Pump

CBGQ 2040/2080

Hydraulic Motor

BM5-160

Water Tank Volume

620 L

Water Supply

Hydraulic Water Pump

Water Weighing

Time Relay

Wheelbase

2,900 mm

Drive Form

Torque Converter

Drum Rotation Angle

270⁰

Drum Rotary Speed

13 r/min

Max. Speed

30 km/h

Max. Gradeability

30⁰

Mini. Turning Radius

5,300 mm

Mini. Ground Clearance

380 mm

Overall Dimensions (L*W*H)

7,830*2,680*4,170 mm

Total Weight

7,500 kg

Tire

23.5/70Radial Tire

Wheel Side Reduction Bridge

1 Set

Camera

3 Sets

Air Conditioner

1 Set

Aggregate & Cement Weighing System

1 Set
