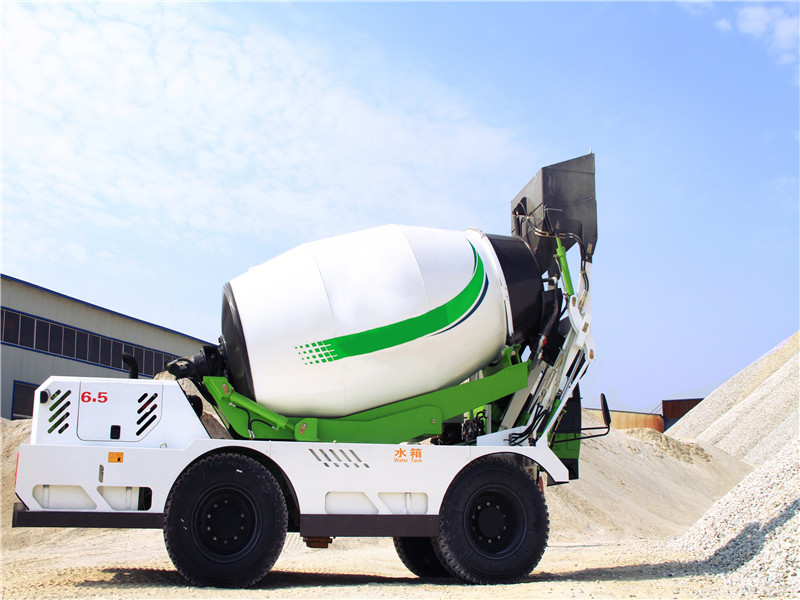

6.5m3 self loading mixing truck

Item

SLM6.5Self Loading Concrete Mixer

Drum Volume

9,000 L

Mixing Capacity Per Batch

6,5 m3

Productivity

26 m3/h

Diesel Engine Brand

Weichai 6105 Supercharged Engine

Diesel Engine Power

92 kw

Gearbox Model

ZL-315 Power Shift Gearbox

Gear Shift

4 forward 4 back

Fuel Tank

370 L

Hydraulic Oil Tank

278 L

Engine Oil Tank

16 L

Reducer

KY07-5-J

Hydraulic Pump

Interpump

Hydraulic Motor

USA SUNNY63

Water Tank Volume

1,465 L

Water Supply

Hydraulic Water Pump

Water Weighing

Time Relay

Wheelbase

2,850 mm

Drive Form

Torque Converter

Drum Rotation Angle

290º

Drum Rotary Speed

16.5 r/min

Max. Speed

40 km/h

Max. Gradeability

45º

Mini. Turning Radius

4,800 mm

Mini. Ground Clearance

350 mm

Overall Dimensions (L*W*H)

8,450*3,050*4,830 mm

Total Weight

12.52 T

Tire

100R24 (Double High Pressure Tire)

Four Wheel Steering Drive Bridge

15 T

Camera

3 Sets

Imported Piston Motor

1 Set

Aggregate & Cement Weighing System

1 Set
