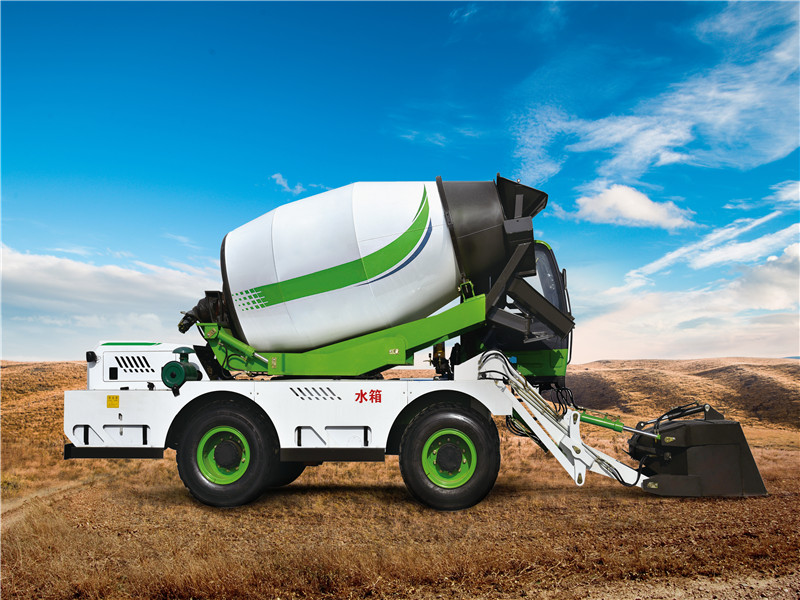

5.5m3 self loading mixer truck

Item

SLM5.5Self Loading Concrete Mixer (Two-way Driving)

Drum Volume

7,800 L

Mixing Capacity Per Batch

5,5 m3

Productivity

22 m3/h

Diesel Engine Brand

FAW XICHAI 6110 Supercharged Engine

Diesel Engine Power

110 kw

Gearbox Model

ZL-315 Power Shift Gearbox

Gear Shift

4 forward 4 back

Fuel Tank

180 L

Hydraulic Oil Tank

180 L

Engine Oil Tank

16 L

Hydraulic Reducer

HJ80-43

Hydraulic Pump

CBGQ 2050/2032

Hydraulic Motor

USA SUNNY56

Water Tank Volume

860 L

Water Supply

Hydraulic Water Pump

Water Weighing

Time Relay

Wheelbase

3,350 mm

Drive Form

Torque Converter

Drum Rotation Angle

270⁰

Drum Rotary Speed

20 r/min

Max. Speed

42 km/h

Max. Gradeability

45⁰

Mini. Turning Radius

6,200 mm

Mini. Ground Clearance

380 mm

Overall Dimensions (L*W*H)

8,450*3,100*4,580 mm

Total Weight

11.2 T

Tire

1670-22.5 Wire Bead (Front Axle Equipped with Double Tires)

Loading Axle Capacity

20 T

Camera

3 Sets

High Pressure Cleaning Pump

1 Set

Aggregate & Cement Weighing System

1 Set
