4m3 loading concrete mixer

Item

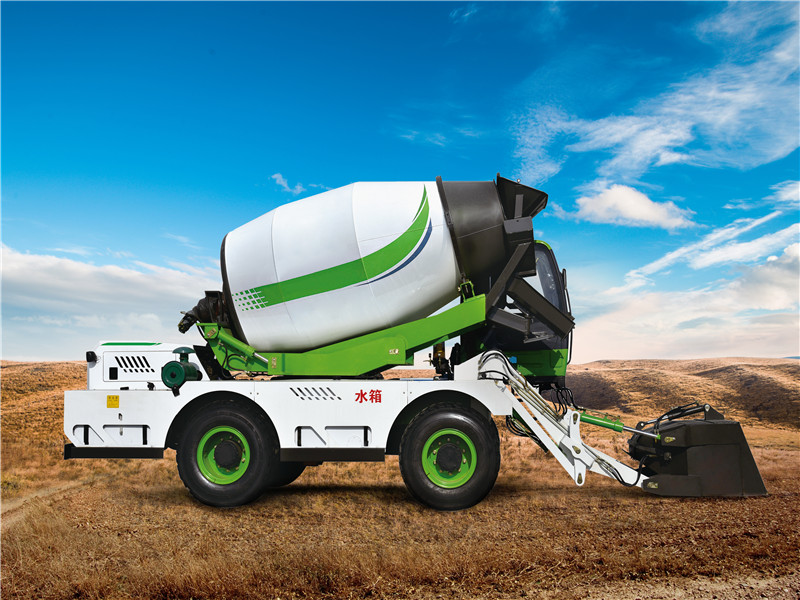

SLM4 Self Loading Concrete Mixer

Drum Volume

6,000 L

Mixing Capacity Per Batch

4 m3

Productivity

16 m3/h

Diesel Engine Brand

YUCHAI YCD4J22G

Diesel Engine Power

85 kw

Gearbox Model

ZL-280 Power Shift Gearbox

Gear Shift

4 forward 4 back

Fuel Tank

230 L

Total Hydraulic System Capacity

170 L

Oil Tank

16 L

Hydraulic Reducer

KY07-5-J

Hydraulic Pump

Interpump

Hydraulic Motor

HAA2FM56/ 61W-VTD527

Water Tank Volume

660 L

Water Supply

Hydraulic Water Pump

Water Weighing

Time Relay

Wheelbase

2,480 mm

Drive Form

Torque Converter

Drum Rotation Angle

290⁰

Drum Rotary Speed

17 r/min

Max. Speed

35 km/h

Max. Gradeability

45⁰

Mini. Turning Radius

4,800 mm

Mini. Ground Clearance

330 mm

Overall Dimensions (L*W*H)

7640*2870*4750 mm

Total Weight

9 T

Tire

1670-22.5 Wire Bead (Front Axle Equipped with Double Tires)

Loading Axle Capacity

20 T

Camera

3 Sets

High Pressure Cleaning Pump

1 Set

Aggregate & Cement Weighing System

1 Set
