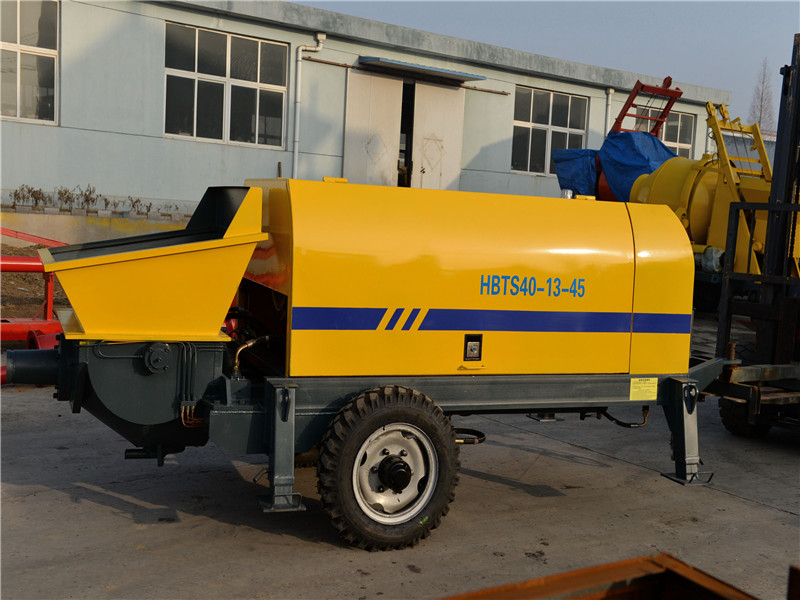

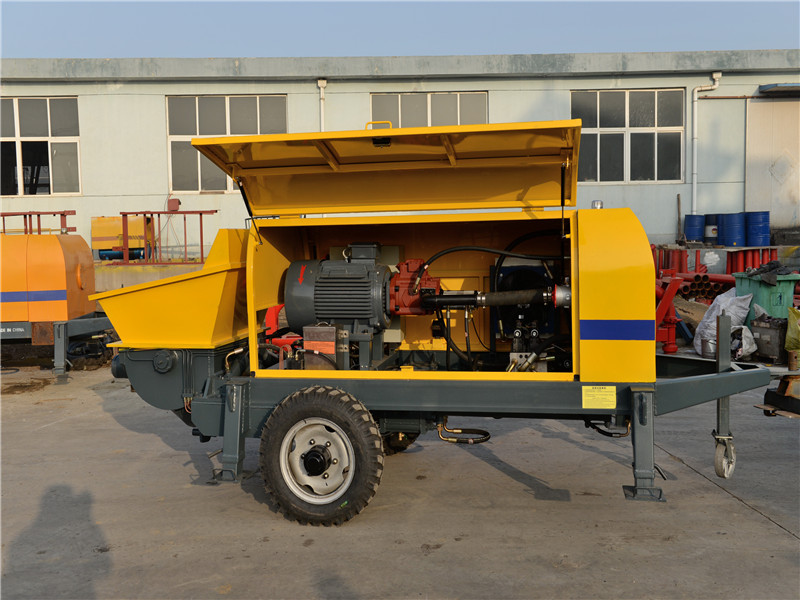

40m3/h electricity concrete pump

Items

Units

Parameters

HBTS40-13-45

Performance of the Whole Machine

Max. theoretical concrete output

m3/h

40

Main Hydraulic Pump

Korean Kawasaki K3V112

Max.concrete pumping pressure (high pressure/low pressure)

Mpa

13

Distribution valve type

S Valve

Concrete conveying cylinder bore * stroke

mm

Ф180×1100

Hopper capacity

L

400

Feeding Height

mm

1100

Outlet diameter

mm

Ф150

Motor power

kW

45

Rated rotating speed

r/min

1480

Hydraulic system

Hydraulic circuit form

Open circuit

Pumping system oil pressure

Mpa

28

Mixing system pressure

Mpa

8

Capacity of oil tank

L

370

Max. concrete deliveringdistance (Vertically/Horizontally)

m

180/600

Other

Max. aggregate diameter

mm

30-40mm

Inner diameter of delivering pipe

mm

Ф125

Outline Dimensions: length*width*height

mm

4700*1750*1600

Total weight

kg

3200
