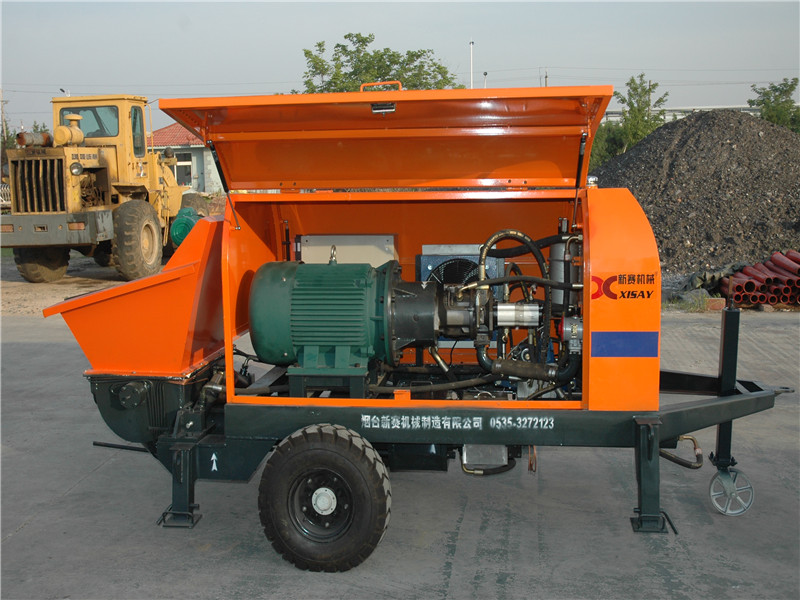

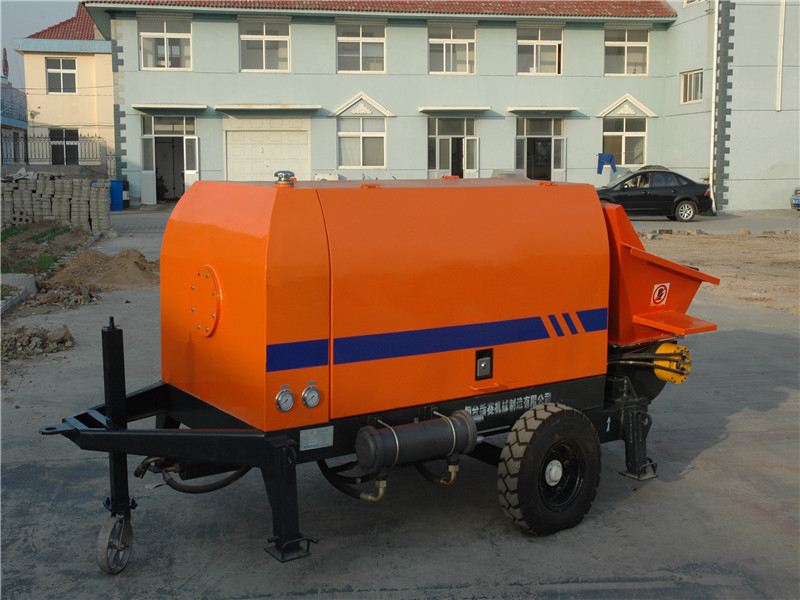

30m3/h electricity concrete pump

Items

Units

Parameters

BS30-10-56

Performance of the Whole Machine

Max. theoretical concrete output

m3/h

30

Main Hydraulic Pump

JINDA 71

Max. concrete pumping pressure

Mpa

10

Distribution valve type

S Valve

Concrete conveying cylinder bore * stroke

mm

Ф140×1200

Hopper capacity

L

400

Feeding Height

mm

1200

Outlet diameter

mm

Ф100

Power system

motor

weifang

Motor Power

kw

37kw

Hydraulic system

Hydraulic circuit form

Open circuit

Pumping system oil pressure

Mpa

26

Mixing system pressure

Mpa

6-8

Capacity of oil tank

L

260

Max. concrete delivering Distance (Vertically/Horizontally)

m

120/500

Other parameters

Max. aggregate diameter

mm

20mm

Inner diameter of delivering pipe

mm

Ф100

Outline Dimensions: length*width*height

mm

4500*1750*1600

Total weight

kg

3500
