60m3/h electricity concrete pump
HBTS60
Delivery
EXW,FOB,DAF,CIF,CIP
minimum order
1 set
Supply Ability
25set / Month
Country of Origin
China
Stock Time
15Day
Quantity:
US $31000.00 - US $35000.00 / set
1. Specification of 60m3/h electricity concrete pump
Items | Units | HBTS60-12-90 | |
Whole performance of machine | Max. delivery capacity (L/H) | m3/h | 62/27 |
Max. concrete pumping pressure(L/H) | Mpa | 7.3/12 | |
Distribution valve type | S Valve | ||
Concrete cylinder (diameter*stroke) | mm | Ф180×1300 | |
Hopper capacity*feeding height | L*mm | 400*1420 | |
Outlet diameter | mm | Ф150 | |
Power system | Electrical engine power | kw | 90 |
Rotate speed | r/min | 1480 | |
Hydraulic system | Circuit type | Open circuit | |
Pumping system pressure | Mpa | 31.5 | |
Mixing system pressure | Mpa | 6-8 | |
Capacity of oil tank | L | 370 | |
Other parameters | Max. conveying distance (vertical/ level) | m | 120/500 |
Max. aggregate diameter | mm | Slick scree: 40 | |
Inside diameter of delivering pipe | mm | Ф125 | |
Dimensions ( L*W*H) | mm | 5200*2000*2260 | |
Total weight | kg | 4500 | |

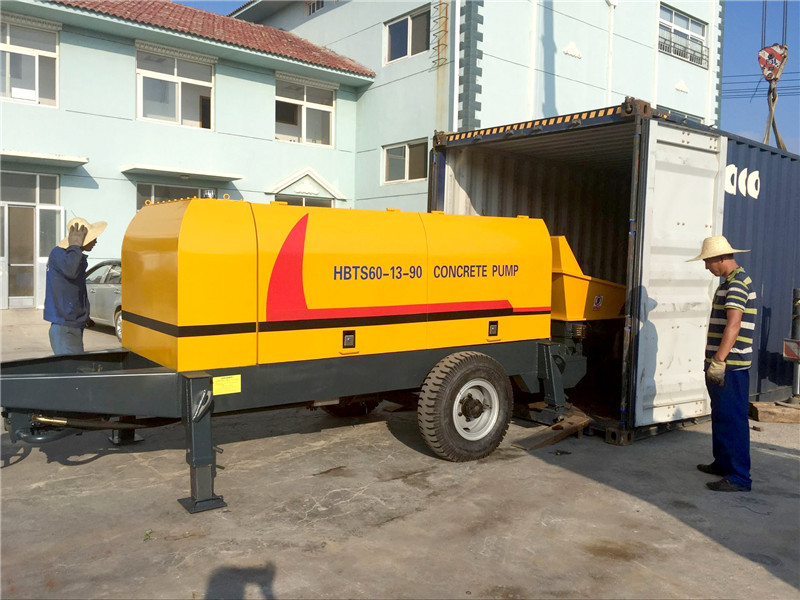

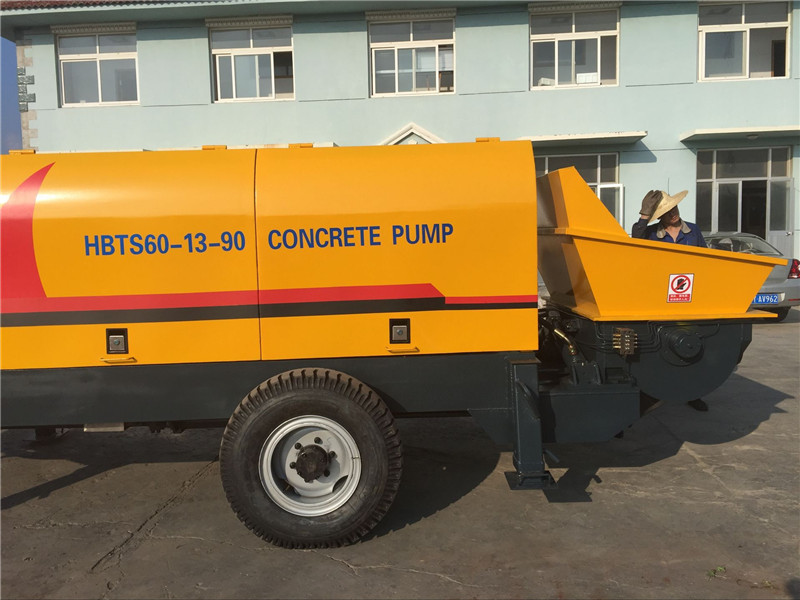

2. Picture of 60m3/h electricity concrete pump
