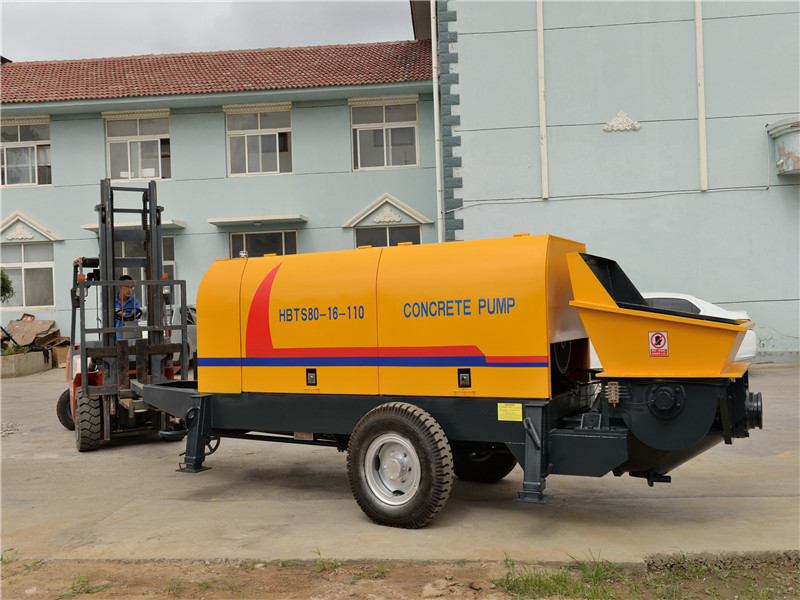

80m3/h electricity concrete pump

Model:

HBTS80-16-110

Max. Theor.Concrete Output:

80 M³/h

Concrete Pumping Pressure:

13 Mpa

Hydraulic system:

opened type

Concrete Cylinder Spec.(bore*stroke):

Ф200*1600 mm

Hopper Capacity:

0.7m3

Diameter of Pump exit

180mm

Hopper height:

1400mm

Theo.Max.Delivery Distance(Vertical/Horizontal) :

200 /1000 m

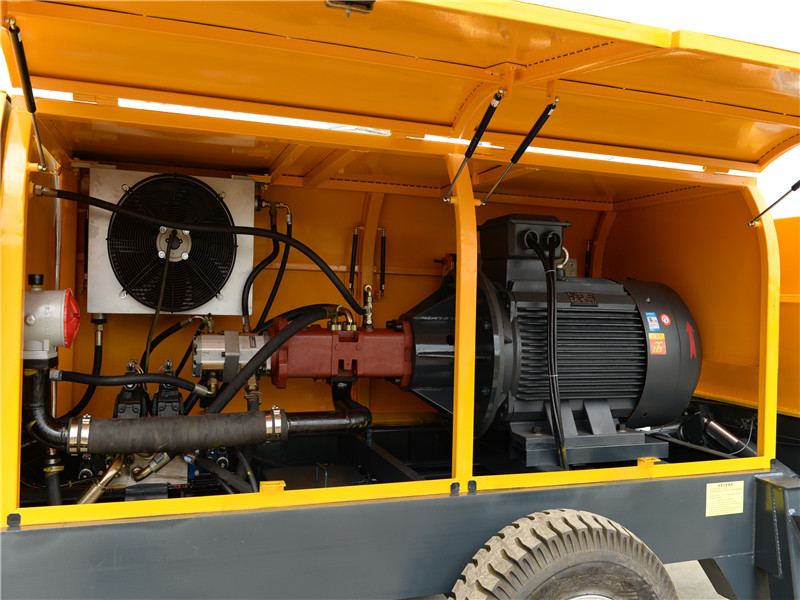

Electromotor power:

110Kw

Electromotor Model

Y350M-4

Rated Rotate Speed:

1480r/min

Hydraulic Circuit form

Opened-circuit

Hydraulic oil tank capacity:

580 L

Fuel tank capacity:

250L

Concrete slump:

120-230 mm

Overall dimension(LxWXH):

6300X2100X2250mm

Total weight:

6000Kg
