90m3/h HBTS90 electric concrete pump with factory price
1. Specification of 90m3/h electricity concrete pump
Items | Units | Parameters | |
HBTS90-16-75 | |||
Performance of the Whole Machine | Max. theo. concrete output (low pressure/high pressure) | m3/h | 84/45 |
Main Hydraulic Pump | Korean Kawasaki | ||
Max. concrete pumping pressure (high pressure/low pressure) | MPa | 16/7.6 | |
Distribution valve type | S Valve | ||
Concrete conveying cylinder bore * stroke | mm | Ф200×1800 | |
Hopper capacity | L | 800 | |
Feeding Height | mm | 1400 | |
Outlet diameter | mm | Ф180 | |
Power system | Motor | Chinese brand | |
Motor power | kW | 75 | |
Hydraulic system | Hydraulic circuit form | Open circuit | |
Pumping system oil pressure | MPa | 32 | |
Mixing system pressure | MPa | 6-8 | |
Capacity of oil tank | L | 370 | |
Max Conveying Distance (Vertically/Horizontally) | m | 200/1200 | |
Other parameters | Max. aggregate diameter | mm | 40-50mm |
Inner diameter of delivering pipe | mm | Ф125 | |
Outline Dimensions: length*width*height | mm | 5800*2000*1750 | |
Total weight | kg | 4500 | |

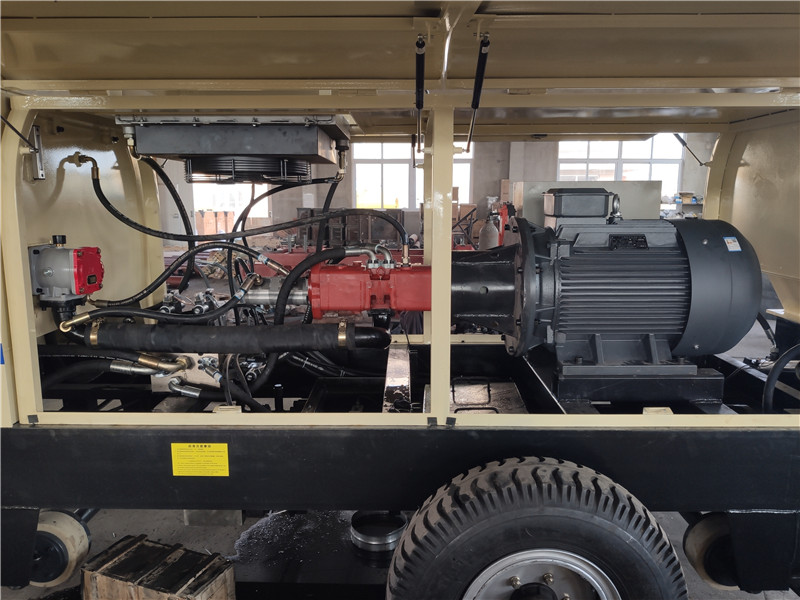

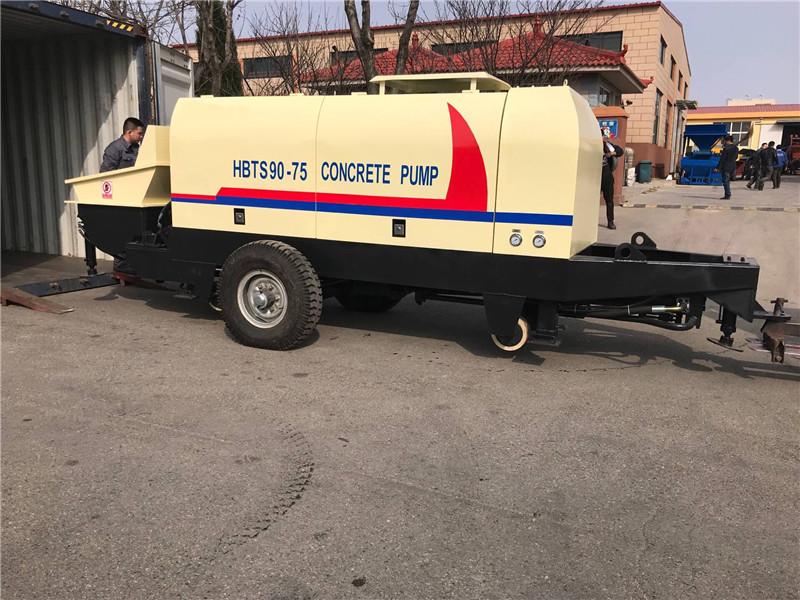

2. Pictures of 90m3/h electricity concrete pump
