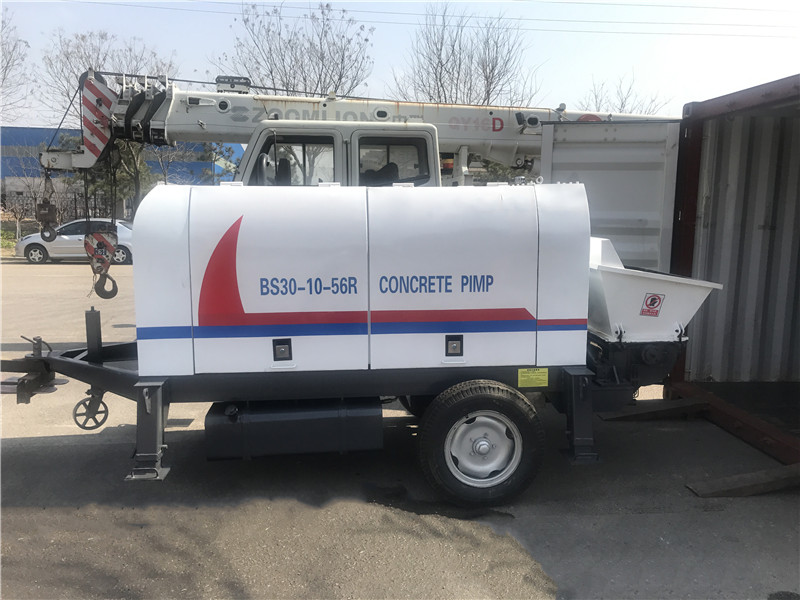

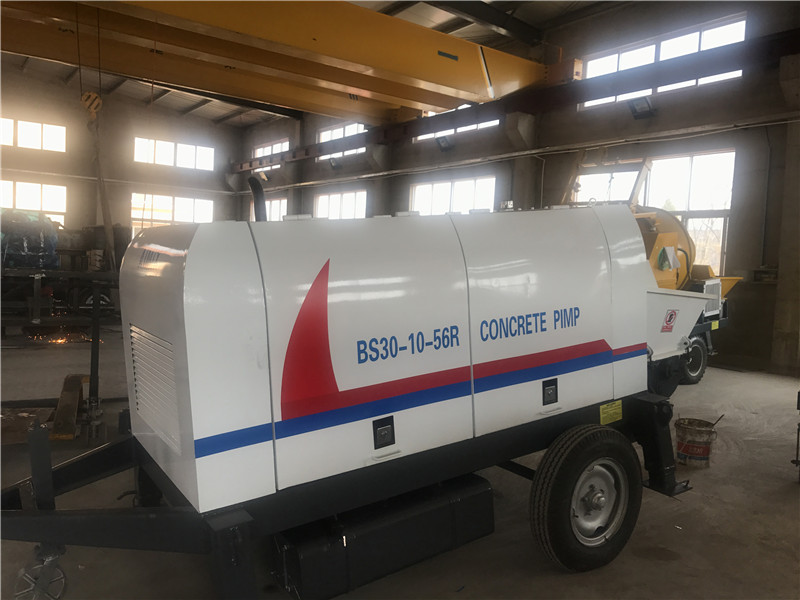

30m3/h concrete line pump

Items

Units

Parameters

HBTS30R

Performance of the Whole Machine

Max. theoretical concrete output

m3/h

30

Main Hydraulic Pump

JINDA 71

Max. concrete pumping pressure

Mpa

10

Distribution valve type

S Valve

Concrete conveying cylinder bore * stroke

mm

Ф140×1200

Hopper capacity

L

400

Feeding Height

mm

1200

Outlet diameter

mm

Ф100

Power system

Diesel Engine Model

Delier 4100

Engine Power

kw

56kw

Rated rotate speed

r/min

1800

Hydraulic system

Hydraulic circuit form

Open circuit

Pumping system oil pressure

Mpa

26

Mixing system pressure

Mpa

6-8

Capacity of oil tank

L

260

Max. concrete delivering Distance (Vertically/Horizontally)

m

120/500

Other parameters

Max. aggregate diameter

mm

20mm

Inner diameter of delivering pipe

mm

Ф100

Outline Dimensions: length*width*height

mm

4500*1750*1600

Total weight

kg

3500
