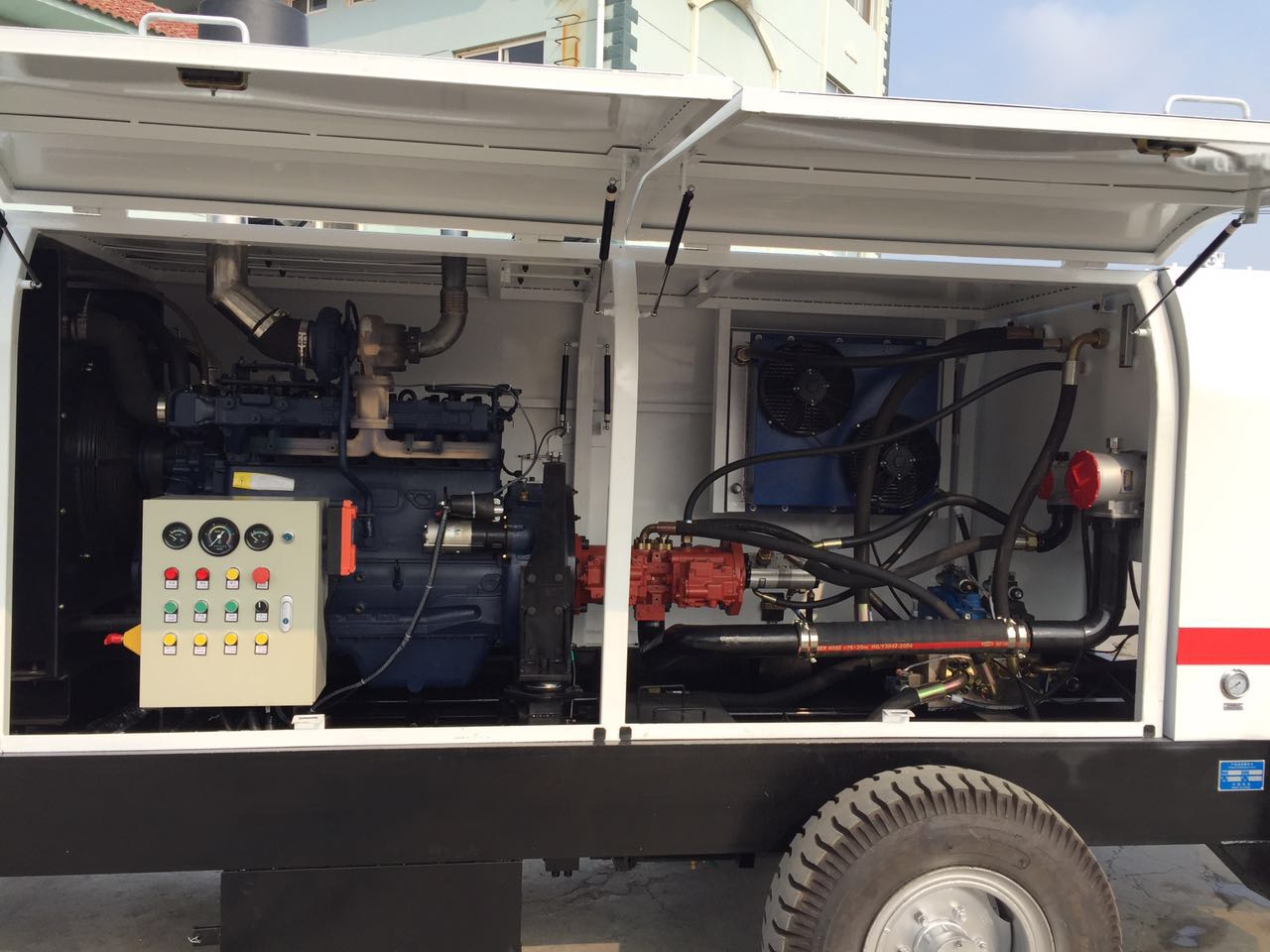

90m3/h diesel concrete pump

Items

Units

Parameters

HBTS90-16-176R

Performance of the Whole Machine

Max. theo. concrete output (low pressure/high pressure)

m3/h

84/45

Main Hydraulic Pump

Korean Kawasaki

Max. concrete pumping pressure (high pressure/low pressure)

MPa

16/7.6

Distribution valve type

S Valve

Concrete conveying cylinder bore * stroke

mm

Ф200×1800

Hopper capacity

L

800

Feeding Height

mm

1400

Outlet diameter

mm

Ф180

Power system

Diesel engine model

Weichai

Engine power

kW

176

Rated rotate speed

r/min

2000

Hydraulic system

Hydraulic circuit form

Open circuit

Pumping system oil pressure

MPa

32

Mixing system pressure

MPa

6-8

Capacity of oil tank

L

370

Max Conveying Distance (Vertically/Horizontally)

m

200/1200

Other parameters

Max. aggregate diameter

mm

40-50mm

Inner diameter of delivering pipe

mm

Ф125

Outline Dimensions: length*width*height

mm

5800*2000*1750

Total weight

kg

6500
