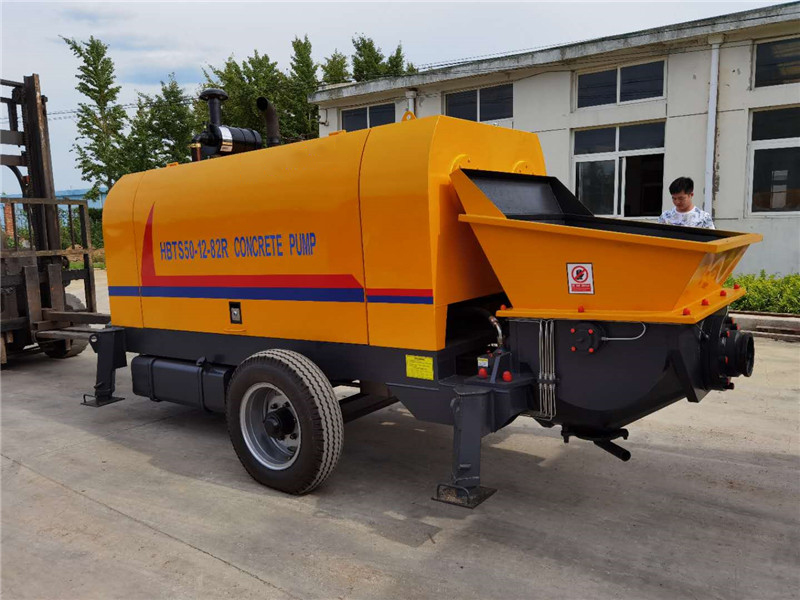

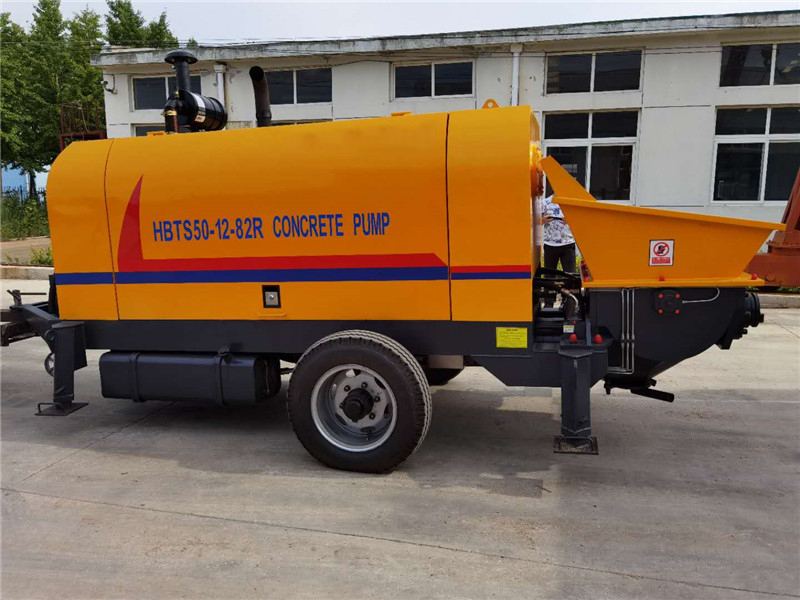

50m3/h diesel trailer concrete pump

Items

Units

Parameters

HBTS50-12-82R

Performance of the Whole Machine

Max. theoretical concrete output (low pressure/high pressure)

m3/h

60/36

Main Hydraulic Pump

Korean Kawasaki K3V112

Max.concrete pumping pressure (high pressure/low pressure)

Mpa

11.7/7

Distribution valve type

S Valve

Concrete conveying cylinder bore * stroke

mm

Ф180*1300

Hopper capacity

L

500

Feeding Height

mm

1300

Outlet diameter

mm

Ф150

Power system

Diesel engine brand

Weichai

Engine power

kW

82

Rated rotate speed

r/min

2100

Hydraulic system

Hydraulic circuit form

Open circuit

Pumping system oil pressure

Mpa

31.5

Mixing system pressure

Mpa

6-8

Capacity of oil tank

L

370

Theoretical Max. concrete deliveringdistance (Vertically/Horizontally)

m

160/600

Otherparameters

Max. aggregate diameter

mm

30-40mm

Inner diameter of delivering pipe

mm

Ф125

Outline Dimensions: length*width*height

mm

5000*2100*2260mm

Total weight

kg

4600
