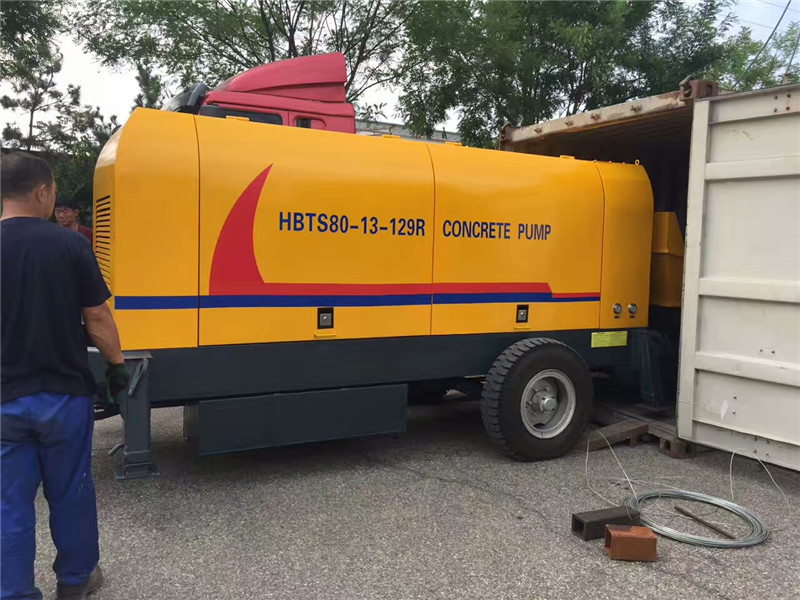

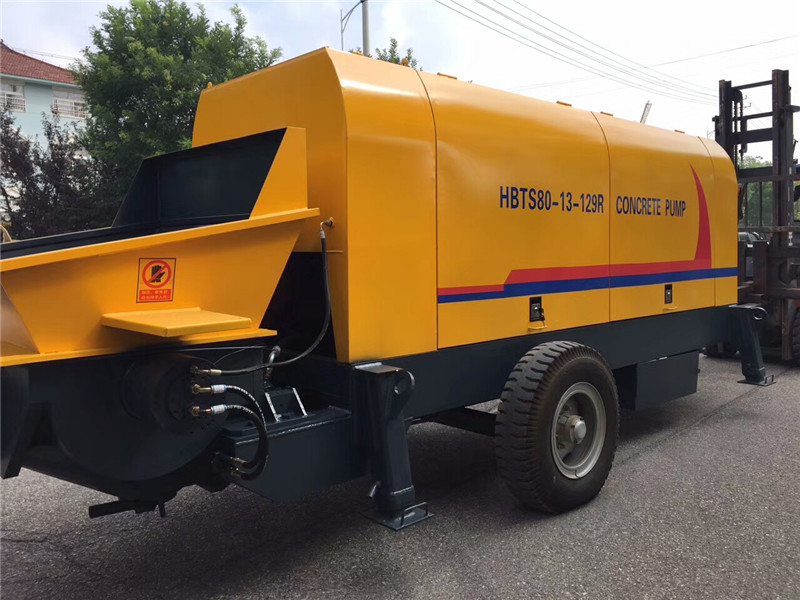

80m3/h diesel concrete pump

Item

Units

Parameters

HBTS80-13-129R

Whole performance of machine

Max. theo. concrete output (L/H)

m3/h

84/45

Max. concrete pumping pressure (H/L)

MPa

13/7.6

Distribution valve type

S Valve

Concrete cylinder diameter*stroke

mm

Ф200×1650

Hopper capacity*feeding height

L*mm

800×1400

Outlet diameter

mm

Ф180

Power system

Diesel engine model

Weichai

Electrical engineering power

kw

129

Rotate speed

r/min

2200

Hydraulic system

Circuit type

Open circuit

Pumping system pressure

MPa

32

Mixing system pressure

MPa

6-8

Capacity of oil tank

L

580

The biggest transportation is away from vertical/ level

m

190/800

Other parameters

Max. aggregate diameter

mm

River stone: 50；crushed stone: 40

Inside diameter of delivering pipe

mm

Ф125

Dimensions (length*width*height)

mm

6000×2160×2600

Total weight

kg

6480
