HBTS60 60m3/h diesel concrete pump with factory price
1. Specification of 60m3/h diesel concrete pump
Items | Units | Parameters | |
HBTS60-13-129R | |||
Whole performance of machine | Max. theo. concrete output | m3/h | 84/45 |
Max. concrete pumping pressure (H. /L.) | MPa | 13/7 | |
Distribution valve type | S Valve | ||
Concrete cylinder diameter* stroke | mm | Ф200×1650 | |
Hopper capacity*feeding height | L*mm | 800×1400 | |
Outlet diameter | mm | Ф180 | |
Power system | Diesel engine | Weichai | |
Engine power | kW | 129 | |
Hydraulic system | Circuit type | Open circuit | |
Pumping system pressure | MPa | 32 | |
Mixing system pressure | MPa | 6-8 | |
Capacity of oil tank | L | 370 | |
The biggest transportation is away from vertically (/Level) | m | 180/1000 | |
Other parameters | Max. aggregate diameter | mm | 40 |
Inside diameter of delivering pipe | mm | Ф125 | |
Dimensions：length*width*height | mm | 5800*2000*1750 | |
Total weight | kg | 4500 | |

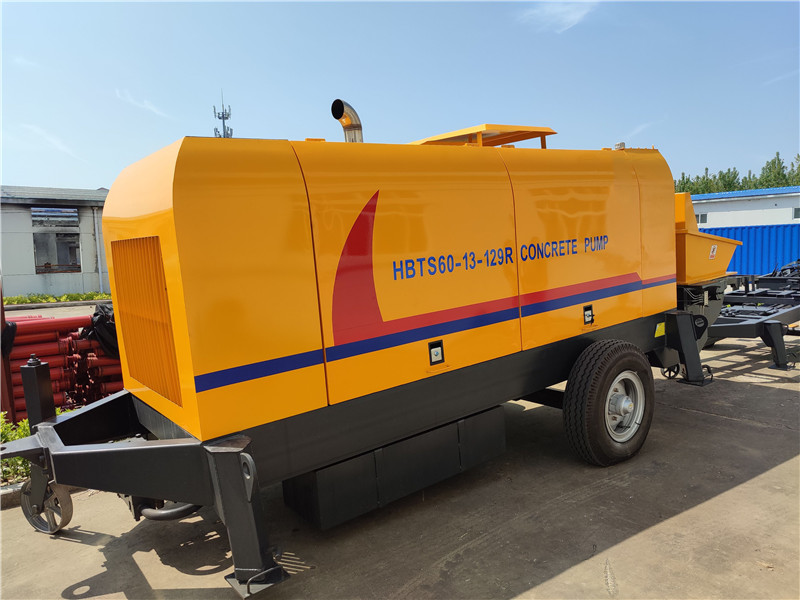

2. Pictures of 60m3/h diesel concrete pump
3. International cases of 60m3/h diesel concrete pump

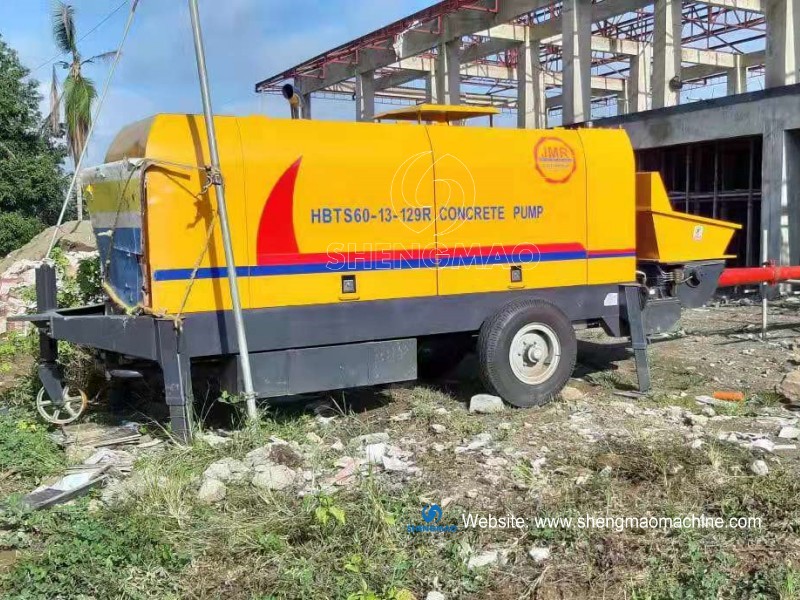

1) 60m3/h diesel concrete pump to Philippines
