JS750 concrete mixer
JS750
JS750 twin-shaft concrete mixer is usually used for 35m3/h concrete batching plant
Delivery
EXW,FOB,DAF,CIF,CIP
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
China
Stock Time
10Day
Quantity:
US $8500.00 - US $10000.00 / set
1. Specification of JS750 concrete mixer
| item | unit | parameter | |
| Charging capacity | L | 1200 | |
| Discharging capacity | L | 750 | |
| Max. productivity | m3/h | 35 | |
| Max. aggregate size (river stone/crushed stone) | mm | 80/60 | |
| Hopper lifting speed | m/min | 21.9 | |
| Overall size (L*W*H) | mm | 3100*3500*5620 | |
| Total weight | kg | 6100 | |
| Discharging height | mm | 3800 | |
| Mixing blade | Qty. | Piece | 2*7 |
| Rotating speed | r/min | 30.5 | |
| Mixing motor | Model | Y200L-4 | |
| Power | kw | 30 | |
| lifting motor | Model | YEZ132M-4-B5 | |
| Power | kw | 7.5 | |
| Water pump motor | Model | 65DWB-35-5 | |
| Power | kw | 1.1 | |
2. Pictures of JS750 concrete mixer

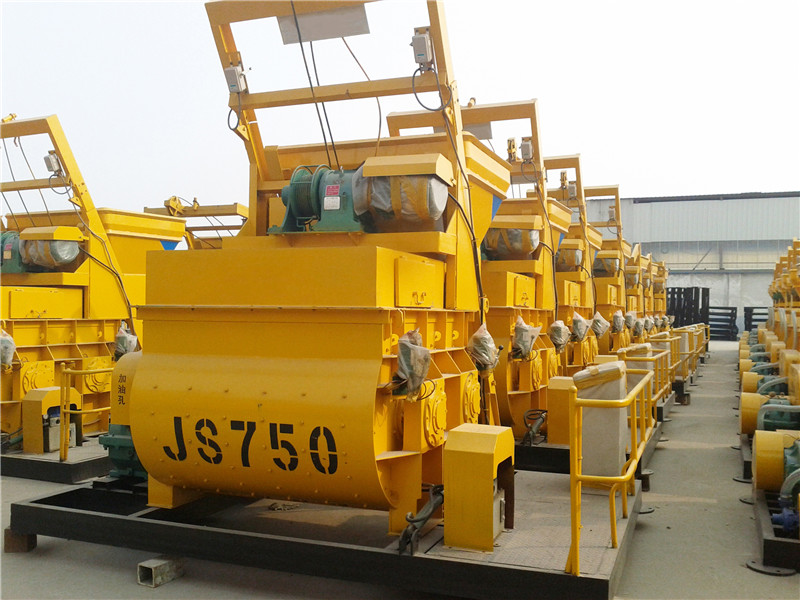

1) External picture

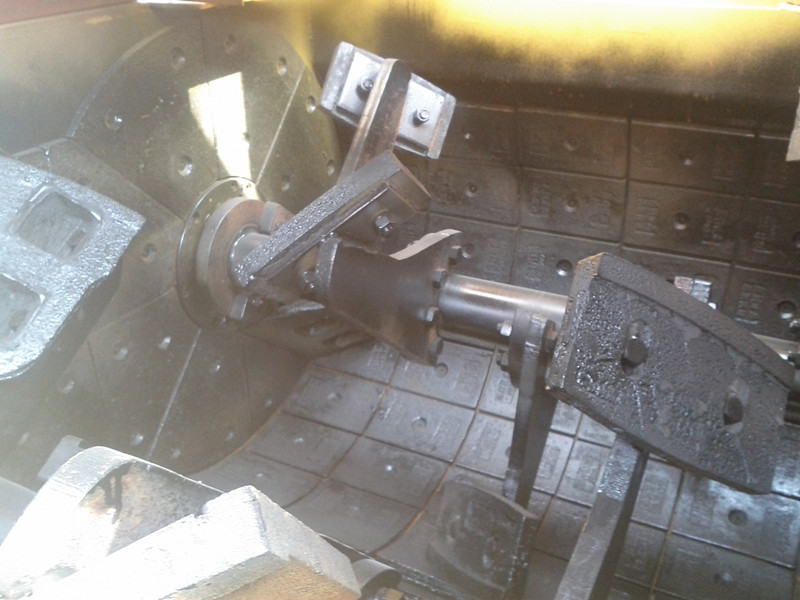

2) Internal picture
