JS3000 concrete mixer
JS3000
Delivery
EXW,FOB,DAF,CIF,CIP
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
20Day
Quantity:
US $31000.00 - US $35000.00 / set
1. Specification of JS3000 concrete mixer
ChargingCapacity | 4800L |
Discharging Capacity | 3000L |
Productivity | 180m3/h |
Working Cycle | 60s |
Discharging Height | 4200mm |
Rotating Speed of Mixing Shaft | 21.37r/min |
Mixing Blades Quantity | 40 |
Mixing Shaft | Φ140±0.2 L=2889.5 |
Lining Board Quantity | 202 |
Reducer | JS3000-CD i=26.8 |
Motor | Y280S-4 75kw*2 1480r/min |
Hydraulic Pump | 2.2kw |
Electric lubricating pump | 0.09kw |
'O’Shape Sealing Ring | Φ132*3.55 |
Total Weight | 16000kg |
Overall Dimension (L*W*H) | 4300*3000*2600mm |

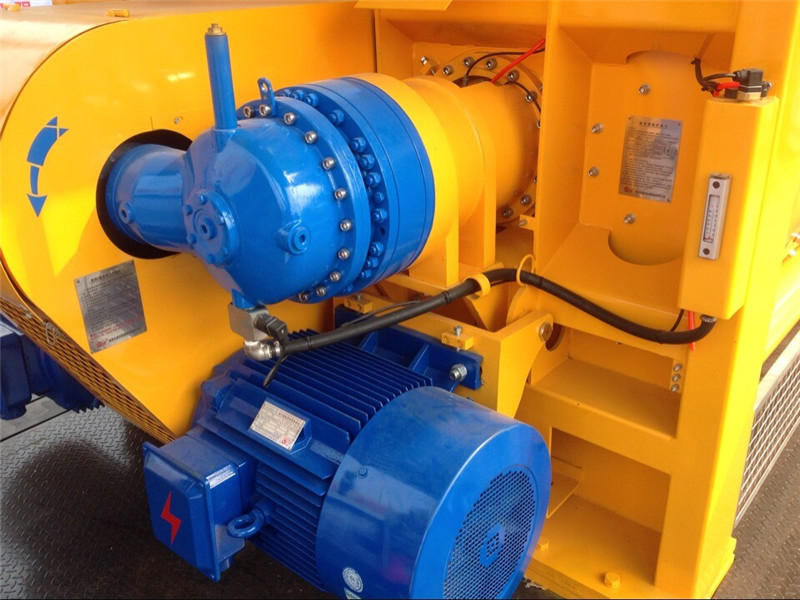

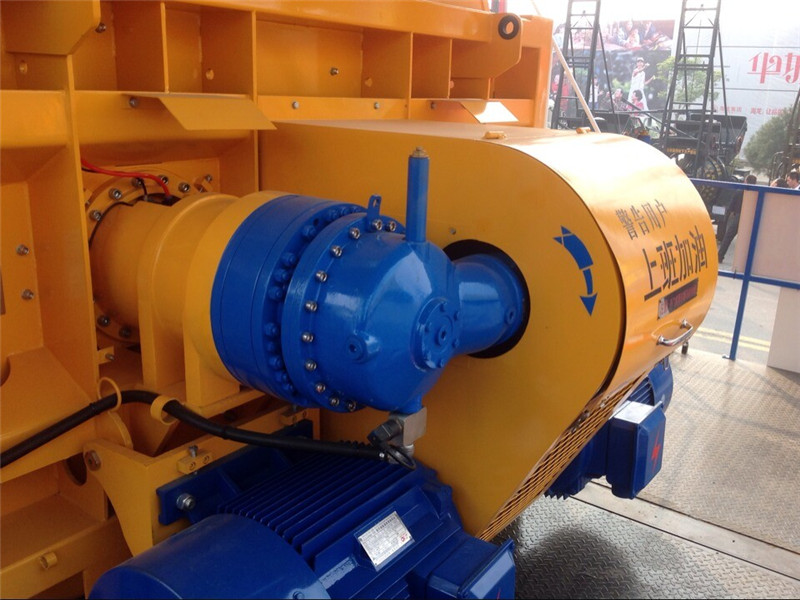

2. Picture of JS3000 concrete mixer
