JBS40R diesel concrete mixer pump (drum mixer)
1. Specification of JBS40R diesel concrete mixer pump
General performance | Pump Max. theoretical. concrete output | M3/h | 40 |
Feeding capacity of mixer | M3 | 0.56 | |
Discharging capacity of mixer | M3 | 0.35 | |
Max. concrete pumping pressure | Mpa | 10 | |
Distribution valve type | S Valve | ||
Concrete cylinder diameter stroke | mm | Ф180×1000 | |
Hopper capacity | L | 600L | |
Outlet diameter | mm | Ф125 | |
Power system | Diesel engine model | -- | weichai |
Electrical engineering power | kW | 82KW | |
Rotate speed | r/min | 2300 | |
Hydraulic system | Circuit type | Open circuit | |
Pumping system pressure | MPa | 31.5 | |
Mixing system pressure | MPa | 6 | |
Capacity of oil tank | L | 350 | |
The max. Delivery distance (vertical/horizontal) | m | 150/600 | |
Other parameters | Mixer capacity | M3/h | 10-14m3/h |
Max. aggregate diameter | mm | 40 | |
Inside diameter of delivering pipe | mm | Ф125 | |
Dimensions：length*width*height | mm | 6900x2300x3150 | |
Total weight | kg | 8500kg | |
Tire | Pcs | 4 | |
2. Main parts brand of JBS40R diesel concrete mixer pump
No. | Items | Brands/Configuration |
1 | Hydraulic Hose | Manuli,Italy |
2 | Seal | Parket,USA |
3 | Electronic control system | Schneider, France |
4 | PLC unit | OMRON Japan |
5 | Proximity switch | Imported from Germany |
6 | Intermediate relay | OMRON Japan |
7 | Control mode | Remote control and button control |
8 | valve group | Beijing Huade |
9 | Button | Schneider, France |
10 | Lubrication system | full automatic hydraulic |
11 | Diesel engine | Weichai |
12 | Hydraulic Pump | Korean Kawasaki |

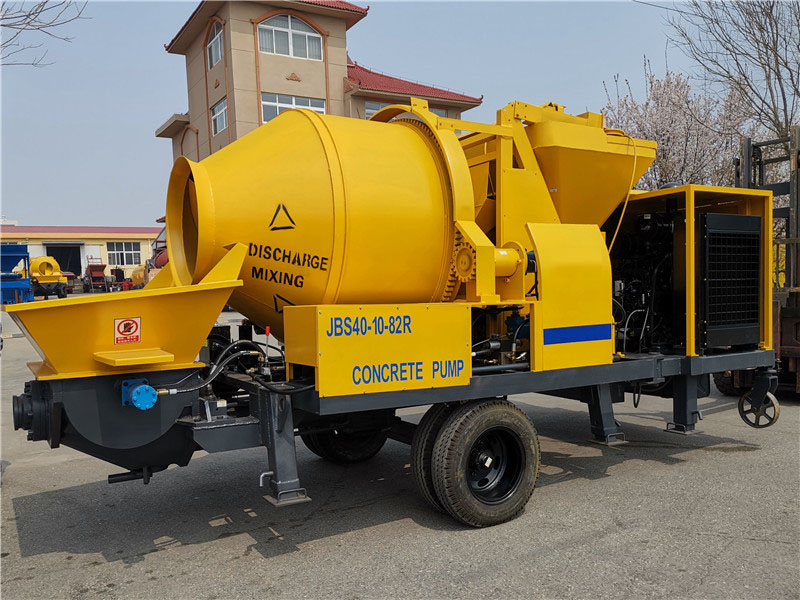

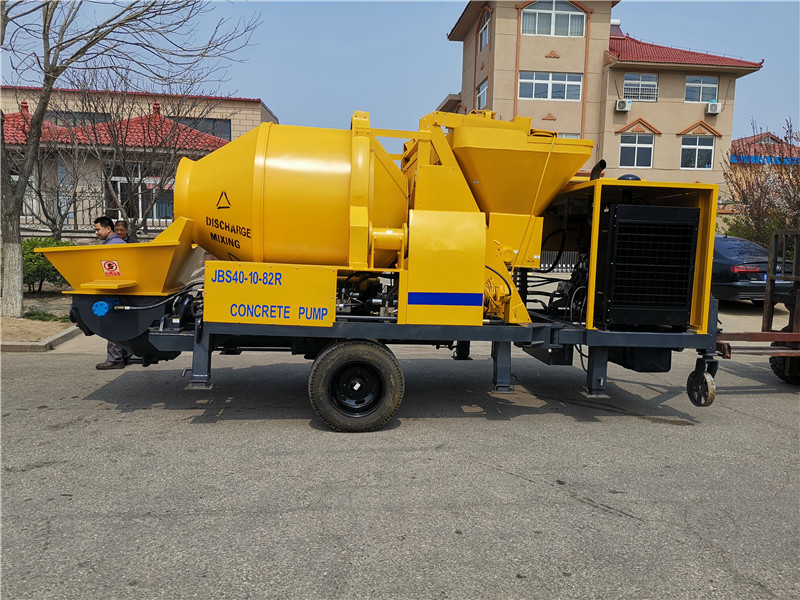

3. More Pictures of JBS40R diesel concrete mixer pump
