LHB40R diesel concrete pump with planetary mixer
1. Specification of LHB40R diesel concrete pump with planetary mixer
Items | Units | Parameters | |
Performance of the Whole Machine | Max. Capacity of concrete mixer | m3/h | 25 |
Max. delivery capacity of concrete pump | m3/h | 40 | |
Main Hydraulic Pump | Korean Kawasaki K3V112 | ||
Main Hydraulic Pump Output Volume | Ml/r | 112 | |
Mixer Rated Input Volume | m3 | 0.75 | |
Mixer Rated Output Volume | m3 | 1.2 | |
Max. concrete pumping pressure | MPa | 9 | |
Distribution valve type | S Valve | ||
Main oil cylinder bore * stroke | mm | Φ100/70×1000 | |
Concrete conveying cylinder bore * stroke | mm | Ф180×1000 | |
Hopper capacity | L | 600 | |
Outlet diameter | mm | Ф150 | |
Power system | Diesel engine model | Weichai | |
Engine power | kW | 82 | |
Rated rotate speed | r/min | 2200 | |
Hydraulic system | Hydraulic circuit form | Open circuit | |
Pumping system oil pressure | MPa | 31.5 | |
Distribution system pressure | MPa | 14 | |
Mixing system pressure | MPa | 6 | |
Capacity of oil tank | L | 350 | |
Max Conveying Distance (Vertically/Horizontally) | m | 100/400 | |
Other parameters | Max. aggregate diameter | mm | 40-50mm |
Inner diameter of delivering pipe | mm | Ф125 | |
Outline Dimensions: length*width*height | mm | 3800x2200x2100 | |
Total weight | kg | 5600 | |

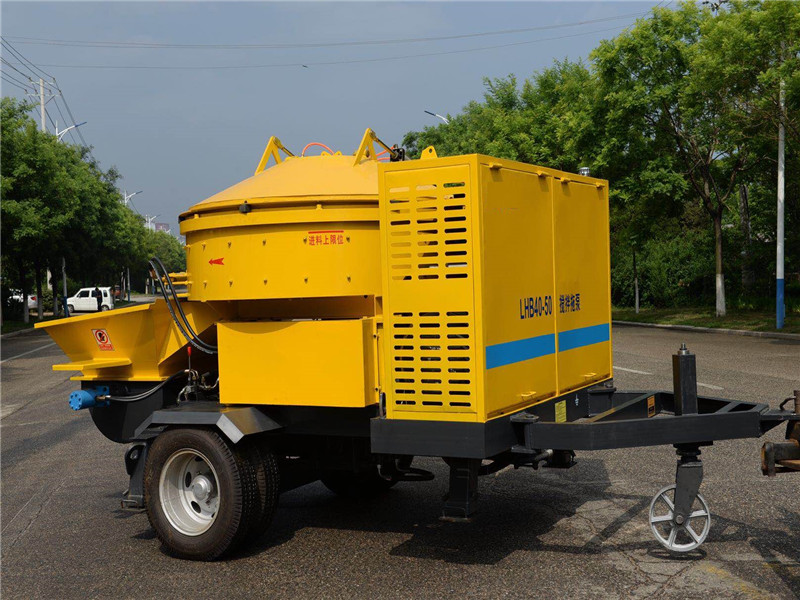

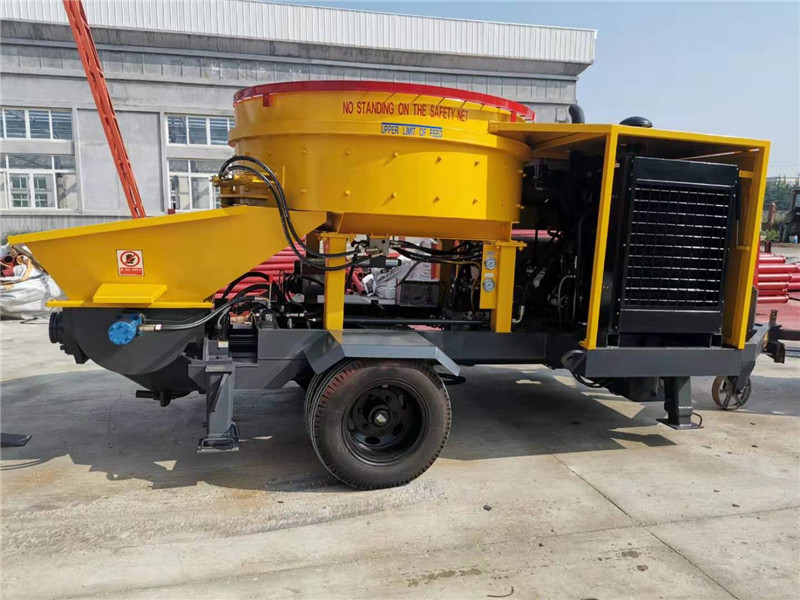

2. More pictures of LHB40R diesel concrete pump with planetary mixer
