SMCP60 Truck-Mounted Pump

SMCP60D

minimum order

1 set

Supply Ability

20 SETset / Month

Country of Origin

China

Stock Time

30Day

Quantity:

US $50000.00 - US $60000.00 / set

Contact Now

add to cart

1. Specification of 60m3/h truck-mounted pump

Items		Units	Parameters
Items		Units	SMCP60-13-129R
Whole performance of machine	Max. theo. concrete output	m3/h	84/45
	Max. concrete pumping pressure (H. /L.)	MPa	13/7
	Distribution valve type		S Valve
	Concrete cylinder diameter* stroke	mm	Ф200×1650
	Hopper capacity*feeding height	L*mm	800×1400
	Outlet diameter	mm	Ф180
Power system	Diesel engine		Weichai
Power system	Engine power	kW	129
Hydraulic system	Circuit type		Open circuit
	Pumping system pressure	MPa	32
	Mixing system pressure	MPa	6-8
	Capacity of oil tank	L	370
The biggest transportation is away from vertically (/Level)		m	180/1000
Other parameters	Max. aggregate diameter	mm	40
Other parameters	Inside diameter of delivering pipe	mm	Ф125

specification of chassis

Standard
Drive Axle	ST16 Manual-Adjusting Arm Single Rear Axle (Drum)
Suspension	Front/Rear Multi-Leaf Spring (10/9+6)
Frame	Double-Layer Frame (8+5/300)
Engine	WP10.300E22 Engine
Transmission	HW19710 Transmission
Cab	HW76 New Front Design Cab
Tires	295/80R22.5 (Mixed Pattern/18PR)
Bumper	High-Mounted Bumper (Full Metal)
Front Axle	VGD71 Front Axle (Drum)
Steering Gear	Right-Side Steering Gear
ABS Control System	ABS (4S/4M)
Optional
Fire Extinguisher	-
Headlight Guard	Metal Bumper w/ Headlight & Taillight Guards
Engine Skid Plate	No
Exhaust System	Standard Exhaust System
Engine Option	No
Charge Air Cooler Guard	Charge Air Cooler Guard
Rear Tow Hook	Rear Tow Hook
Back-up Alarm	Back-up Alarm
Fuel Tank	400L Fuel Tank
Under-Vehicle Start-Stop Switch	Under-Vehicle Start-Stop Switch
Wheels	Standard Wheels

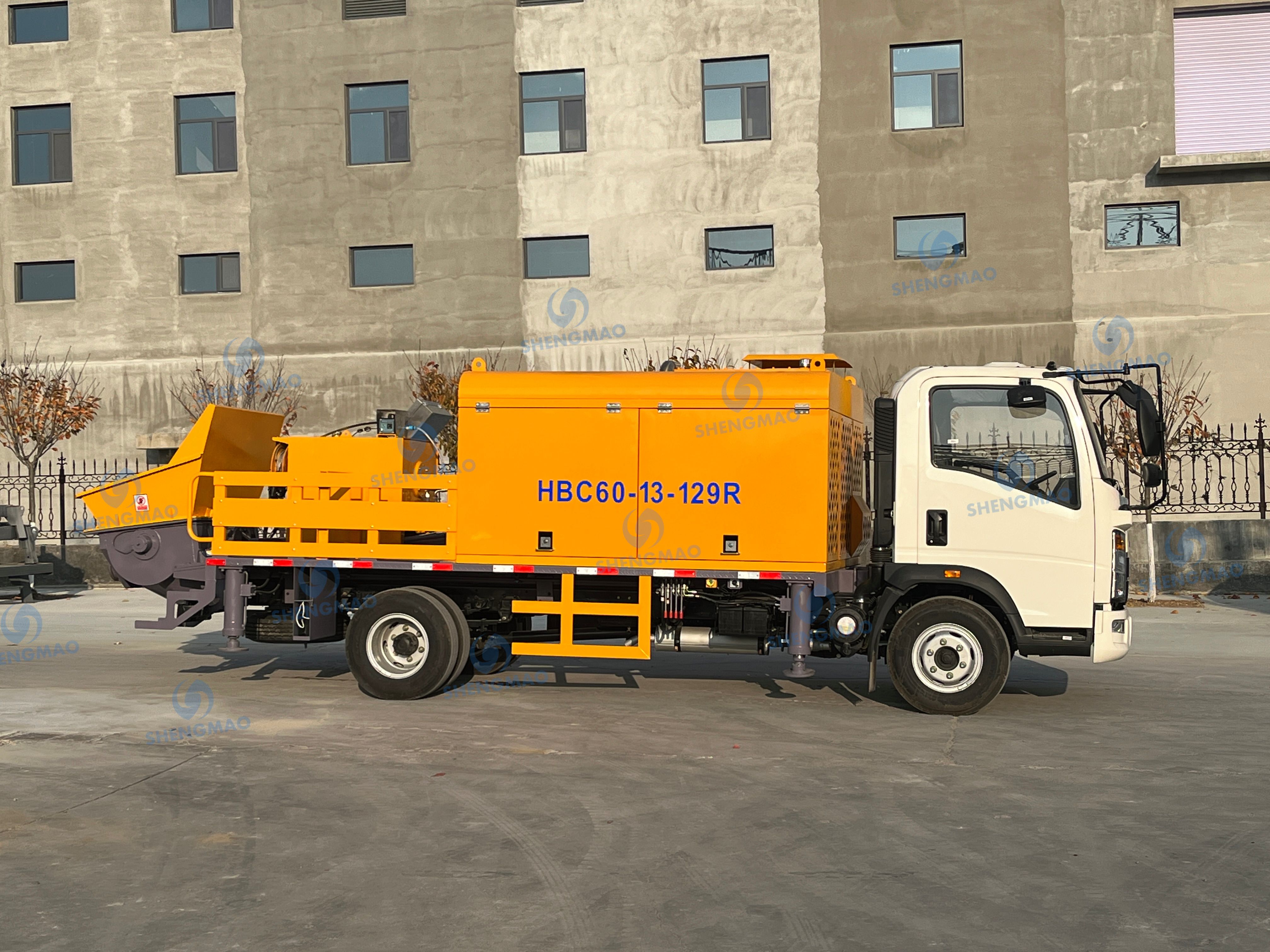

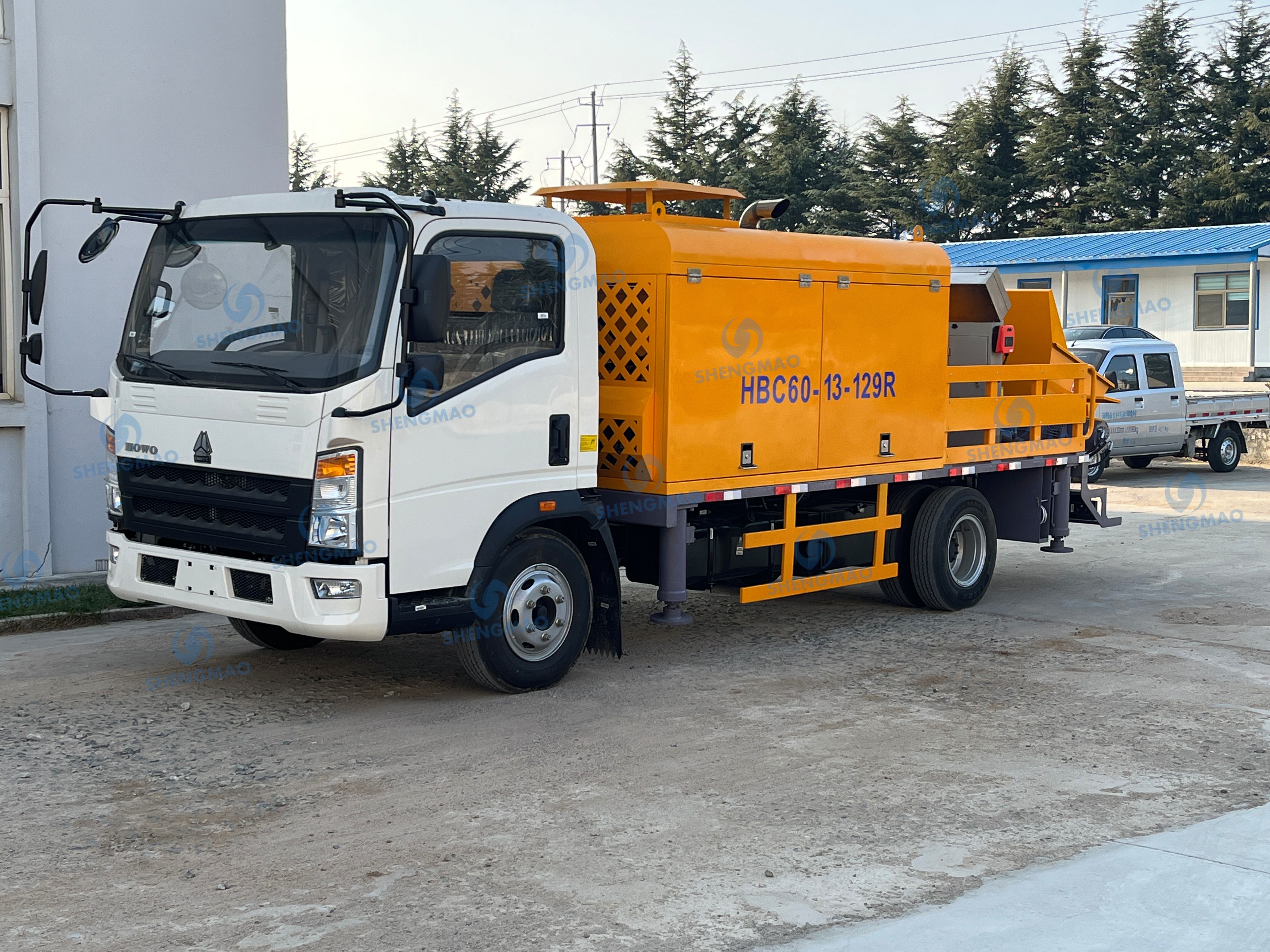

2. Pictures of 60m3/h diesel concrete pump

3. Video of 60m3/h diesel concrete pump
