PCM750 planetary concrete mixer
PCM750
Delivery
EXW,FOB,DAF,CIF,CIP
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
China
Stock Time
7Day
Quantity:
US $19500.00 - US $24500.00
/ set
1. Specification of PCM750 planetary concrete mixer
Items | PCM750 |
Discharging Volume（L） | 750 |
Feeding Volume（L） | 1125 |
Skip hoist volume (L) | 1200 |
Diameter of Mixing Drum (mm) | 2196 |
Mixing power (KW) | 30 |
Discharge hydraulic power (KW) | 2.2 |
Planet /mixing blade (NR) | 1/3 |
Side-scraper (NR) | 1 |
Discharging scraper (NR) | 1 |
Weight (Kg) | 3500 |
Overall Dimension (L*W*H) (mm) | 2520×2280×2150 |
Feeding Hopper and platform | Optional |

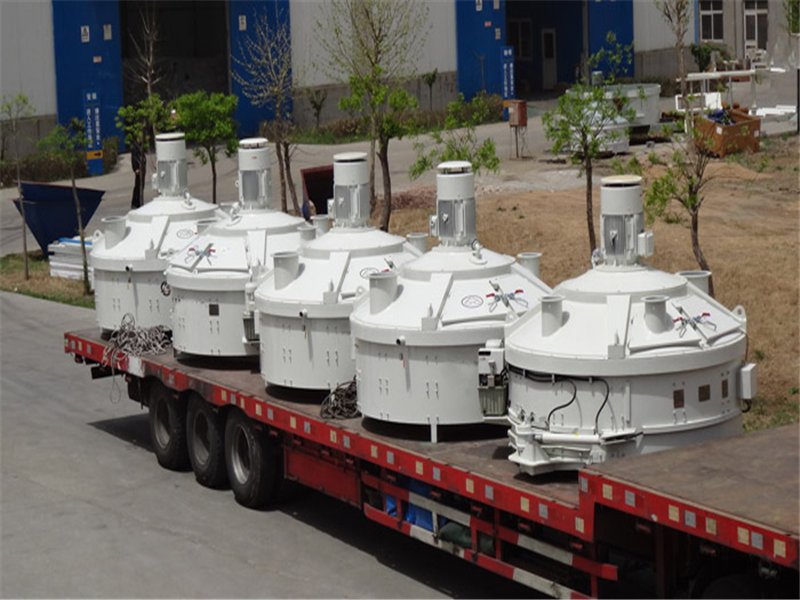

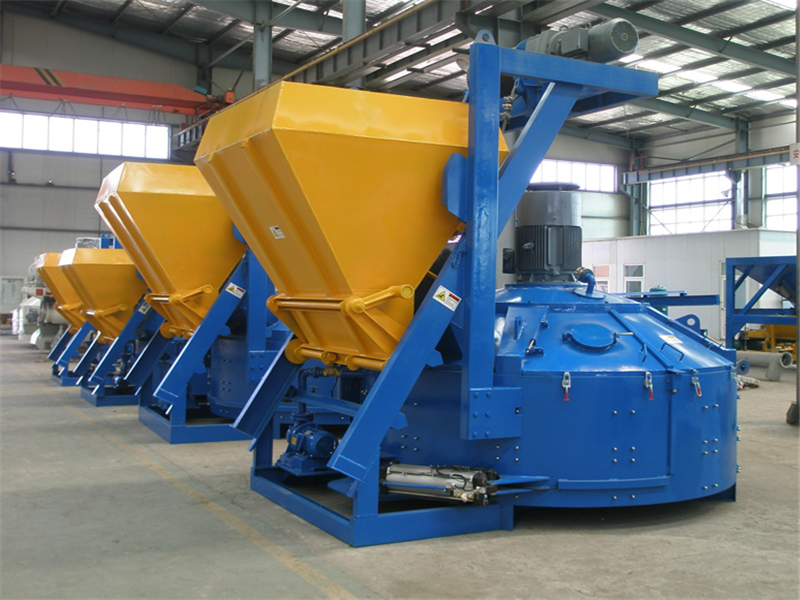

2. Pictures of PCM750 planetary concrete mixer
