JDC500 single shaft mixer
JDC500
Delivery
EXW,FOB,DAF,CIF,CIP
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
China
Stock Time
10Day
Quantity:
US $7100.00 - US $8100.00 / set
1. Specification of JDC500 single shaft mixer
| Model | JDC500 |
| Feeding capacity | 800L |
| Discharging capacity | 500L |
| Productivity | 20m3/h |
| Max. aggregate size | 60mm |
| Hopper lifting speed | 34m/min |
| Mixing motor model | Y180M-4 |
| Mixing motor power | 18.5kw |
| Lifting motor model | YEZ132S-4 |
| Lifting motor power | 5.5kw |
| Water pump model | BL12-16-1.1 |
| Water pump motor power | 1.1kw |
| Water pump flowing rate | 18m3/h |
| Discharging motor model | Y100L-4 |
| Discharging motor power | 2.2kw |
| Water supply mode | Time relay |
| Overall size | 2800mm*2650mm*3250mm |
| Overall weight | 4180kg |

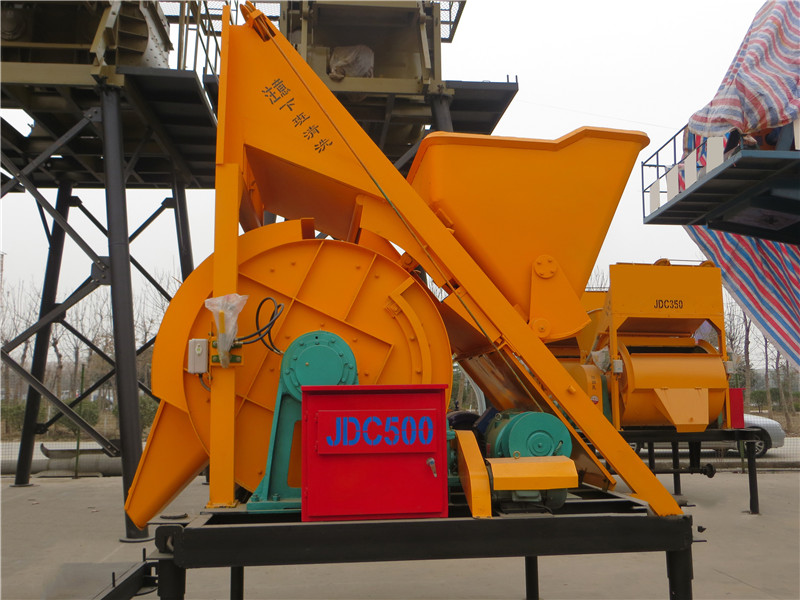

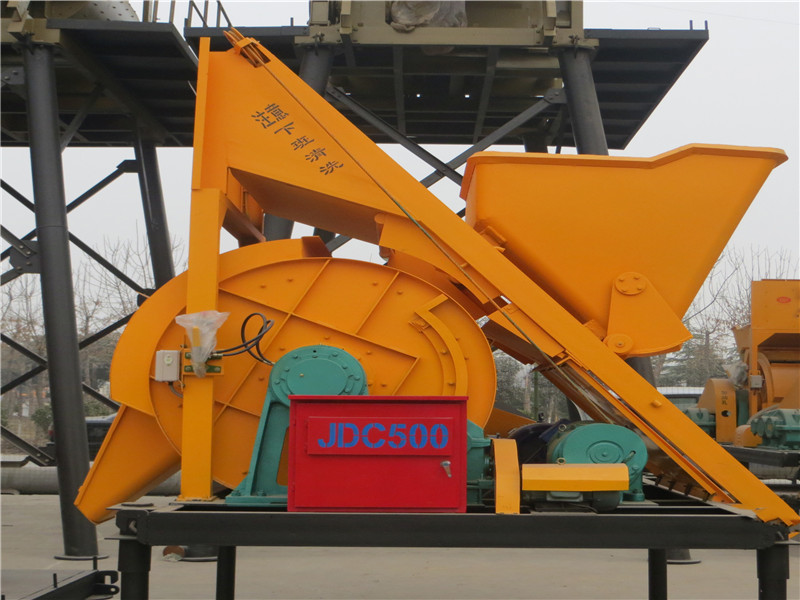

2. Picture of JDC500 single shaft mixer
