HZS75 concrete batching plant
HZS75
Delivery
EXW,FOB,CIF,DAF,CIP
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
15Day
Quantity:
US $45000.00 - US $55000.00 / set
1. Components of HZS75 concrete batching plant
1) JS1500 twin-shaft concrete mixer (SICOMA mixer is optional);
2) PLD2400 aggregate batcher with 3/4 bins;
3) Water, cement and additive scales;
4) 100T cement silo;
5) Screw conveyor;
6) Pneumatic system;
7) Panel or computer control system.
2. Specification of HZS75 concrete batching plant
| Model | HZS75 |
| Production capacity (m3/h) | 75 |
| Concrete mixer | JS1500 twin-shfat mixer |
| Aggregate feeding mode | Belt conveyor |
| Max. Aggregate size (mm) | 80/60 |
| Concrete discharging height (m) | 3.8 |
| Aggregate weighing accuracy (%) | +/-2 |
| Cement weighing accuracy (%) | +/-1 |
| Water weighing accuracy (%) | +/-1 |
| Additive weighing accuracy (%) | +/-1 |
| Control system | Computer control |
| Total power (kw) | 110 |
| Total weight (T) | 25 |

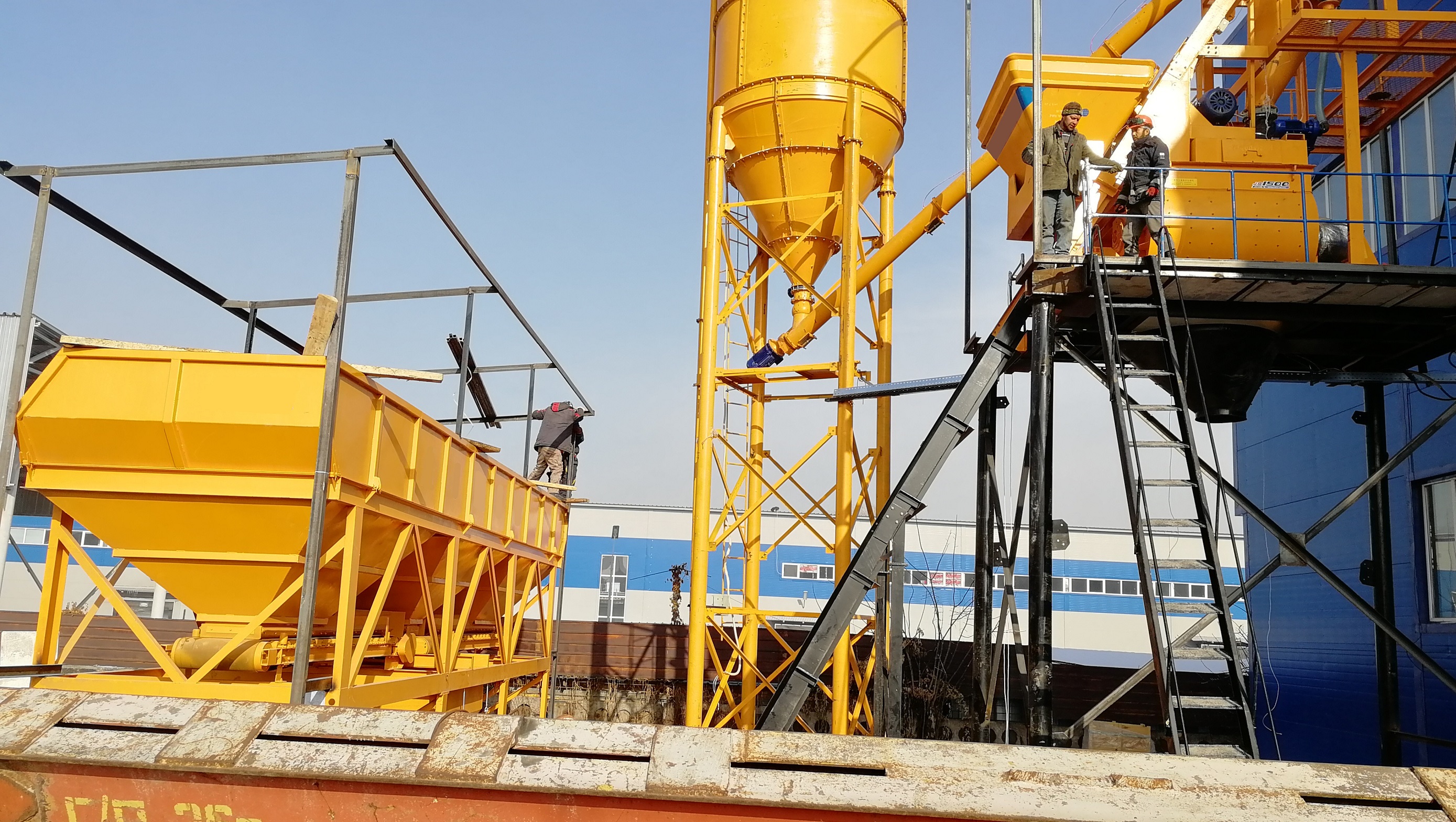

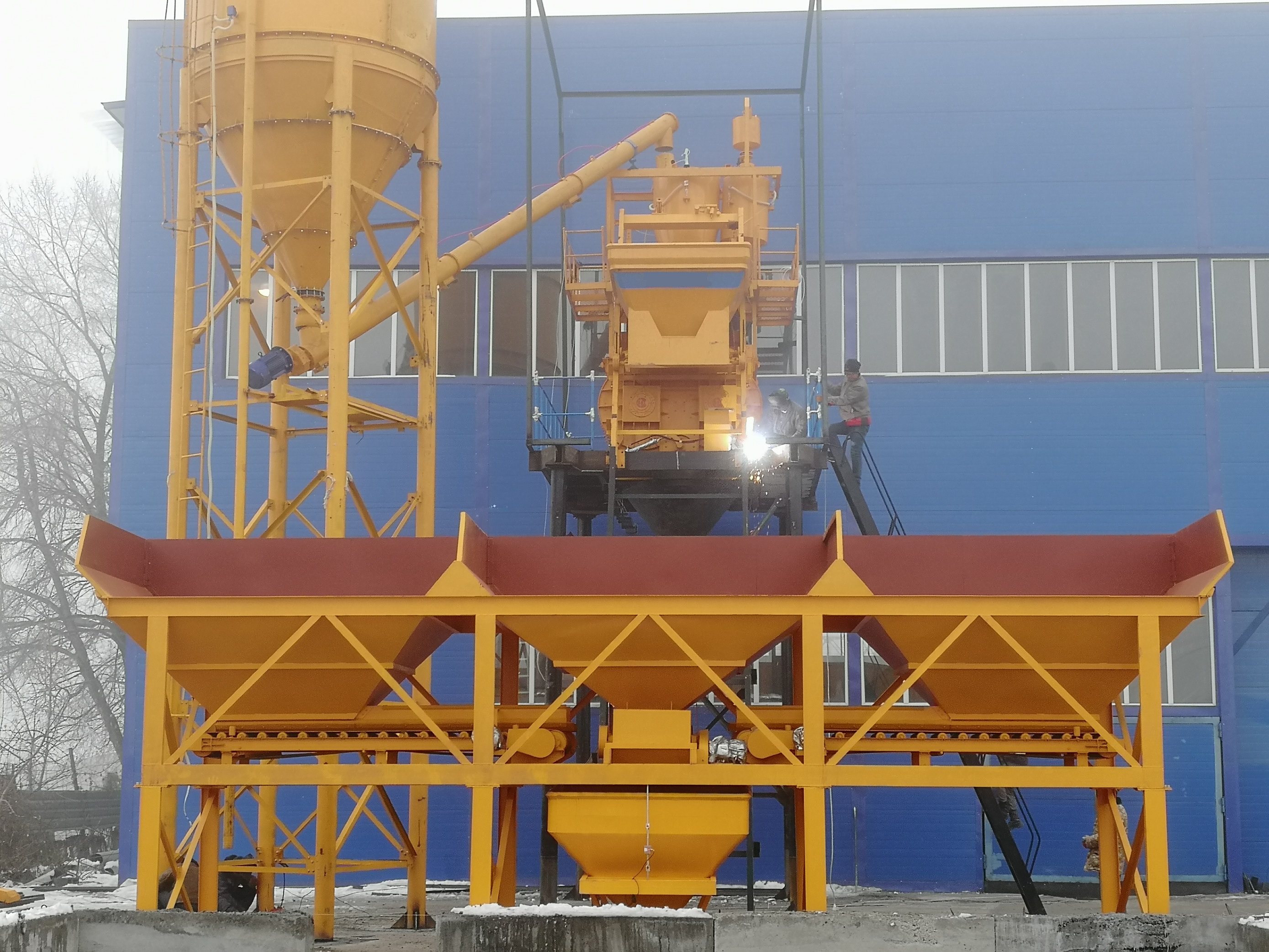

3. Pictures of HZS75 concrete batching plant
